TE ConnectivityDatasheet (PDF)

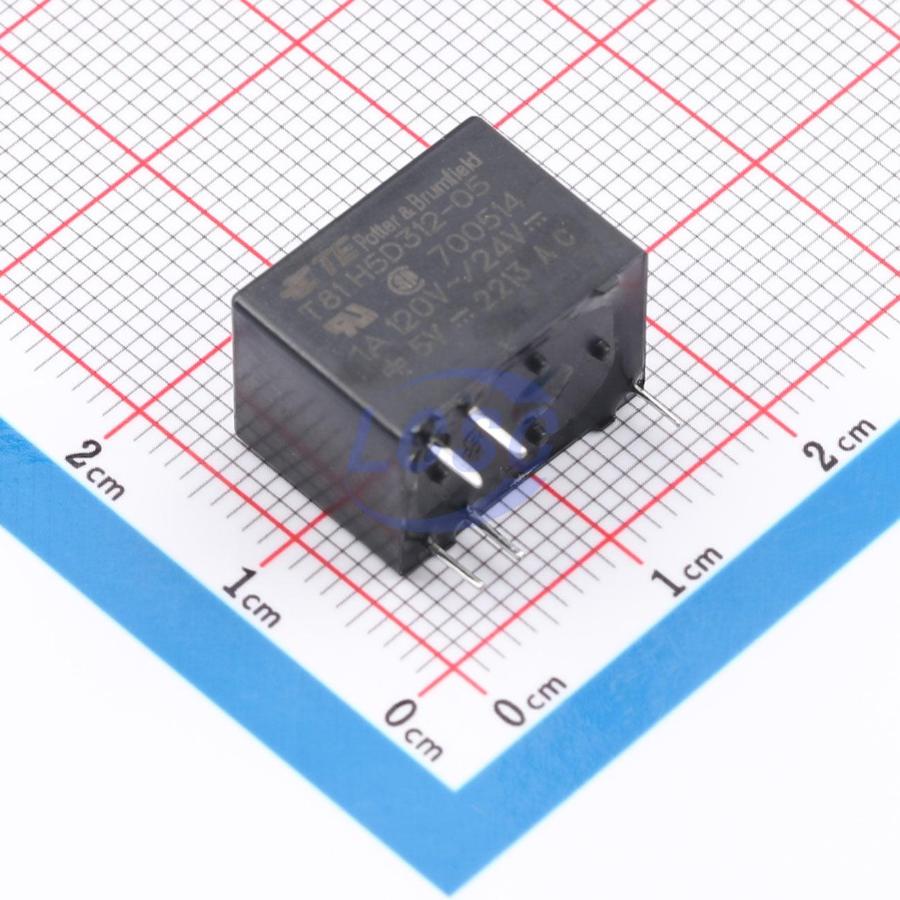

T81H5D312-05
5V 1A One set of changeover: 1C (SPDT) Through Hole,15.9x10.9mm Signal Relays, Up to 2 Amps RoHS
Through Hole,15.9x10.9mmROHS3 CompliantActive
Signal PCB Relay
- Manufacturer
- TE Connectivity
- Manufacturer part #
- T81H5D312-05
- Store part #
- C1561418
- Package / case
- Through Hole,15.9x10.9mm
- Category
- Signal Relays, Up to 2 Amps
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1561418
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹727.62 | ₹727.62 |
| 10+ | ₹710.58 | ₹7,105.80 |
| 30+ | ₹699.09 | ₹20,972.70 |
| 100+ | ₹687.80 | ₹68,780.00 |
1 × ₹727.62
₹727.62
excl. GST
₹858.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
T81H5D312-05
₹727.62 for 1 + GST
Specifications
- Coil Type
- Non-Polarized - Single Coil
- Coil Resistance
- 125Ω
- Coil Voltage
- 5V
- Release Time
- 7ms
- Operate Time
- 10ms
- Operating Temperature
- -30℃~+70℃
- Width
- 10.9mm
- Contact Resistance
- 50mΩ
- Length
- 15.9mm
- Height
- 11.7mm
- Contact Rating
- 1A@24VDC;1A@120VAC
- Switching Voltage(Max)
- 125V@AC;60V@DC
- Switching Current(Max)
- 1A
- Contact Form
- One set of changeover: 1C (SPDT)
- Coil Rated Power
- 200mW
- Contact Material
- AgPd + Gold Plated
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.29 g
Overview
Applications
- Audio communications circuits
- Logic and process control
- Vending machines
- Thermostats
- Office automation
Key features
- Au clad contacts in a 1 Form C (Co) arrangement
- Standard 0.1" (2.54 mm) grid spacing in a DIP configuration
- Standard or sensitive DC coils through 24 volts
- High dielectric strength
- Wash tight case
- Quiet operation for security applications
