TOSHIBADatasheet (PDF)

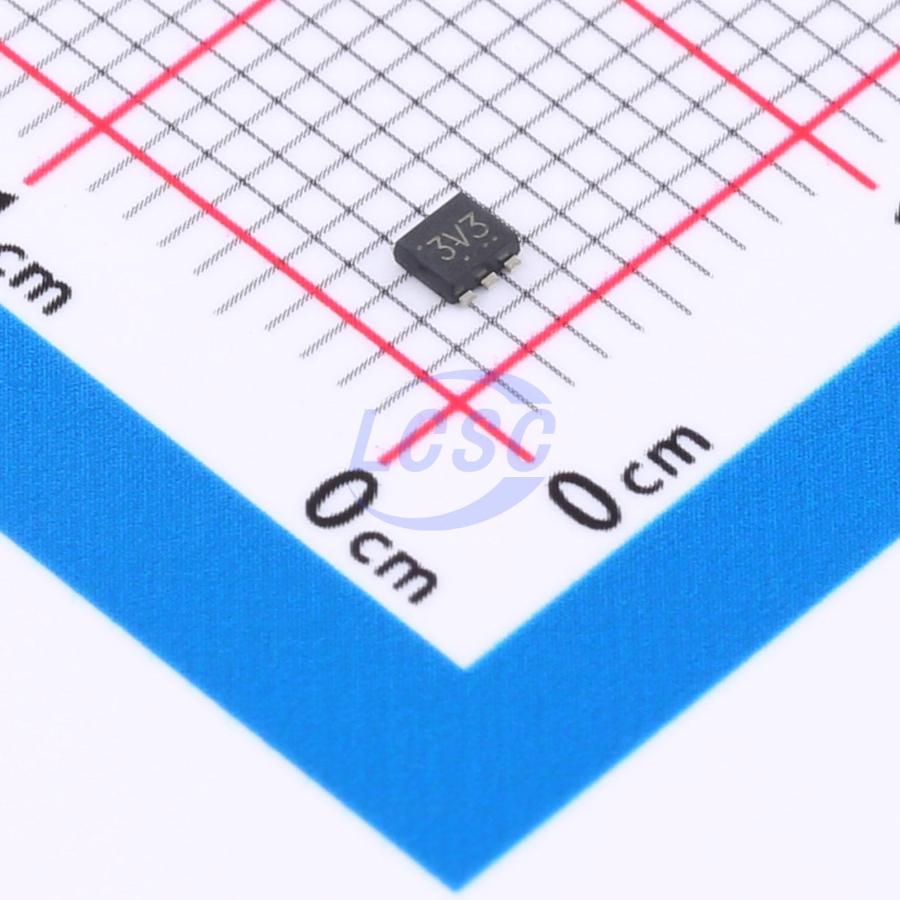

TAR5S33UTE85LF
3.3V Positive Fixed SMD-5P Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SMD-5PROHS3 CompliantActive
Point Regulators (Low-Dropout Regulators)
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TAR5S33UTE85LF
- Store part #
- C3745113
- Package / case
- SMD-5P
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
126 in stock
#C3745113
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.18 | ₹88.18 |
| 10+ | ₹70.54 | ₹705.40 |
| 30+ | ₹61.61 | ₹1,848.30 |
| 100+ | ₹52.91 | ₹5,291.00 |
| 500+ | ₹47.68 | ₹23,840.00 |
| 1,000+ | ₹45.07 | ₹45,070.00 |
1 × ₹88.18
₹88.18
excl. GST
₹104.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TAR5S33UTE85LF
₹88.18 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 850uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 15V
- Features
- Enable control;Thermal shutdown;Over Current Protection;Noise bypass terminal
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.567 g
Overview
The TAR5SxxU Series consists of general-purpose bipolar LDO regulators with an on/off control pin and features overtemperature and overcurrent protection circuits.
Applications
- RF block of cell phones
Key features
- Low standby current
- Overtemperature and overcurrent protections
- Wide operating voltage range
- High maximum output current
- Low input-to-output voltage differential
- Small package (UFV package similar to SOT-353)
- Allows use of ceramic capacitors as the input and output capacitors
