TOSHIBADatasheet (PDF)

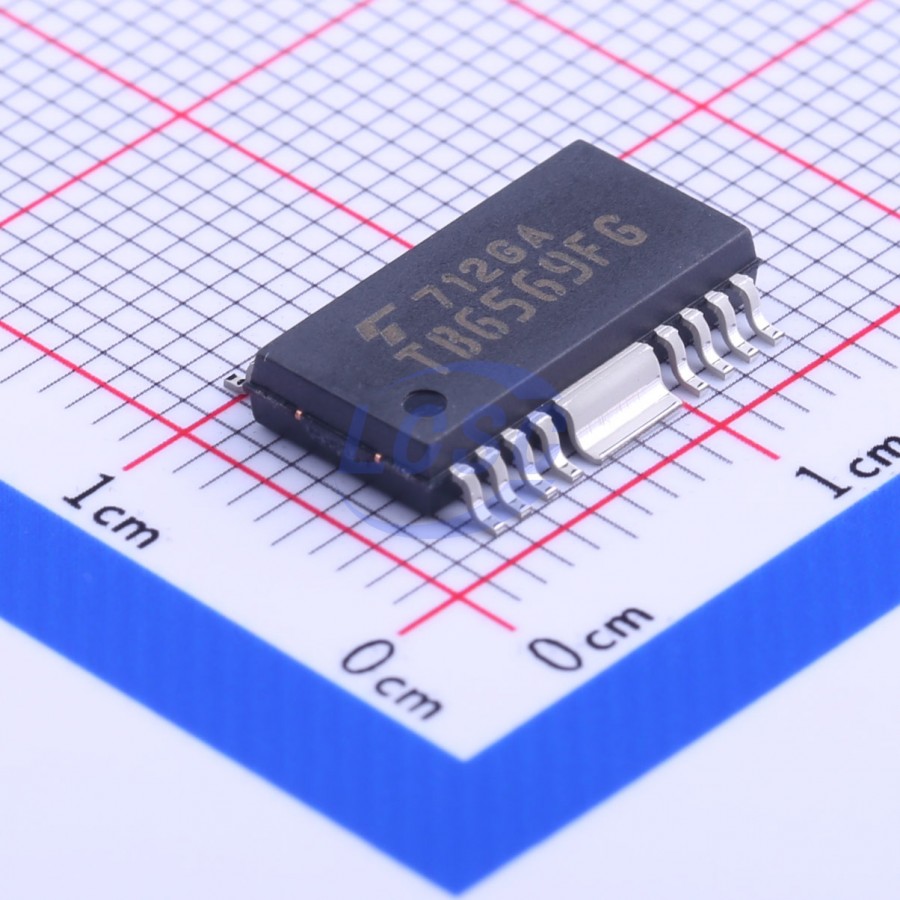

TB6569FG,8,EL
10V~45V HSOP-16-EP-6.4mm Motor Drivers, Controllers RoHS
HSOP-16-EP-6.4mmROHS3 CompliantActive
Full-Bridge DC Motor Driver IC
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB6569FG,8,EL
- Store part #
- C150125
- Package / case
- HSOP-16-EP-6.4mm
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,455 in stock
#C150125
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹353.48 | ₹353.48 |
| 10+ | ₹299.10 | ₹2,991.00 |
| 30+ | ₹265.17 | ₹7,955.10 |
| 100+ | ₹230.36 | ₹23,036.00 |
| 500+ | ₹214.70 | ₹1,07,350.00 |
| 1,500+ | ₹207.96 | ₹3,11,940.00 |
1 × ₹353.48
₹353.48
excl. GST
₹417.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
TB6569FG,8,EL
₹353.48 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Voltage - Supply
- 10V~45V
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 3mA
- Output Current
- 1.5A
- RDS(on)
- 550mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.61 g
Overview
The TB6569FG/FTG is a full-bridge DC motor driver with MOS output transistors. The low ON-resistance MOS process and PWM control enables driving DC motors with high thermal efficiency. Four operating modes are selectable via IN1 and IN2: clockwise (CW), counterclockwise (CCW), Short Brake and Stop.
Key features
- Power supply voltage : 50 V (max)
- Output current : 4.5 A (max)
- Direct PWM control
- PWM constasnt-current control
- CW/CCW/Short Brake/Stop modes
- Overcurrent shutdown circuit (ISD)
- Overcurrent detection threshold control
- Overcurrent detection time control
- Overvoltage shutdown circuit (VSD)
- Thermal shutdown circuit (TSD)
- Undervoltage lockout circuit (UVLO)
- Dead time for preventing shoot-through current
- TB6569FTG: Weight: 0.07 g (typ.)
