TOSHIBADatasheet (PDF)

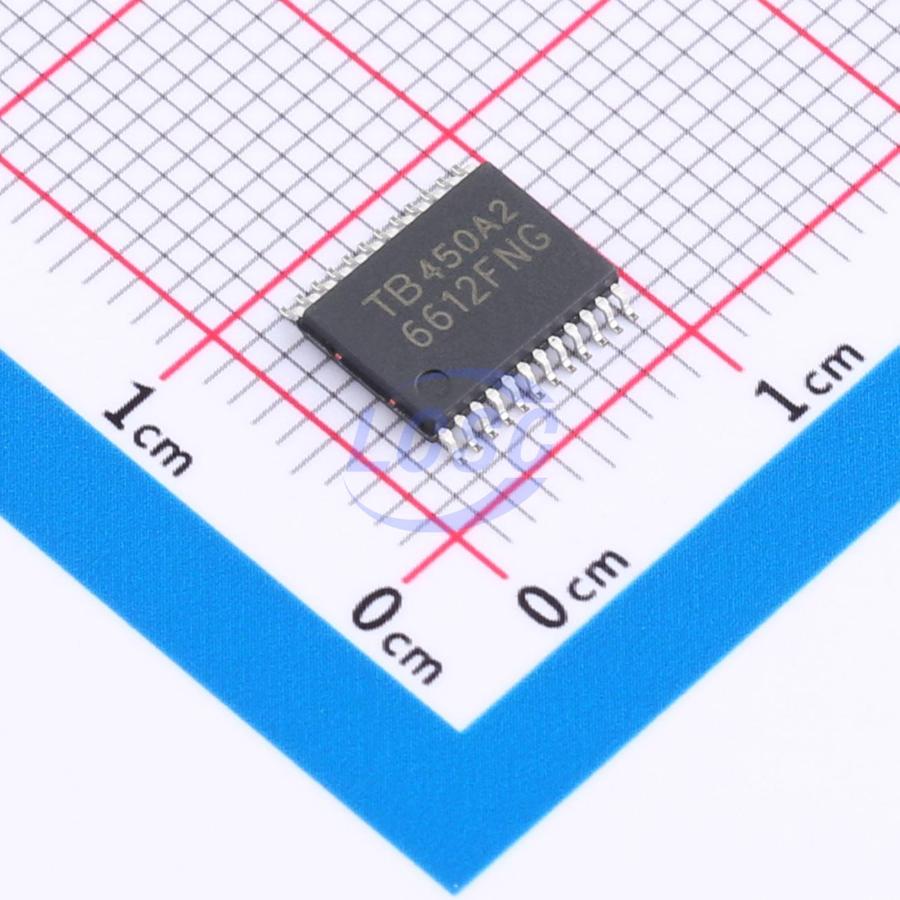

TB6612FNG(O,C,8,EL
2.7V~5.5V SSOP-24-208mil Motor Drivers, Controllers
SSOP-24-208milRoHSSold out at source
Driver IC for Dual DC motor
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TB6612FNG(O,C,8,EL
- Store part #
- C88224
- Package / case
- SSOP-24-208mil
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,204 in stock
#C88224
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹171.57 | ₹171.57 |
| 10+ | ₹141.12 | ₹1,411.20 |
| 30+ | ₹124.16 | ₹3,724.80 |
| 100+ | ₹105.24 | ₹10,524.00 |
| 500+ | ₹94.38 | ₹47,190.00 |
| 1,000+ | ₹90.47 | ₹90,470.00 |
1 × ₹171.57
₹171.57
excl. GST
₹202.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TB6612FNG(O,C,8,EL
₹171.57 for 1 + GST
Specifications
- Number of H-bridges
- 2
- Features
- Interleaved conduction protection;Active braking function
- Technology
- Yes
- Voltage - Supply
- 2.7V~5.5V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 1uA
- Output Current
- 1A
- Peak Current
- 3.2A
- RDS(on)
- 500mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.352 g
Overview
TB6612FNG is a driver IC for DC motor with output transistor in LD MOS structure with low ON - resistor. Two input signals, IN1 and IN2, can choose one of four modes such as CW, CCW, short brake, and stop mode.
Key features
- Power supply voltage: VM = 15 V(Max)
- Output current: IOUT = 1.2 A(ave)/3.2 A (peak)
- Output low ON resistor: 0.5Ω (upper+lower Typ. @ ΔbM ≥ 5 k)
- Standby (Power save) system
- CW/CCW/short brake/stop function modes
- Built - in thermal shutdown circuit and low voltage detecting circuit
- Small faced package(SSOP24: 0.65 mm Lead pitch)
- Weight: 0.14 g (typ.)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TB6612FNG(O,C,8,EL#C141517TOSHIBA · SSOP-24 | TOSHIBA | SSOP-24 | 5,153 | ₹152.37 · 5,153 in stock | View |
