MICROCHIPDatasheet (PDF)

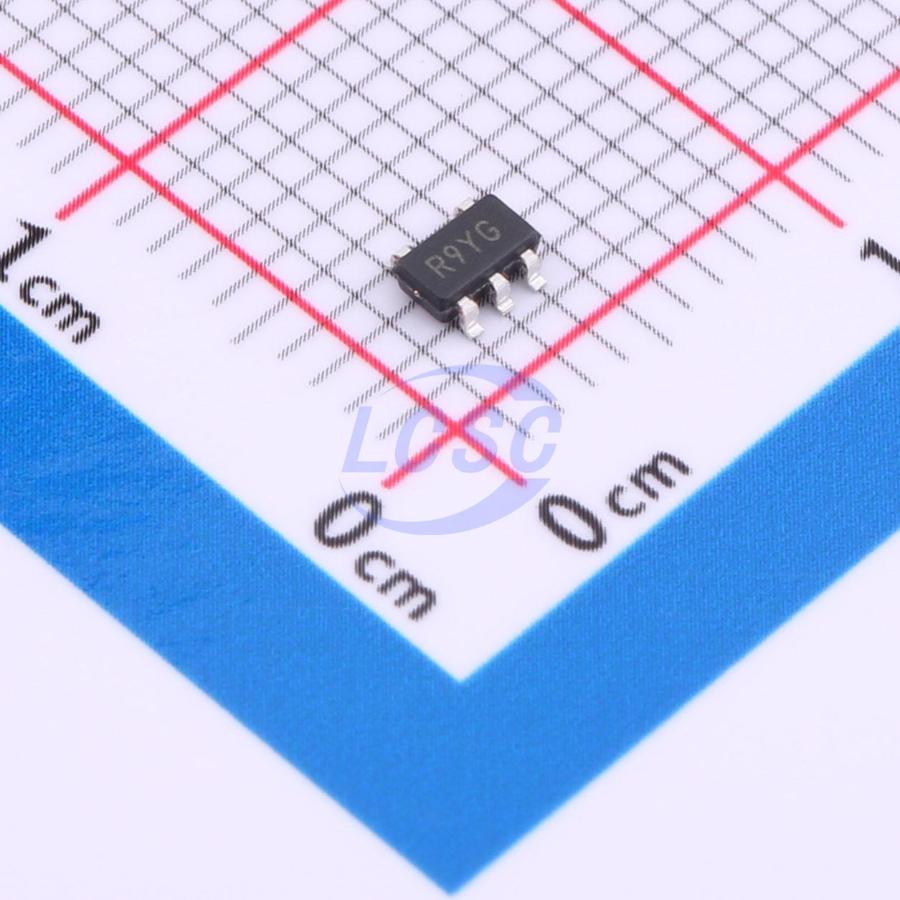

TC1187VCT713
1.165V~5.5V Positive Adjustable SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Adjustable CMOS LDOs with Shutdown
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC1187VCT713
- Store part #
- C556922
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C556922
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.15 | ₹148.15 |
| 10+ | ₹123.53 | ₹1,235.30 |
| 30+ | ₹110.19 | ₹3,305.70 |
| 100+ | ₹94.81 | ₹9,481.00 |
| 500+ | ₹88.03 | ₹44,015.00 |
| 1,000+ | ₹84.95 | ₹84,950.00 |
1 × ₹148.15
₹148.15
excl. GST
₹174.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC1187VCT713
₹148.15 for 1 + GST
Specifications
- Output Voltage
- 1.165V~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 80uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 150mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The TC1070, TC1071 and TC1187 devices are adjustable LDOs designed to supersede a variety of older (bipolar) voltage regulators. Total supply current is typically 50 μA at full load (20 to 60 times lower than in bipolar regulators). The devices’ key features include ultra low-noise operation, very low dropout voltage – typically 85 mV (TC1070), 180 mv (TC1071) and 270 mV (TC1187) at full load and fast response to step changes in load. Supply current is reduced to 0.5 μA (maximum) when the shutdown input is low. The devices incorporate both overtemperature and overcurrent protection. Output voltage is programmed with a simple resistor divider from VOUT to ADJ to GND. The TC1070, TC1071 and TC1187 devices are stable with an output capacitor of only 1 μF and have a maximum output current of 50 mA, 100 mA and 150 mA, respectively.
Applications
- Battery Operated Systems
- Portable Computers
- Medical Instruments
- Instrumentation
- Cellular/GSM/PHS Phones
- Linear Post-Regulators for SMPS
- Pagers
Key features
- 50 μA Ground Current for Longer Battery Life
- Adjustable Output Voltage
- Very Low Dropout Voltage
- Choice of 50 mA (TC1070), 100 mA (TC1071) and 150 mA (TC1187) Output
- Power-Saving Shutdown mode
- Overcurrent and Overtemperature Protection
- Space-Saving 5-Pin SOT-23 Package
- Pin Compatible with Bipolar Regulators
