MICROCHIPDatasheet (PDF)

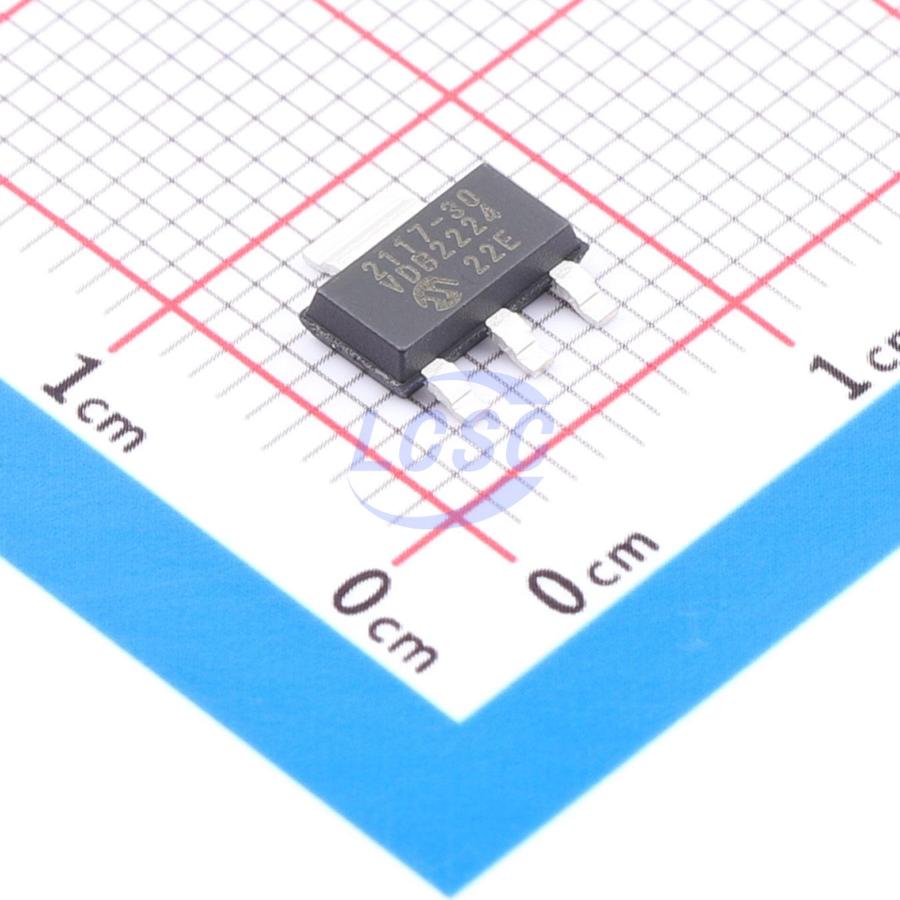

TC2117-3.0VDBTR
3V Positive Fixed SOT-223-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- TC2117-3.0VDBTR
- Store part #
- C622723
- Package / case
- SOT-223-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C622723
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹232.44 | ₹232.44 |
| 10+ | ₹227.23 | ₹2,272.30 |
| 30+ | ₹223.55 | ₹6,706.50 |
| 100+ | ₹220.07 | ₹22,007.00 |
1 × ₹232.44
₹232.44
excl. GST
₹274.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC2117-3.0VDBTR
₹232.44 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 130uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.71 g
Overview
The TC2117 is a fixed, high-accuracy (typically ±0.5% CMOS low dropout regulator. Designed specifically for battery operated systems, the TC2117's CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80 μA at full load (20 to 60 times lower than in bipolar regulators). TC2117 key features include ultra low noise, very low dropout voltage (typically 450 mV at full load), and fast response to step changes in load. The TC2117 incorporates both overtemperature and overcurrent protection. The TC2117 is stable with an output capacitor of only 1 μF and has a maximum output current of 800 mA. This device is available in 3-Pin SOT-223 and 3-Pin DDPAK packages.
Applications
- 5V to 3.3V Linear Regulator
- Portable Computers
- Instrumentation
- Battery Operated Systems
- Linear Post-Regulator for SMPS
- Core Voltage Supply for FPGAs, PLDs, CPUs and DSPs
Key features
- Fixed Output Voltages: 1.8V, 2.5V, 3.0V, 3.3V
- Very Low Dropout Voltage
- Rated 800 mA Output Current
- High Output Voltage Accuracy
- Standard or Custom Output Voltages
- Overcurrent and Overtemperature Protection
- Space Saving SOT-223 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP1826S-3002E/DB#C638623MICROCHIP · SOT-223-3 | MICROCHIP | SOT-223-3 | 49 | ₹217.18 · 49 in stock | View |
| ADP3338AKCZ-3-RL7#C661311ADI · SOT-223-3 | ADI | SOT-223-3 | 7 | ₹619.52 · 7 in stock | View | |
 | MD7218C30YA2#C2978388Mingda Microelectronics · SOT-223-3L | Mingda Microelectronics | SOT-223-3L | 200 | ₹23.01 · 200 in stock | View |
 | SSP7903P30FR#C5199838Siproin · SOT-223 | Siproin | SOT-223 | 995 | ₹32.03 · 995 in stock | View |
 | LDL1117S30R#C2798214ST · SOT-223-4 | ST | SOT-223-4 | 24,270 | ₹44.55 · 24,270 in stock | View |
