TOSHIBADatasheet (PDF)

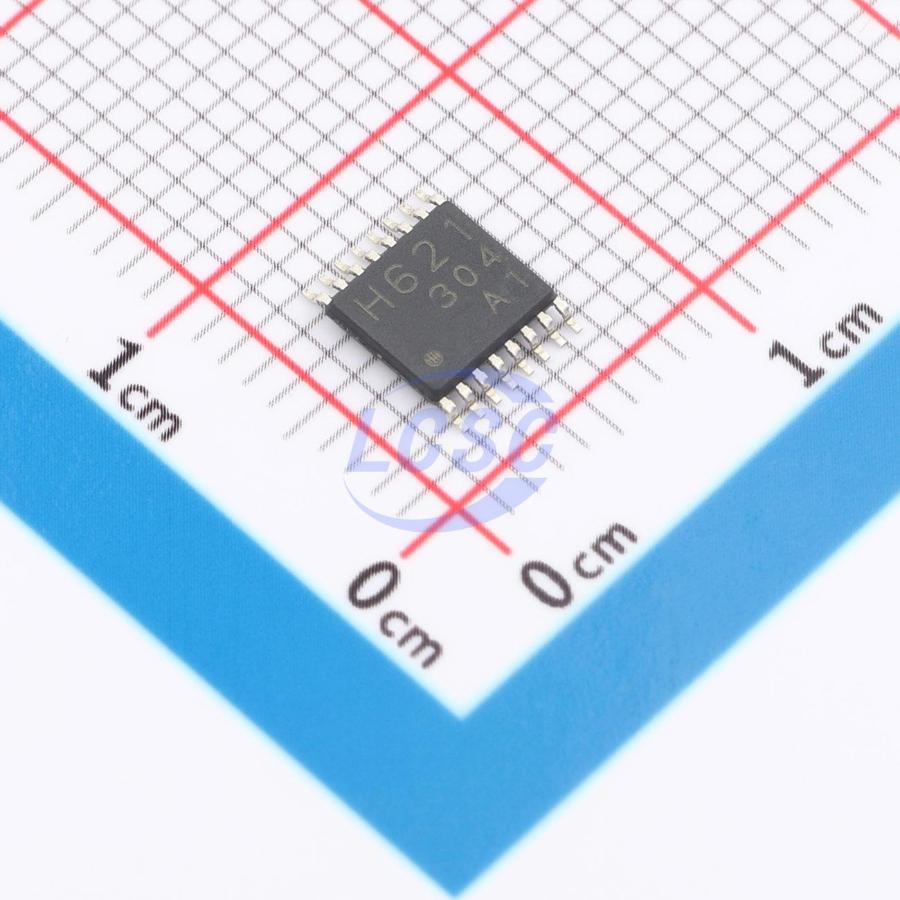

TC78H621FNG,EL
TSSOP-16 Motor Drivers, Controllers RoHS
TSSOP-16ROHS3 CompliantActive
Dual-bridge driver IC
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC78H621FNG,EL
- Store part #
- C2150461
- Package / case
- TSSOP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,788 in stock
#C2150461
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.54 | ₹79.54 |
| 10+ | ₹63.68 | ₹636.80 |
| 30+ | ₹55.63 | ₹1,668.90 |
| 100+ | ₹47.81 | ₹4,781.00 |
| 500+ | ₹43.04 | ₹21,520.00 |
| 1,000+ | ₹40.64 | ₹40,640.00 |
1 × ₹79.54
₹79.54
excl. GST
₹93.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TC78H621FNG,EL
₹79.54 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- Yes
- Operating Temperature
- -30℃~+85℃
- Output Current
- 800mA
- Step Resolution
- 1;2
- Control Voltage
- 2.7V~5.5V
- RDS(on)
- 800mΩ
- Motor Drive Voltage(Vm)
- 2.5V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.183 g
Overview
The TC78H621FNG is a dual-bridge driver IC which incorporates DMOS in output transistors. The TC78H621FNG is capable of driving 2 DC brushed motors or 1 stepping motor.
Key features
- Power supply voltage for motor: Vu = 18 V(Max)
- Power supply voltage for control: VCC = 6 V(Max)
- Output current: IOUT = 1.1 A(Max)
- Output ON resistance: Ron(upper and lower sum) = 0.8 Ω(Typ.)
- Internal pull-down resistors on inputs: 200 kΩ(Typ.)
- Built-in over current detection(ISD), thermal shutdwon(TSD) circuit, and under voltage lockout(UVLO) circuit
- Small package: P-TSSOP16-0505-0.65-001
- Built-in cross conduction protection circuit
