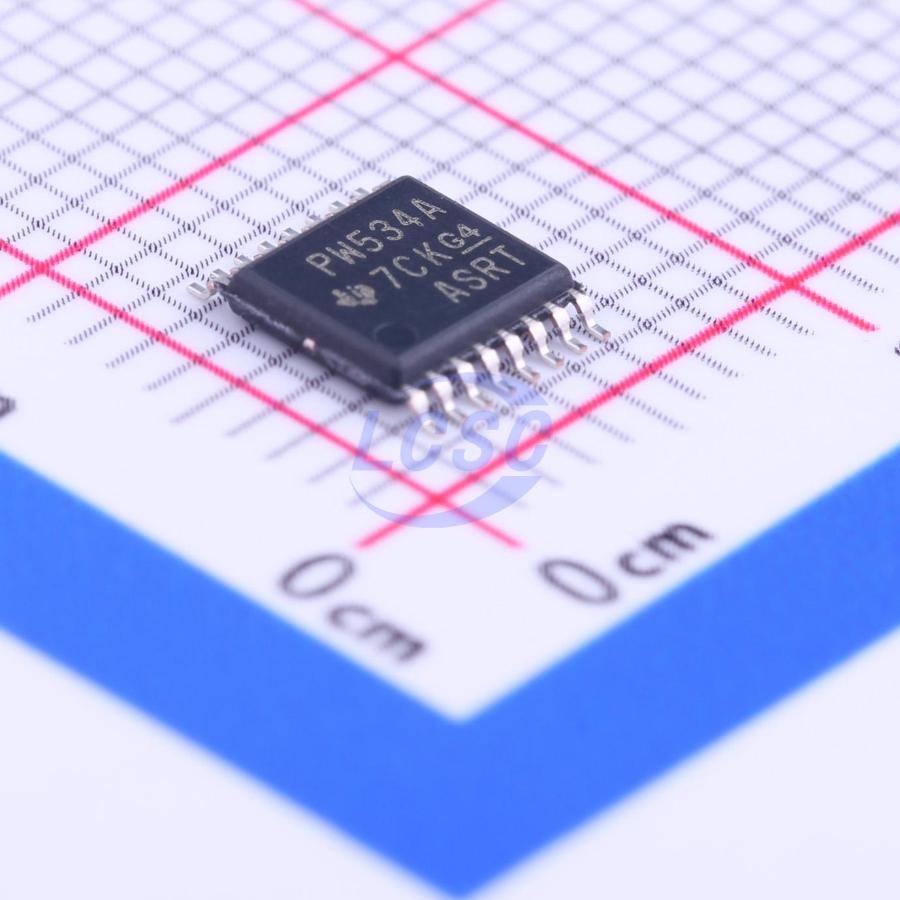

TCA9534APWR

The TCA9534A is a 16-pin device that provides 8-bit general-purpose parallel I/O expansion for the two-wire bidirectional I²C bus (or SMBus) protocol. The device operates over a supply voltage range of 1.65V to 5.5V, allowing use with a wide variety of devices. It supports clock frequencies of 100kHz (standard mode) and 400kHz (fast mode). When switches, sensors, buttons, LEDs, fans, and other similar devices require additional I/O, I/O expanders such as the TCA9534A provide a simple solution. Features of the TCA9534A include interrupt generation on the INT pin, which notifies the master device whenever the input port state changes. Hardware-selectable address pins A0, A1, and A2 allow up to eight TCA9534A devices to share the same I²C bus. The device also supports power-cycling to generate a power-on reset, returning it to the default state.

Applications

• Servers
• Routers (telecom switching equipment)
• Personal computers
• Personal electronics (e.g., gaming consoles)
• Industrial automation
• Products using GPIO-constrained processors

Key features

• Low standby current consumption
• I²C to parallel port expander
• Open-drain active-low interrupt output
• 1.65V to 5.5V operating supply voltage range
• 5V-tolerant I/O ports
• 400kHz Fast-mode I²C bus
• 3 hardware address pins supporting up to 8 devices on I²C/SMBus
• Input and output configuration registers
• Polarity inversion register
• Internal power-on reset
• All channels configured as inputs at power-on
• Glitch-free outputs at power-on
• Noise filter on SCL/SDA inputs
• Latched outputs with maximum high-current drive capability for direct LED driving
• Latch-up performance exceeding 100mA per JESD78 Class II
• ESD protection exceeding JESD22 requirements
• 2000V Human Body Model (A114-A)
• 1000V Charged Device Model (C101)
