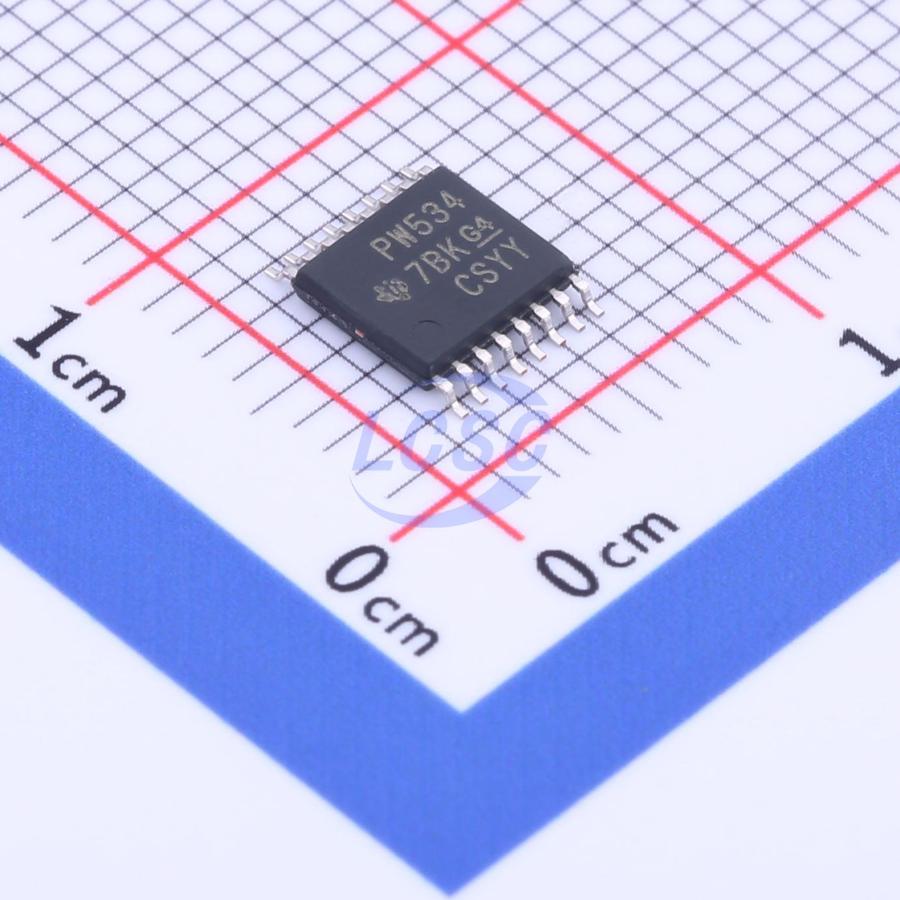

TCA9534PWR
8 I2C TSSOP-16 I/O Expanders RoHS
TSSOP-16ROHS3 CompliantActive
Low-voltage 8-bit I²C and SMBUS low-power I/O expander with interrupt output and configuration register
- Manufacturer
- TI
- Manufacturer part #
- TCA9534PWR
- Store part #
- C783615
- Package / case
- TSSOP-16
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,633 in stock
#C783615
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.38 | ₹100.38 |
| 10+ | ₹81.91 | ₹819.10 |
| 30+ | ₹72.79 | ₹2,183.70 |
| 100+ | ₹63.66 | ₹6,366.00 |
| 500+ | ₹51.93 | ₹25,965.00 |
| 1,000+ | ₹49.11 | ₹49,110.00 |
1 × ₹100.38
₹100.38
excl. GST
₹118.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TCA9534PWR
₹100.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 8
- Features
- Reset function;Built-in LED driver;Cascade and address expansion
- Voltage - Supply
- 1.65V~5.5V
- Quiescent Supply Current
- 1.5uA
- Number of Supporting Devices
- 8
- Current - Output High(IOH)
- 10mA
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
The TCA9534 is a 16-pin device that provides 8-bit general-purpose parallel input and output (I/O) expansion for the two-wire bidirectional I²C bus (or SMBus) protocol. The device can operate over a power supply voltage range of 1.65V to 5.5V, allowing the use of various devices. The device supports clock frequencies of 100kHz (Standard Mode) and 400kHz (Fast Mode). When additional I/O is required for switches, sensors, buttons, LEDs, fans, and other similar devices, an I/O expander such as the TCA9534 provides a simple solution. Features of the TCA9534 include interrupt generation on the INT pin. This allows the host device to know when an input port has changed state. The hardware-addressable pins A0, A1, and A2 allow up to eight TCA9534 devices on the same I²C bus. The device can also be powered by cycling the power supply to generate a power-on reset, which resets the device to its default state.
Applications
- Servers
- Routers (telecom switching equipment)
- Personal computers
- Personal electronics (e.g., gaming consoles)
- Industrial automation
- Products using GPIO-constrained processors
Key features
- ESD protection exceeds JESD 22 specification requirements – 2000V Human Body Model (A114-A), 1000V Component Charged Model (C101)
- Low standby current consumption
- I²C to parallel port expander
- Open-drain outputs
- Active-low interrupt output
- 1.65V to 5.5V operating supply voltage range
- 5V-tolerant I/O ports
- 400kHz fast I²C bus
- 3 hardware address pins support up to 8 devices on I2C/SMBus
- Input and output configuration registers
- Polarity inversion register
- Internal power-on reset; all channels configured as inputs at power-on
- Glitch-free outputs at power-on
- Noise filter on SCL/SDA inputs
- Latched outputs with maximum high-current drive capability for direct LED driving
- Latch-up performance exceeds 100mA, compliant with JESD 78 Class II specification
