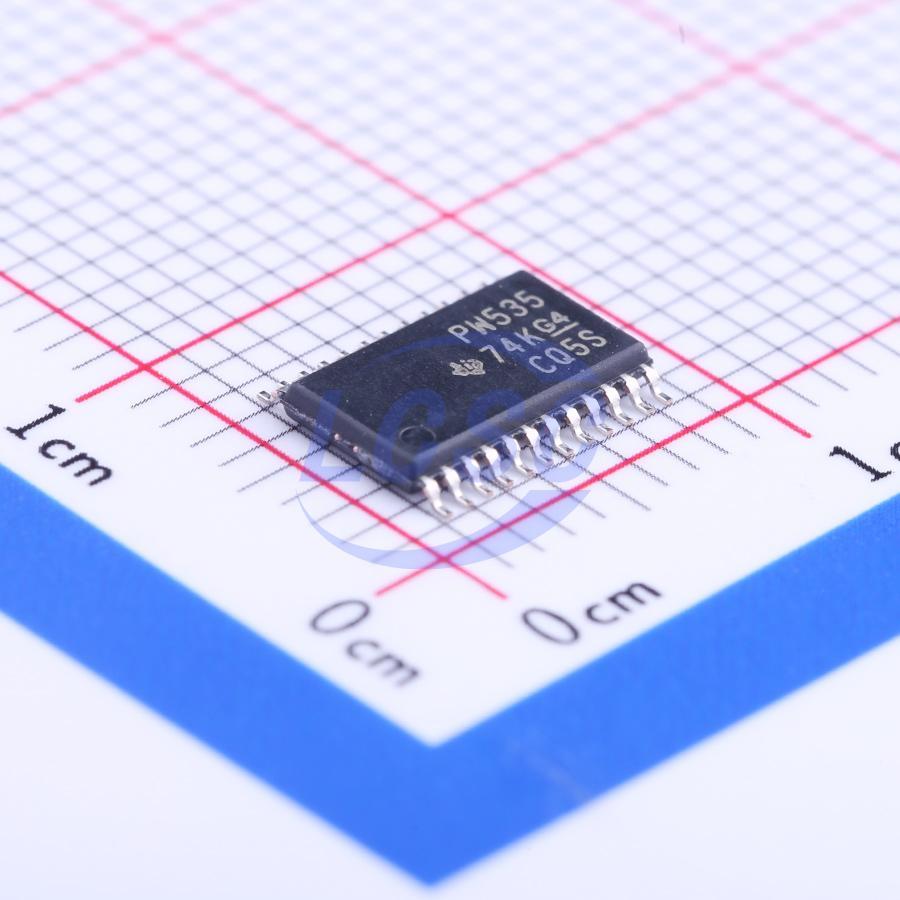

TCA9535PWR
16 TSSOP-24 I/O Expanders RoHS
TSSOP-24ROHS CompliantActive
Low-Voltage 16-Bit I²C and SMBus Low-Power I/O Expander with Interrupt Output and Configuration Registers
- Manufacturer
- TI
- Manufacturer part #
- TCA9535PWR
- Store part #
- C130204
- Package / case
- TSSOP-24
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,795 in stock
#C130204
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹176.86 | ₹176.86 |
| 10+ | ₹155.76 | ₹1,557.60 |
| 30+ | ₹135.96 | ₹4,078.80 |
| 100+ | ₹121.17 | ₹12,117.00 |
| 500+ | ₹109.86 | ₹54,930.00 |
| 1,000+ | ₹107.03 | ₹1,07,030.00 |
1 × ₹176.86
₹176.86
excl. GST
₹208.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TCA9535PWR
₹176.86 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 16
- Features
- Reset function;Built-in LED driver;Cascade and address expansion
- Voltage - Supply
- 1.65V~5.5V
- Quiescent Supply Current
- 1.5uA
- Number of Supporting Devices
- 8
- Current - Output High(IOH)
- 10mA
- Interface
- I2C;SMBus
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
The TCA9535 is a 24-pin device that provides 16 bits of general purpose parallel input and output (I/O) expansion for the two-line bidirectional I²C bus or (SMBus) protocol. The device can operate with a power supply voltage ranging from 1.65 V to 5.5 V. The TCA9535 consists of two 8-bit Configuration (input or output selection), Input Port, Output Port, and Polarity Inversion (active-high or active-low operation) registers. At power on, the I/Os are configured as inputs. The system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. The TCA9535 is identical to the TCA9555, except that the TCA9535 does not include the internal I/O pull-up resistor, which requires pull-ups and pulldowns on unused I/O pins when configured as an input and undriven.
Applications
- Servers
- Routers (Telecom Switching Equipment)
- Personal Computers
- Personal Electronics (For Example, Gaming Consoles)
- Industrial Automation Products With GPIO-Limited Processors
Key features
- I²C to Parallel Port Expander
- Wide Power Supply Voltage Range of 1.65 V to 5 V
- Low Standby-Current Consumption
- Open-Drain Active-Low Interrupt Output
- 5-V Tolerant I/O Ports
- 400-kHz Fast I²C Bus
- Polarity Inversion Register
- Address by Three Hardware Address Pins for Use of up to Eight Devices
- Latched Outputs With High-Current Drive Capability for Directly Driving LEDs
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TCA9555PWR#C465732TI · TSSOP-24 | TI | TSSOP-24 | 37,613 | ₹97.45 · 37,613 in stock | View |
 | NCA9555PWJ#C6330665Nexperia · TSSOP-24 | Nexperia | TSSOP-24 | 6,503 | ₹105.51 · 6,503 in stock | View |
 | FCA9535T#C55318344Nyfea · TSSOP-24 | Nyfea | TSSOP-24 | 3,870 | ₹52.22 · 3,870 in stock | View |
