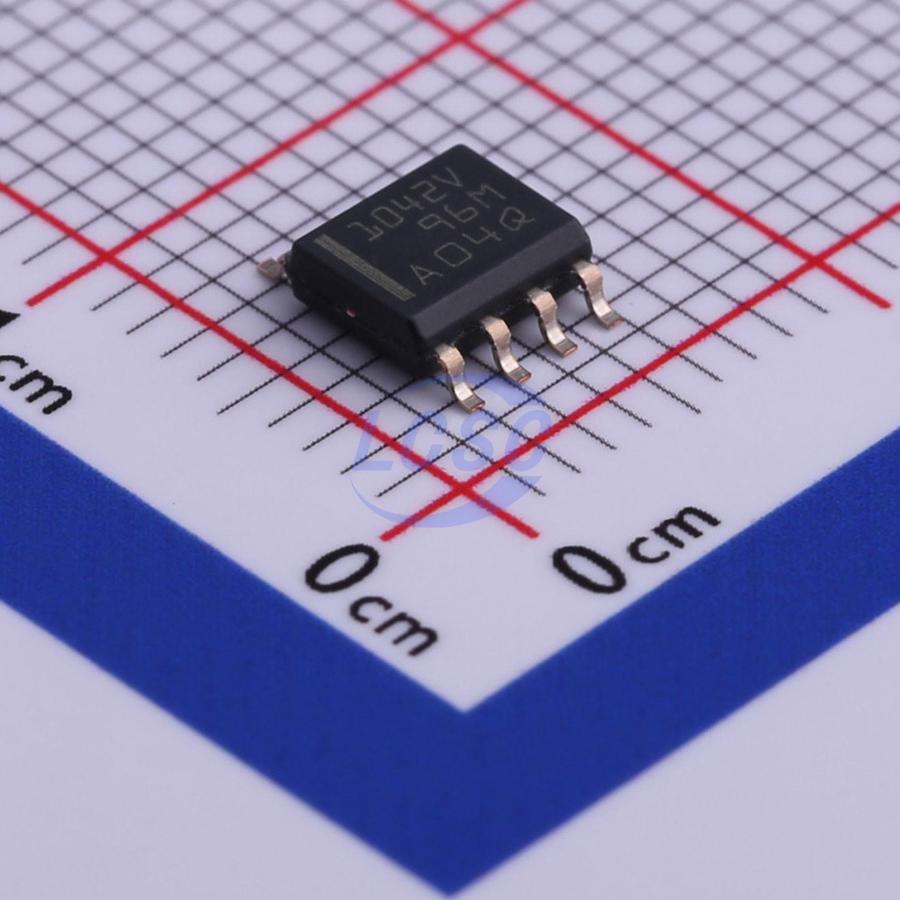

TCAN1042VDRQ1

This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second). Devices with part numbers that include the "G" suffix are designed for data rates up to 5 Mbps, and versions with the "V" have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family has a low power standby mode with remote wake request feature. Additionally, all devices include many protection features to enhance device and network robustness.

Applications

• Automotive and Transportation
• Heavy Machinery ISOBUS Applications – ISO 11783
• SAE J2284 High-Speed CAN for Automotive Applications
• GMW3122 Dual-Wire CAN Physical Layer
• Meets requirements of SAE J2962, GIFT/ICT, ISO16845

Key features

• AEC Q100: Qualified for Automotive Applications
• Temperature Grade 1: -40°C to 125°C, TA
• Device HBM Classification Level: ±16 kV
• Device CDM Classification Level ±1500 V
• Meets the ISO 11898-2:2016 and ISO 11898-5:2007 Physical Layer Standards
• 'Turbo' CAN: All Devices Support Classic CAN and 2 Mbps CAN FD (Flexible Data Rate) and "G" Options Support 5 Mbps
• Short and Symmetrical Propagation Delay Times and Fast Loop Times for Enhanced Timing Margin
• Higher Data Rates in Loaded CAN Networks
• I/O Voltage Range Supports 3.3 V and 5 V MCUs
• Bus and Logic Terminals are High Impedance (no load)
• Power Up/Down With Glitch Free Operation On Bus and RXD Output
• IEC ESD Protection up to ±15 kV
• Bus Fault Protection: ±58 V (non-H variants) and ±70 V (H variants)
• Undervoltage Protection on VCC and V10 (V variants only) Supply Terminals
• Driver Dominant Time Out (TXD DTO) - Data rates down to 10 kbps
• Thermal Shutdown Protection (TSD)
• Available in SOIC(8) Package and Leadless VSON(8) Package (3.0 mm × 3.0 mm) with Improved Automated Optical Inspection (AOI) Capability
