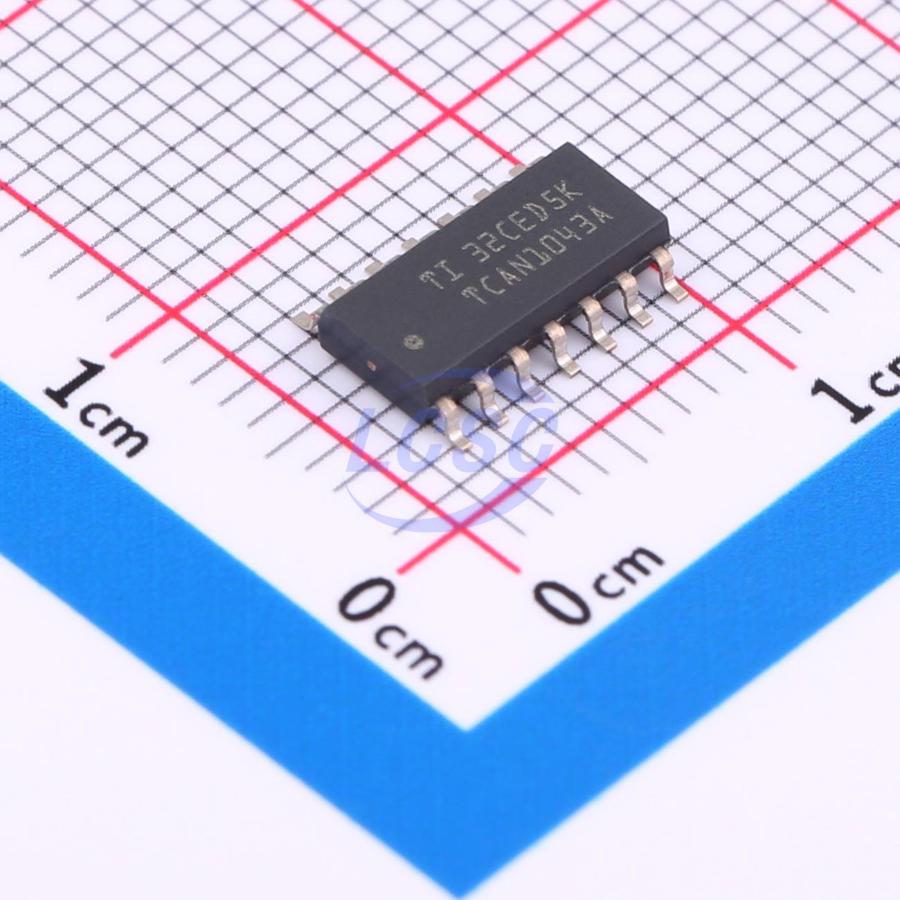

TCAN1043ADRQ1

The TCAN1043A-Q1 is a high-speed Controller Area Network (CAN) transceiver that meets the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification. This device supports both traditional CAN and CAN FD, with data rates up to 8 megabits per second (Mbps) (TCAN1043A-Q1) or 5 Mbps (TCAN1043AT-Q1). The TCAN1043A-Q1 can selectively enable various power supplies that may be present on the system through the INH output pin, thereby reducing the battery current consumption at the entire system level. This allows power to be delivered to all system components except the TCAN1043A-Q1 in the low-current sleep mode while monitoring the CAN bus. When a wake-up event is detected, the TCAN1043A-Q1 initiates the system by driving the INH pin high. The TCAN1043A-Q1 features an SWE timer that enables a safe transition from standby mode to sleep mode after 4 minutes (tINACTIVE) of inactivity. This feature also ensures that the device transitions to the low-power sleep mode if the MCU fails and is unable to switch the device to the normal mode.

Applications

• Body electronics and lighting
• Automotive gateway
• Advanced Driver Assistance Systems (ADAS)
• Infotainment and instrument cluster
• Hybrid, electric and powertrain systems
• Personal mobility - e-bikes
• Industrial transportation

Key features

• AEC Q100 (Grade 1) qualified for automotive applications
• Compliant with ISO 11898-2:2016
• Wide supply voltage range supporting Classic CAN and CAN FD up to 8Mbps (TCAN1043A-Q1) or 5Mbps (TCAN1043AT-Q1)
• V10 level shifting support: 1.7V to 5.5V
• Operating modes: Normal, Silent, Standby
• Low-power Sleep mode
• High-voltage INH output for system power control
• Local wake-up via WAKE pin
• Sleep Wake Error (SWE) timer for safe transition from Standby to Sleep mode in case of system power or software failure
• Extended power-on duration support
• Defined unpowered behavior
• High-impedance bus and IO terminals (no load on active bus or application)
• Protection features: ±58V CAN bus fault tolerance, load dump on VSUP, IEC ESD protection, undervoltage protection, thermal shutdown, TXD dominant state timeout (TXD DTO)
• Available in 14-pin leaded (SOT and SOIC) packages with wettable flanks and leadless (VSON) package for enhanced AOI capability
