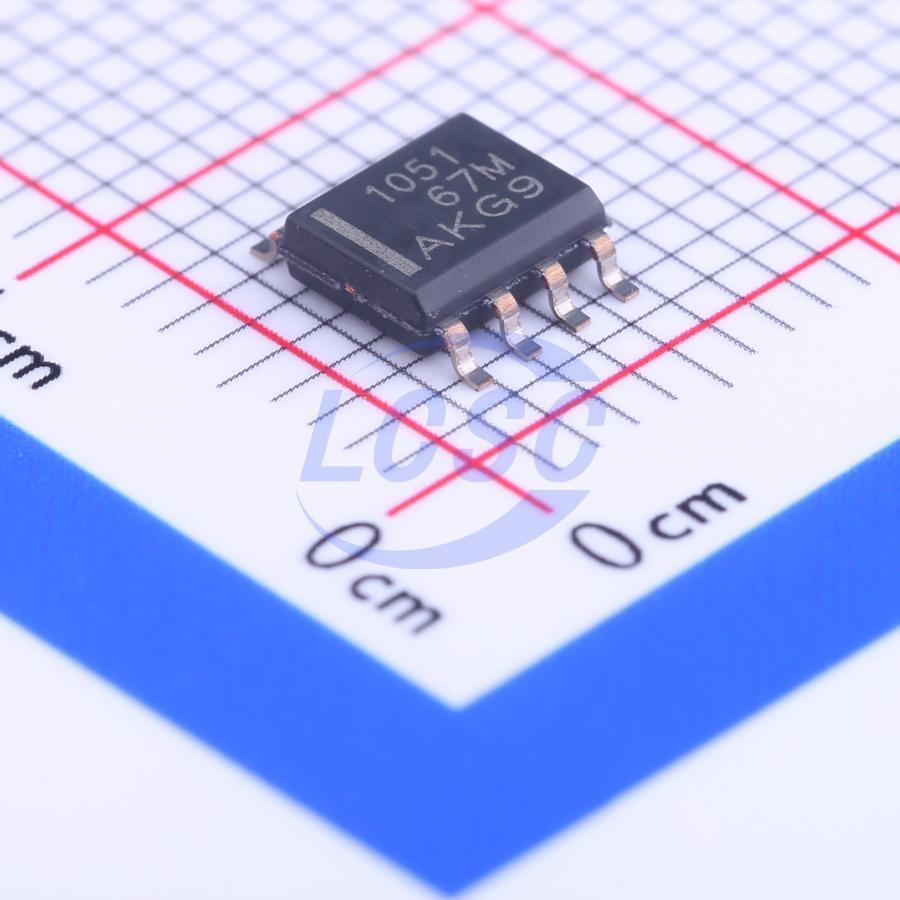

TCAN1051HDR

This CAN transceiver family meets the ISO11898-2 (2016) High Speed CAN (Controller Area Network) physical layer standard. All devices are designed for use in CAN FD networks up to 2 Mbps (megabits per second). Devices with part numbers that include the "G" suffix are designed for data rates up to 5 Mbps, and versions with the "V" have a secondary power supply input for I/O level shifting the input pin thresholds and RXD output level. This family of devices comes with silent mode which is also commonly referred to as listen-only mode. Additionally, all devices include many protection features to enhance device and network robustness.

Applications

• All devices support highly loaded CAN networks
• Heavy Machinery ISOBUS Applications – ISO 11783
• Industrial Automation, Control, Sensors and Drive Systems
• Building, Security and Climate Control Automation
• Telecom Base Station Status and Control
• CAN Bus Standards Such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783

Key features

• Meets the ISO 11898-2:2016 and ISO 11898-5:2007 Physical Layer Standards
• 'Turbo' CAN:
• All Devices Support Classic CAN and 2 Mbps CAN FD (Flexible Data Rate) and "G" Options Support 5 Mbps
• Short and Symmetrical Propagation Delay Times and Fast Loop Times for Enhanced Timing Margin
• Higher Data Rates in Loaded CAN Networks
• I/O Voltage Range Supports 3.3 V and 5 V MCUs
• Ideal Passive Behavior When Unpowered
• Bus and Logic Terminals are High Impedance (no load)
• Power Up/Down With Glitch Free Operation On Bus and RXD Output
• Protection Features
• HBM ESD Protection: ±16 kV
• IEC ESD Protection up to ±15 kV
• Bus Fault Protection: ±58 V (non-H variants) and ±70 V (H variants)
• Undervoltage Protection on VCC and V10 (V variants only) Supply Terminals
• Driver Dominant Time Out (TXD DTO) - Data rates down to 10 kbps
• Thermal Shutdown Protection (TSD)
• Receiver Common Mode Input Voltage: ±30 V
• Typical Loop Delay: 110 ns
• Junction Temperatures from -55°C to 150°C
• Available in SOIC(8) Package and Leadless VSON(8) Package (3.0 mm × 3.0 mm) with Improved Automated Optical Inspection (AOI) Capability
