TCR2EE20,LM(CT

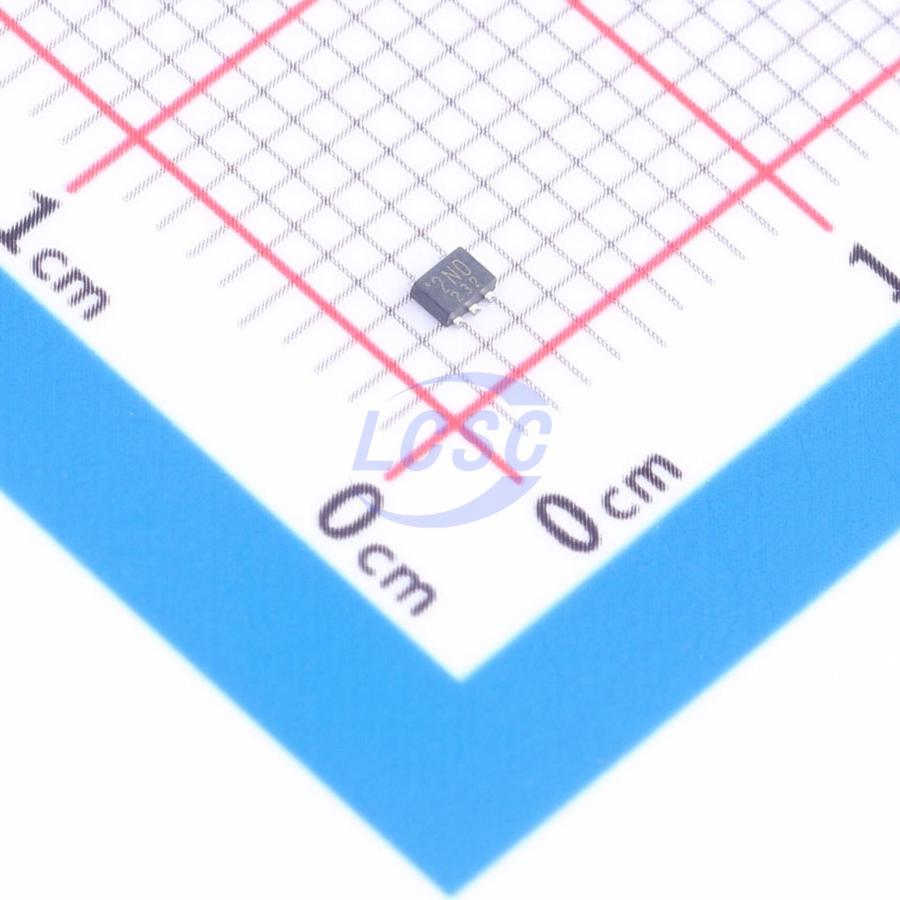

2V Positive Fixed SOT-553 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-553Active

Manufacturer: TOSHIBA
Manufacturer part #: TCR2EE20,LM(CT
Store part #: C6552091
Package / case: SOT-553
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

595 in stock

#C6552091

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹15.27	₹76.35
50+	₹14.94	₹747.00
150+	₹14.72	₹2,208.00
500+	₹14.50	₹7,250.00

Quantity (min 5, multiples of 5)

5 × ₹15.27

₹76.35

excl. GST

₹90.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

TCR2EE20,LM(CT

₹76.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 2V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 200mA
Output Type: Fixed
Features: Enable control;Over Current Protection;Output discharge

Packaging & compliance

Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.018 g

Overview

The TCR2EF and TCR2EE series are CMOS single output voltage regulators with an on/off control input, featuring low dropout voltage, low output noise voltage and fast load transient response. These voltage regulators are available in fixed output voltages between 1.0 V and 5.0 V and capable of driving up to 200 mA. They feature overcurrent protection, an Auto-discharge function. The TCR2EF and TCR2EE series has a low dropout voltage of 180 mV (2.5 V output, Iout = 150 mA) with low output noise voltage of 35 μVrms (2.5 V output) and a load transient response of only ΔVout = ±60 mV (Iout = 1 mA ⇔ 150 mA, Cout = 1.0 μF). Thus, the TCR2EF and TCR2EE series are suitable for sensitive power supply such as Analog and RF applications.

Key features

Low dropout voltage: VDO = 150 mV (typ.) at 3.0 V output, Iout = 150 mA (SMV (SOT - 25)(SC - 74A)); VDO = 180 mV (typ.) at 2.5 V output, Iout = 150 mA (ESV (SOT - 553)); VDO = 230 mV (typ.) at 1.8 V output, Iout = 150 mA; VDO = 380 mV (typ.) at 1.2 V output, Iout = 150 mA; VDO = 510 mV (typ.) at 1.0 V output, Iout = 150 mA
Low output noise voltage (VNO = 35 μVrms (typ.) at 2.5 V output, Iout = 10 mA, 10 Hz < f < 100 kHz)
Fast load transient response (ΔVout = ±60 mV (typ.) at Iout = 1 mA ⇔ 150 mA, Cout = 1.0 μF)
Low quiescent bias current (IB = 35 μA (typ.) at Iout = 0 mA)
High ripple rejection ratio (73 dB (typ.) at 2.5 V output, Iout = 10 mA, f = 1 kHz)
Wide range output voltage line up (Vout = 1.0 to 5.0 V)
High Vout accuracy ±1.0% (1.8 V ≤ Vout)
Overcurrent protection
Auto - discharge Pull down connection between CONTROL and GND
Ceramic capacitors can be used (Cin = 0.1 μF, Cout = 1.0 μF)
Small package ESV (SOT - 553) (1.6 mm × 1.6 mm × 0.55 mm)
General package SMV (SOT - 25) (2.8 mm × 2.9 mm × 1.1 mm)
