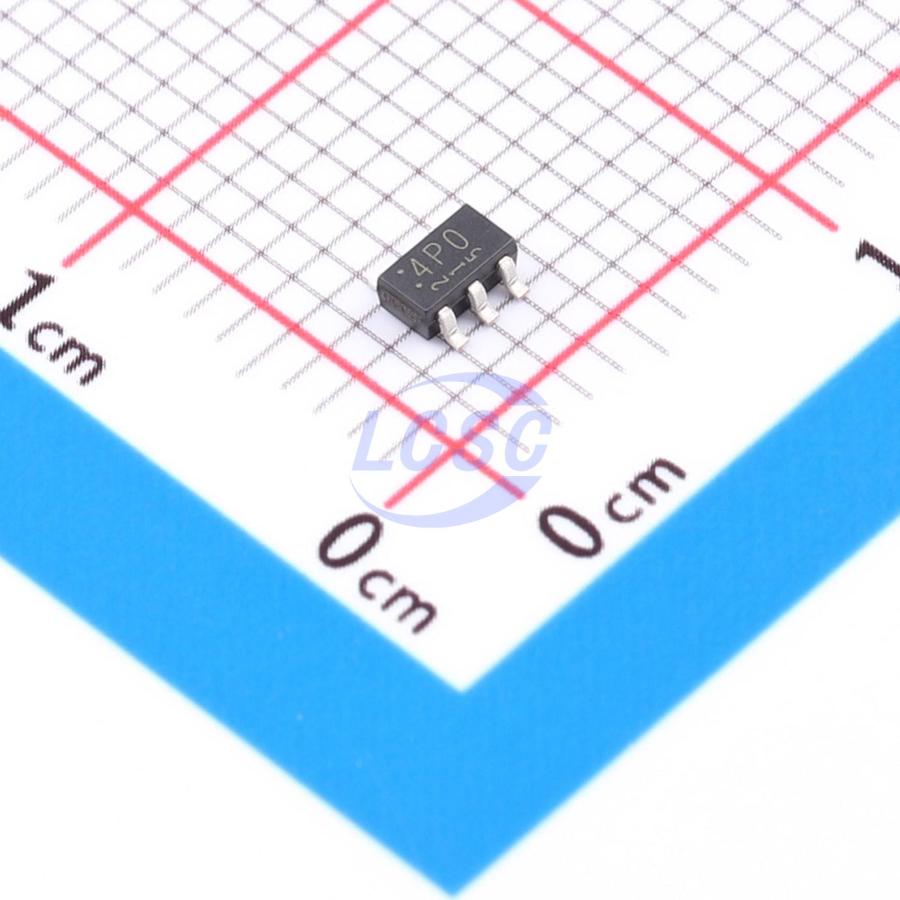

TCR3DF40,LM(CT

The TCR3DF series are CMOS general-purpose single-output voltage regulators with an on/off control input, featuring low dropout voltage, low output noise voltage and low inrush current. These voltage regulators are available in fixed output voltages between 1.0 V and 4.5 V and capable of driving up to 300 mA. They feature over-current protection, over-temperature protection, Inrush current protection circuit and Auto-discharge function. The TCR3DF series has a low dropout voltage of 230 mV (2.5 V output, IOUT = 300 mA) with low output noise voltage of 38 μVrms (2.5 V output) and a load transient response of only ΔVOUT = ±85 mV (IOUT = 1 mA⇔300 mA, COUT = 1.0 μF). Thus, the TCR3DF series are suitable for sensitive power supply such as Analog and RF applications.

Applications

• Analog and RF applications

Key features

• Low Drop-Out voltage VIN - VOUT = 230 mV (typ.) at 2.5 V output, IOUT = 300 mA
• VIN - VOUT = 290 mV (typ.) at 1.8 V output, IOUT = 300 mA
• VIN - VOUT = 510 mV (typ.) at 1.2 V output, IOUT = 300 mA
• Low output noise voltage VNO = 38 μVrms (typ.) at 2.5 V output, IOUT = 10 mA, 10 Hz ≤ f ≤ 100 kHz
• Fast load transient response (ΔVOUT = ±85 mV (typ.) at IOUT = 1 ⇔ 300 mA, COUT = 1.0 μF)
• High ripple rejection (RR = 70 dB (typ.) at 2.5 V output, IOUT = 10 mA, f = 1 kHz)
• Over-current protection
• Over-temperature protection
• Inrush current protection circuit
• Auto-discharge function
• Pull down connection between CONTROL and GND
• Ceramic capacitors can be used (CIN = 1.0 μF, COUT = 1.0 μF)
• General purpose package SMV(SOT-25) (SC-74A)
