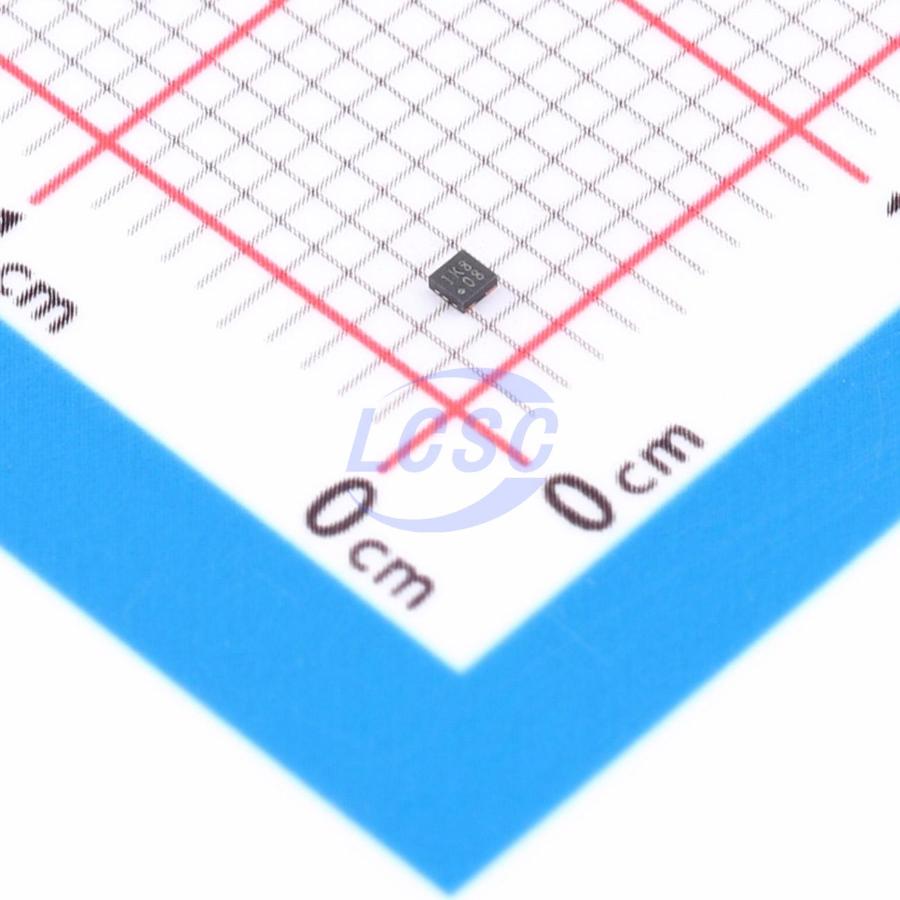

TCR3LM18A,RF

The TCR3LM series are CMOS general-purpose single-output regulators with switching control input, featuring ultra-low quiescent current. These regulators provide fixed output voltages from 0.8 V to 5.0 V and are capable of driving loads up to 300 mA. They integrate overcurrent protection, thermal shutdown, and automatic discharge functions. The series adopts an ultra-compact plastic DFN4D package (dimensions: 1.0 mm × 1.0 mm; typical thickness 0.37 mm) with low quiescent current characteristics (typical quiescent current of 1.2 μA at 0 mA output current). Since the TCR3LM series can use ceramic input and output capacitors as small as 0.47 μF, it is well suited for handheld devices requiring high-density PCB assembly, such as mobile phones.

Applications

• Smartphones
• Wearable devices
• Portable medical devices
• Handheld test instruments

Key features

• Ultra-compact DFN4D package (1.0 mm × 1.0 mm; typical thickness 0.37 mm)
• Low quiescent current (typical 1.2 μA at 0 mA output current)
• High ripple rejection ratio (typical 74 dB at 100 Hz, 0.8 V output voltage)
• Fast load transient response (-70/+35 mV at 2.8 V output voltage, output current switching from 1 mA to 100 mA)
• Low dropout voltage (typical 213 mV at 2.8 V output voltage, 200 mA output current)
• Wide output voltage range (0.8 V to 5.0 V)
• Overcurrent protection
• Thermal shutdown
• Auto discharge
• Pull-down connection between control pin and GND
• Compatible with ceramic capacitors (CIN = 0.47 μF, COUT = 0.47 μF)
