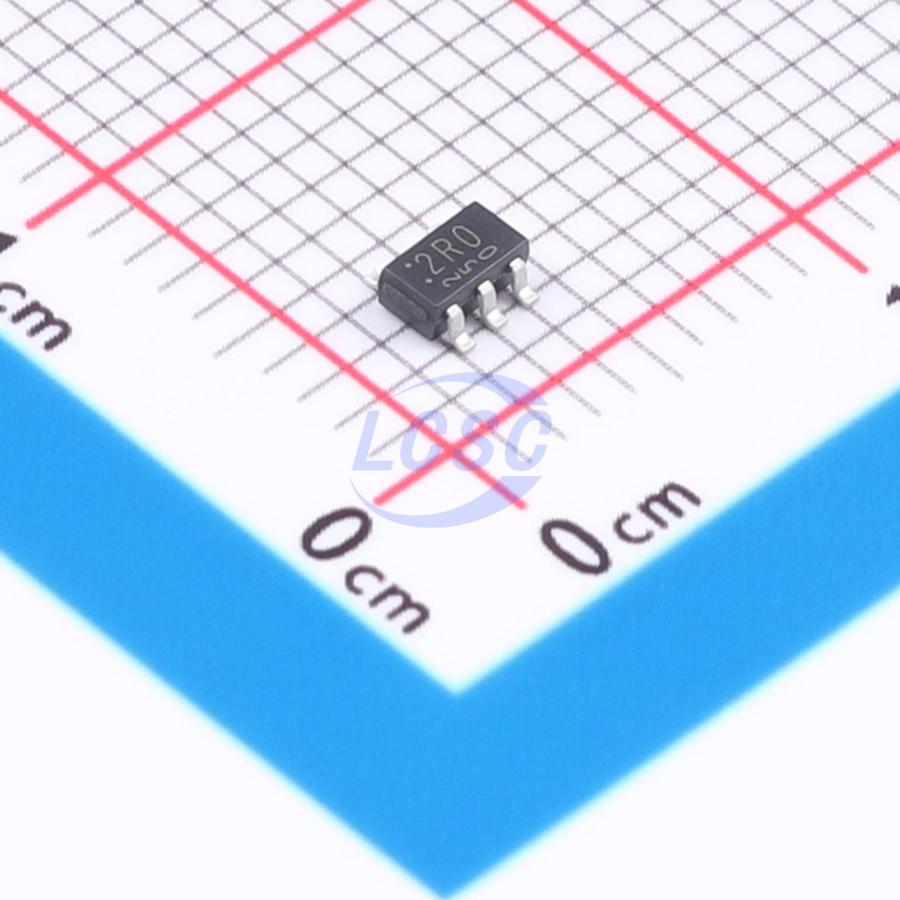

TCR3UF20A,LM(CT

The TCR3UF series are CMOS process single output voltage regulators with an on/off control input, featuring ultra low quiescent bias current and low dropout voltage. These voltage regulators are available in fixed output voltages between 0.8V and 5.0 V and capable of driving up to 300 mA. They feature Overcurrent protection, thermal shutdown function and auto- discharge option. The TCR3UF series is offered in general purpose package SMV 2.9mm × 2.8mm t 1.1mm (typ.) and has a low dropout voltage of 206 mV 3.3V output, IOUT = 300mA. As small ceramic input and output capacitors 1μF can be used with the TCR3UF series, these devices are ideal for portable applications that require high- density board assembly such as cellular phones, IoT equipment and wearable devices.

Applications

• Power IC developed for portable applications, IoT equipment and wearable devices

Key features

• Low quiescent bias current ( IB = 0.34μA (typ.) at IOUT = 0mA , output voltage up to 1.5 V)
• High Ripple rejection ratio 70 dB at 0.8V output
• Fast Load transient response - 51 / + 36mV at 0.8V output, IOUT = 1mA ⇔ 50mA
• Low dropout voltage VDO = 206mV (typ.) at 3.3V output, IOUT = 300mA
• Wide range output voltage line up VOUT = 0.8 to 5.0V
• High Vout accuracy ± 1.0% 1.8V ≤ VOUT
• Auto- discharge (TCR3UFxxA series)/ Non- discharge (TCR3UFxxB series) line up
• Overcurrent protection
• Thermal shutdown
• Inrush current reduction
• Pull down connection between CONTROL and GND
• Ceramic capacitors can be used (CN = 1μF SCUT = 1F
• General purpose package SMV(SCT- 25) (SC- 74A)
