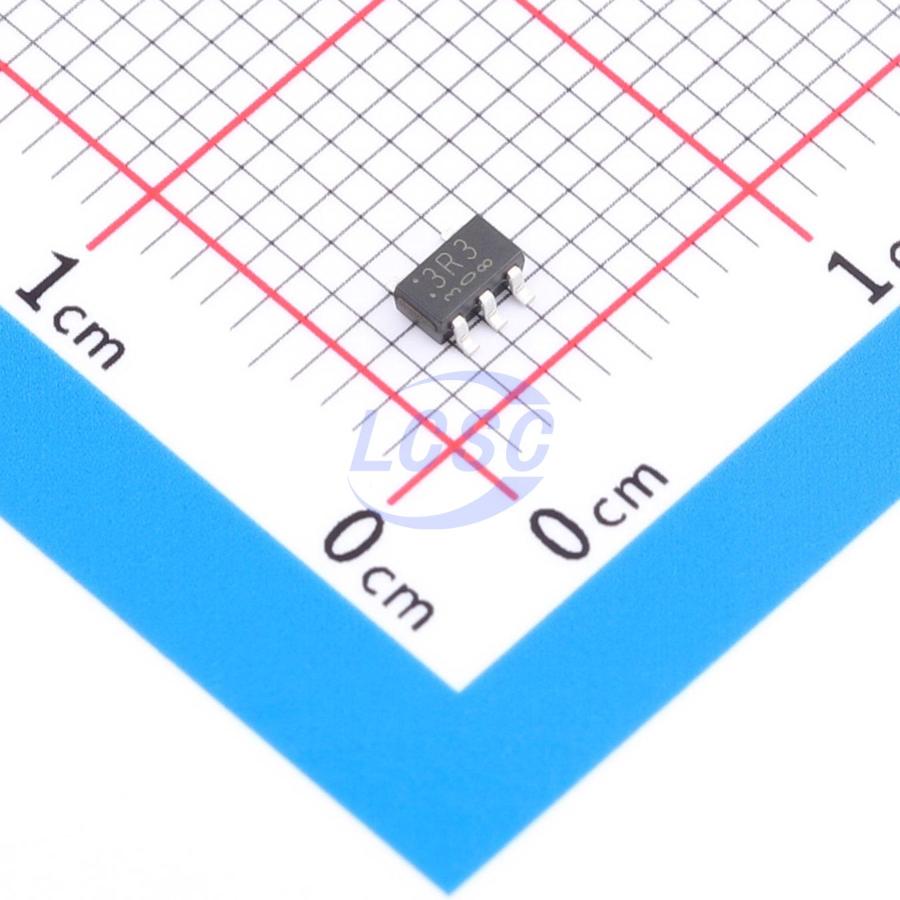

TCR3UF33A,LM(CT

The TCR3UF series are CMOS process single output voltage regulators with an on/off control input, featuring ultra low quiescent bias current and low dropout voltage. These voltage regulators are available in fixed output voltages between 0.8 V and 5.0 V and capable of driving up to 300 mA. They feature Overcurrent protection, thermal shutdown function and auto-discharge option. The TCR3UF series is offered in general purpose package SMV (2.9 mm × 2.8 mm; t 1.1 mm (typ.)) and has a low dropout voltage of 206 mV (3.3 V output, 10UT = 300 mA). As small ceramic input and output capacitors 1 μF can be used with the TCR3UF series, these devices are ideal for portable applications that require high-density board assembly such as cellular phones, IoT equipment and wearable devices.

Applications

• Portable applications
• IoT equipment
• Wearable devices

Key features

• Low quiescent bias current (lB = 0.34 μA (typ.) at IOUT = 0 mA, output voltage up to 1.5 V)
• High Ripple rejection ratio 70 dB at 0.8 V output
• Fast Load transient response -51/+36mV at 0.8 V output, 10UT = 1 mA ⇔ 50 mA
• Low dropout voltage VDO = 206 mV (typ.) at 3.3 V output, 10UT = 300 mA
• Wide range output voltage line up (VOUT = 0.8 to 5.0 V)
• High VOUT accuracy ±1.0 % (1.8 V ≤ VOUT)
• Auto-discharge (TCR3UFxxA series)/ Non-discharge (TCR3UFxxB series) line up
• Overcurrent protection
• Thermal shutdown
• Inrush current reduction
• Pull down connection between CONTROL and GND
• Ceramic capacitors can be used (CIN = 1 μF, COUT = 1 μF)
• General purpose package SMV(SOT-25) (SC-74A)
