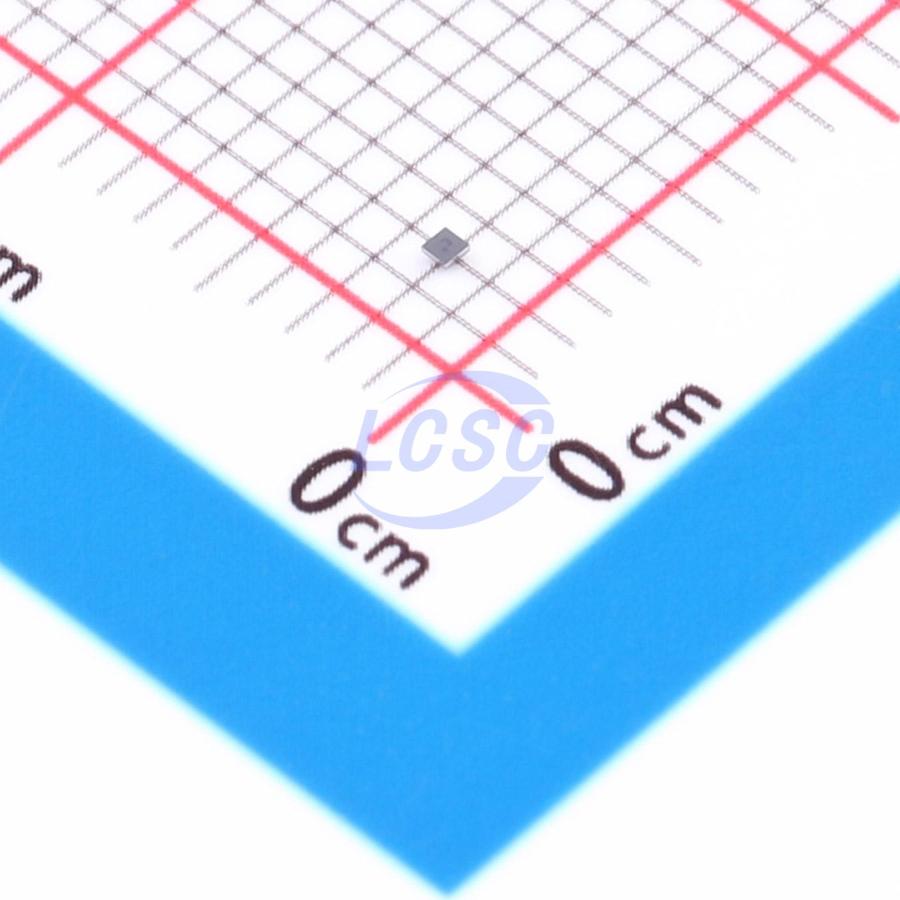

TCR3UG33A,LF

The TCR3UG series are CMOS general-purpose single-output voltage regulators with an on/off control input, featuring ultra low quiescent bias current and low dropout voltage. These voltage regulators are available in fixed output voltages between 0.8 V and 5.0 V and capable of driving up to 300 mA. They feature Over-current protection, Thermal Shutdown function and Auto-discharge option. The TCR3UG series is offered in the ultra small plastic mold package WCSP4F (0.645 mm×0.645 mm (typ.); t 0.33 mm (max)) and has a low dropout voltage of 155 mV (3.3 V output, lout = 300 mA). As small ceramic input and output capacitors 1 μF can be used with the TCR3UG series, these devices are ideal for portable applications that require high-density board assembly such as cellular phones, IoT equipment and wearable devices. Weight: 0.26 mg (typ.)

Applications

• Portable applications
• IoT equipment
• Wearable devices

Key features

• Ultra small package WCSP4F (0.645 mm×0.645 mm (typ.); t 0.33 mm (max)).
• Low quiescent bias current (IB(ON)=0.34 μA (typ.) at Iout=0 mA, output voltage up to 1.5 V)
• High ripple rejection ratio 70 dB at 0.8 V-output
• Fast load transient response ±60 mV at 0.8 V-output, Iout=1 mA⇔50 mA
• Low dropout voltage VDO=VIN - VOUT = 140 mV (typ.) at 3.3 V-output, Iout=300 mA
• Wide range output voltage line up (VOUT = 0.8 to 5.0 V)
• High VOUT accuracy ±1.0 % (1.8 V ≤ Vout)
• Auto-discharge (TCR3UGxxA series)/ Non-discharge (TCR3UGxxB series) line up
• Overcurrent protection
• Thermal shutdown function
• Inrush current protection circuit
• Pull down connection between CONTROL and GND
• Ceramic capacitors can be used (CIN = 1 μF, COUT = 1 μF)
