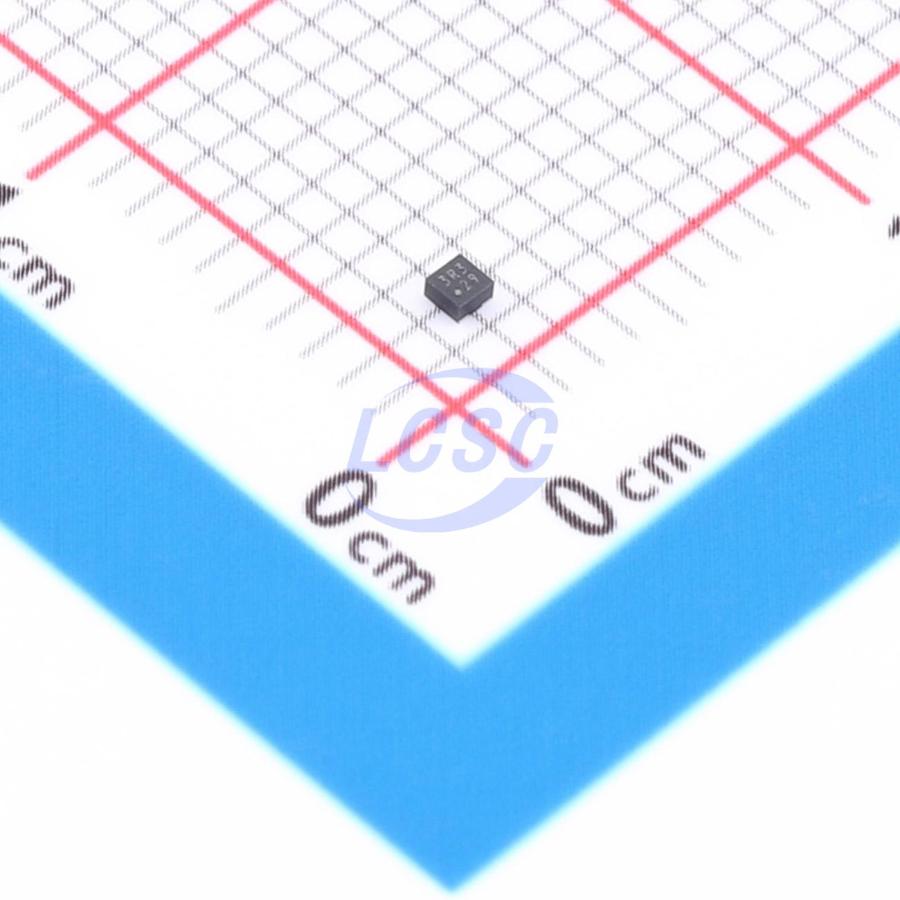

TCR3UM33A,LF(SE

The TCR3UM series are CMOS general-purpose single-output voltage regulators with an on/off control input, featuring ultra low quiescent bias current and low dropout voltage. These voltage regulators are available in fixed output voltages between 0.8 V and 5.0 V and capable of driving up to 300 mA. They feature Over-current protection, Thermal Shutdown function and Auto-discharge. The TCR3UM series is offered in the ultra small plastic mold package DFN4/DFN4E (1.0 mm x 1.0 mm; t 0.60 mm (max)) and has a low dropout voltage of 196 mV (3.3 V output, IOUT = 300 mA). As small ceramic input and output capacitors 1 μF can be used with the TCR3UM series, these devices are ideal for portable applications that require high-density board assembly such as cellular phones, IoT equipment and wearable devices. Weight: 1.3 mg (typ.)

Applications

• Power IC developed for portable applications, IoT equipment and wearable devices

Key features

• Ultra small package DFN4/DFN4E (1.0 mm × 1.0 mm; t 0.60 mm (max))
• Low quiescent bias current (ΔIB = 0.34 μA (typ.) at IOUT = 0 mA, output voltage up to 1.5 V)
• High Ripple rejection ratio 70 dB (typ.) at 0.8 V output
• Fast Load transient response -51/+36 mV at 0.8 V output, IOUT = 1 mA ⇔ 50 mA
• Low Dropout voltage VDO = 196 mV (typ.) at 3.3 V output, IOUT = 300 mA
• Wide range output voltage line up VOUT = 0.8 to 5.0 V
• High VOUT accuracy ± 1.0 % (1.8 V ≤ VOUT)
• Overcurrent protection
• Thermal Shutdown function
• Auto-discharge
• Inrush current protection circuit
• Pull down connection between CONTROL and GND
• Ceramic capacitors can be used (CIN = 1 μF, COUT = 1 μF)
