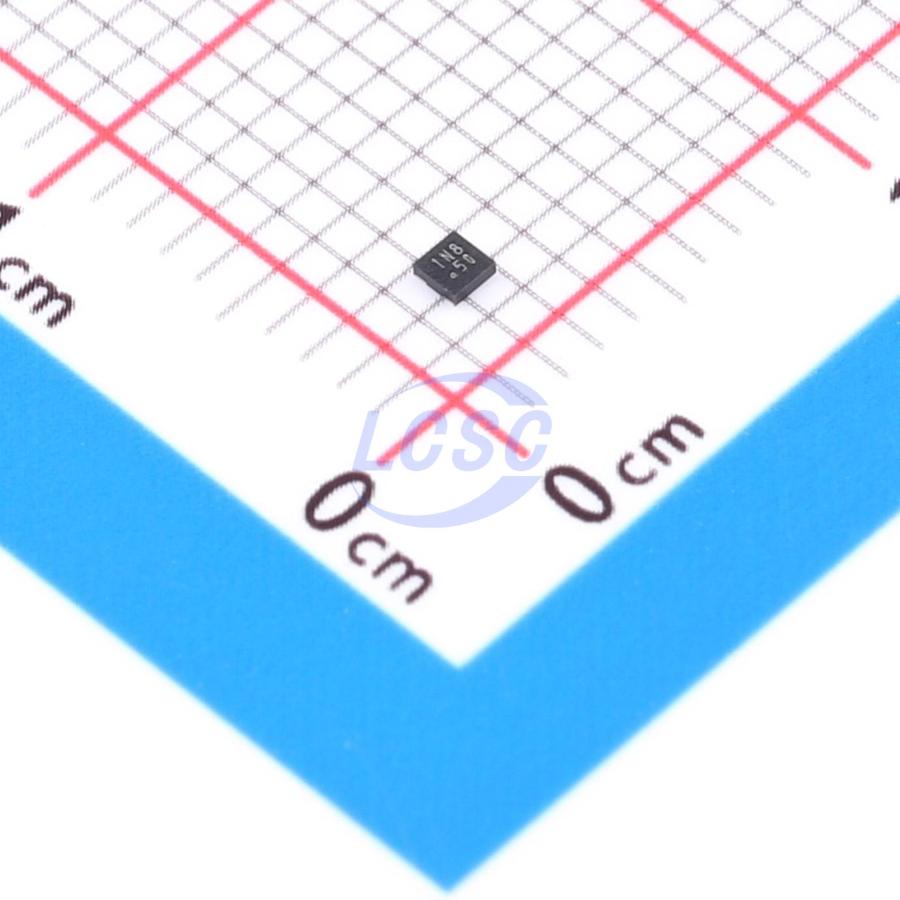

TCR5BM18A,L3F

The TCR5BM series are CMOS single-output voltage regulators with an on/off control input, featuring ultra low dropout voltage, high PSRR, low inrush current and fast load transient response. A differentiating feature is the use of a secondary bias rail as a reference voltage that allows ultra low dropout of 100 mV (Typ.) at I OUT=500 mA (1.1 V output, V BIAS=3.3 V). These voltage regulators are available in fixed output voltages between 0.8 V and 3.6 V, and capable of driving up to 500 mA. Other features include overcurrent protection, thermal shutdown, and Auto-discharge. The TCR5BM series are offered in the ultra small plastic mold package DFN5B (1.2 mm×1.2 mm; t 0.38 mm). As small ceramic input and output capacitors can be used with the TCR5BM series, these devices are ideal for portable applications that require high-density board assembly such as cellular phones. Weight : 1.4 mg (Typ.)

Applications

• Power IC developed for portable applications

Key features

• Low dropout voltage V DO=100 mV (Typ.) at 1.1 V output, V BIAS=3.3 V, I OUT=500 mA
• Low stand-by current (I BIAS(OFF)=1 μA (Max))
• Low quiescent bias current (I BIAS(ON)=19 μA (Typ.) at V BIAS=5.3 V, I OUT=0 mA)
• Wide range output voltage line up V OUT=0.8 to 3.6 V
• Overcurrent protection
• Thermal shutdown
• Inrush current reduction
• Under voltage lockout (TCR5BMxxA products)
• Auto-discharge
• Pull down connection between CONTROL and GND
• Ultra small package DFN5B (1.2 mm×1.2 mm; t 0.38 mm)
