TDKDatasheet (PDF)

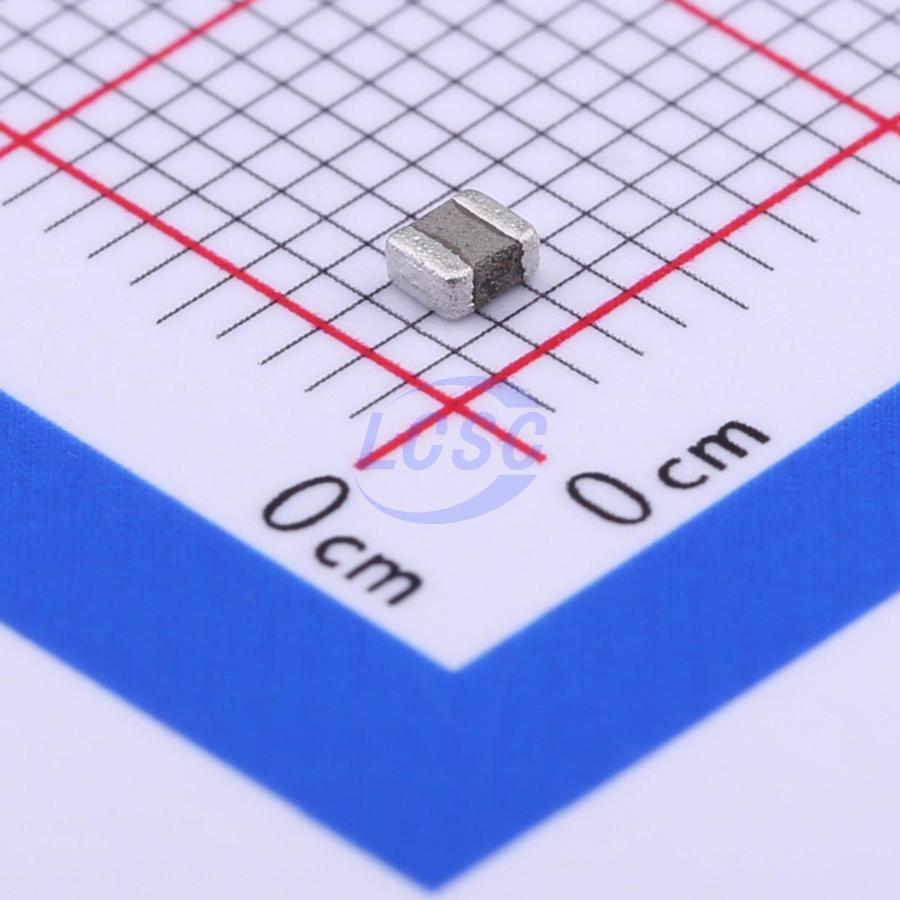

TFM201610ALMAR47MTAA
470nH 3.9A 28mΩ Nonstandard AEC-Q200
0806ROHS3 CompliantActive
FIXED IND 470nH 3.9A 28mΩ SMD,1.6x2mm
- Manufacturer
- TDK
- Manufacturer part #
- TFM201610ALMAR47MTAA
- Store part #
- C404807
- Package / case
- 0806
- Category
- Fixed Inductors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,045 in stock
#C404807
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.18 | ₹250.90 |
| 50+ | ₹39.69 | ₹1,984.50 |
| 150+ | ₹35.19 | ₹5,278.50 |
| 500+ | ₹29.60 | ₹14,800.00 |
| 3,000+ | ₹26.67 | ₹80,010.00 |
| 6,000+ | ₹25.18 | ₹1,51,080.00 |
5 × ₹50.18
₹250.90
excl. GST
₹296.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TFM201610ALMAR47MTAA
₹250.90 for 5 + GST
Specifications
- Current Rating
- 3.9A
- Inductance
- 470nH
- Tolerance
- ±20%
- Current - Saturation(Isat)
- 4.5A
- DC Resistance(DCR)
- 28mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Applications
- ADAS ECU, automotive cameras (rear-view, surround-view), radar, instrument clusters, automotive communication modules, and other power circuit applications
- Application Guide: Automotive (xEV), Automotive Infotainment Systems
Key features
- Excellent DC bias characteristics required for power circuit inductors, achieved through the use of metallic magnetic materials with high saturation flux density.
- Same product shape and terminal structure as standard chip components, offering excellent mounting stability and compatibility with universal pad patterns.
- Leakage flux minimized through closed magnetic circuit structure.
- AEC-Q200 compliant.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TFM201610GHM-R47MTAA#C89446TDK · 0806 | TDK | 0806 | 2,890 | ₹33.55 · 2,890 in stock | View |
 | TFM201610ALC-R47MTAA#C2045043TDK · 0806 | TDK | 0806 | On request | ₹23.47 · 0 in stock | View |
| ASMPM-0806-R47M-T#C2044403ABRACON · 0806 | ABRACON | 0806 | On request | ₹15.17 · 0 in stock | View | |
 | CIGW201610GHR47MLE#C307637Samsung Electro-Mechanics · 0806 | Samsung Electro-Mechanics | 0806 | On request | ₹8.00 · 0 in stock | View |
