THC63LVDF84C-MSRA

The THC63LVDF84C receiver supports wide temperature range as - 40 to +85℃, and wide frequency range as 8 to 112MHz. The THC63LVDF84C converts the four LVDS data streams back into 24bits of LVMOS data with falling edge clock. At a transmit clock frequency of 112MHz, 24bits of RGB data and 4bits of timing and control data (HSYNC, VSYNC, DE, etc.) are transmitted at an effective rate of 3.1Gbps.

Applications

• Medium and Small Size Panel
• Security Camera
• Multi Function Printer
• Machine Vision (Frame Grabber Board)
• Medical Equipment Monitor

Key features

• 1:7 LVDS to LVMOS Deserializer
• Operating Temperature Range: - 40 to +85°C
• No Special Start- up Sequence Required
• Spread Spectrum Clocking Tolerant up to 100kHz
• Frequency Modulation and + / - 2.5% Deviations
• Pixel Clock Range: 8 to 112MHz

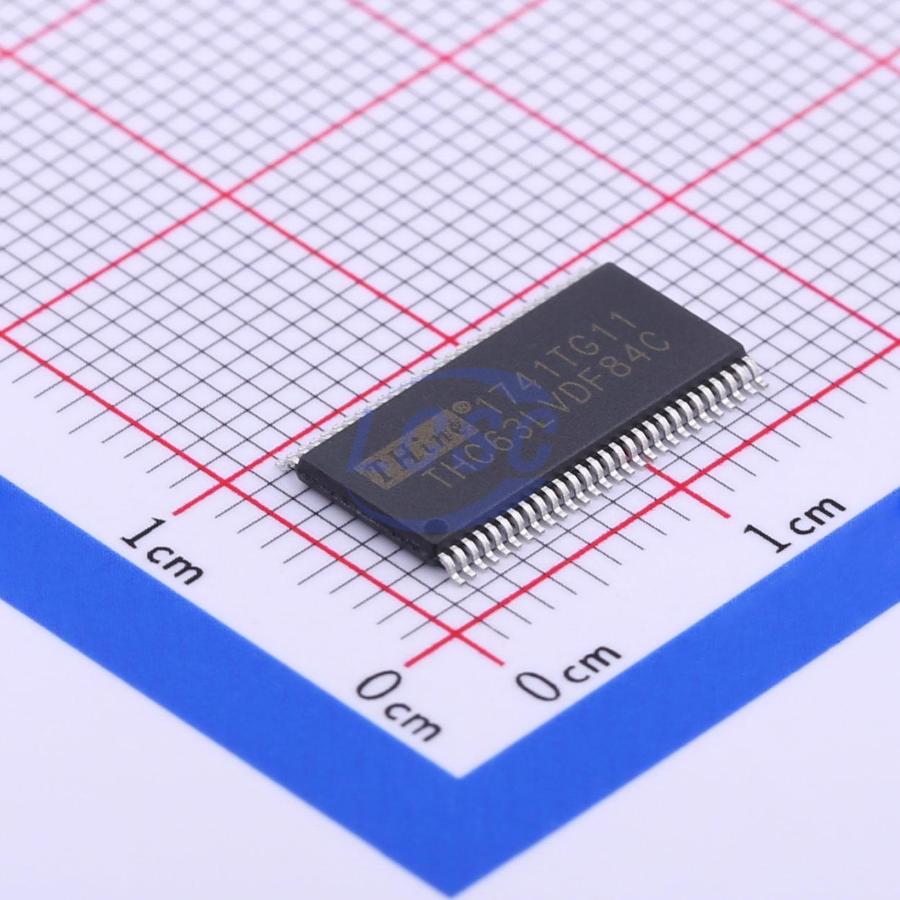

• 56pin TSSOP Package
• Power Down Mode
• Falling Edge Strobe Output
• EU RoHS Compliant
