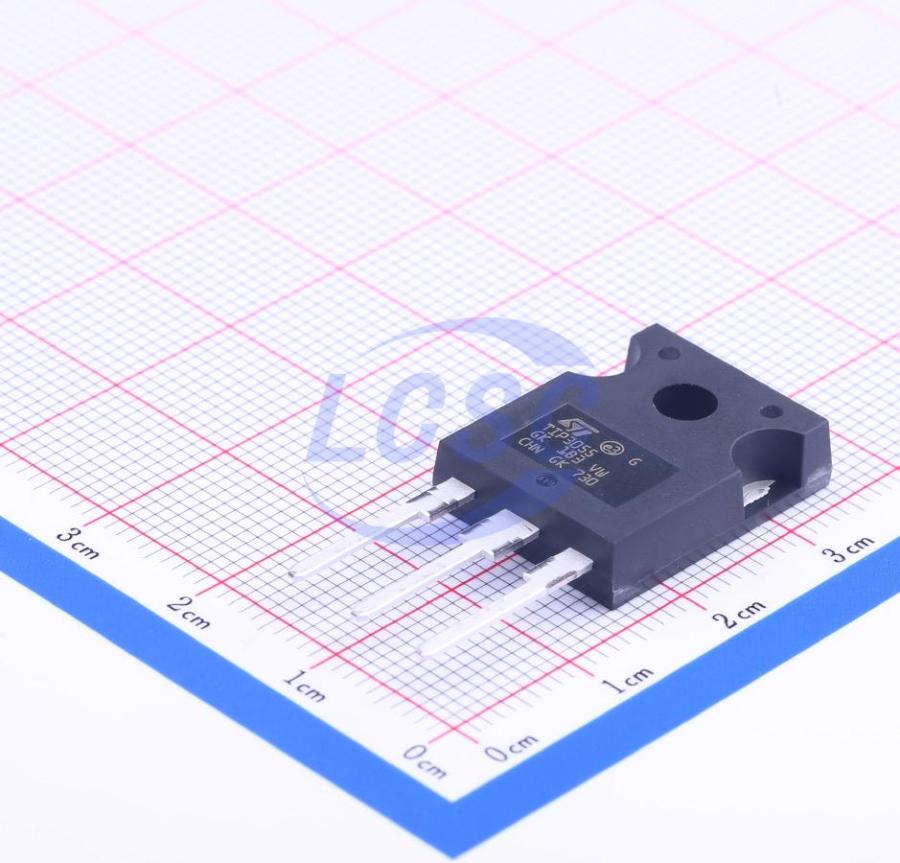

TIP3055

Bipolar (BJT) Transistor NPN 60V 15A 6W Through Hole TO-247AC-3

TO-247AC-3ROHS3 CompliantActive

TRANS NPN 60V 15A TO-247AC-3

Manufacturer: ST
Manufacturer part #: TIP3055
Store part #: C48859
Package / case: TO-247AC-3
Category: Single Bipolar Transistors
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

195 in stock

#C48859

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹137.64	₹137.64
10+	₹109.98	₹1,099.80
30+	₹96.26	₹2,887.80
100+	₹82.54	₹8,254.00
500+	₹74.48	₹37,240.00
1,000+	₹70.34	₹70,340.00

Quantity (min 1)

1 × ₹137.64

₹137.64

excl. GST

₹162.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 30 per tube

TIP3055

₹137.64 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -65℃~+150℃
Current - Collector Cutoff: 5mA
Collector - Emitter Voltage VCEO: 60V
Emitter-Base Voltage VEBO: 7V
DC Current Gain: 70
Current - Collector(Ic): 15A
Pd - Power Dissipation: 6W
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 1V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 30 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 6.667 g

Overview

The devices are manufactured in epitaxial-base planar technology and are suitable for audio, power linear and switching applications.

Applications

General purpose
Audio Amplifier

Key features

Low collector-emitter saturation voltage
Complementary NPN - PNP transistors

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	STIP3055#C49206896JSMSEMI · TO-247	JSMSEMI	TO-247	871	₹69.76 · 871 in stock	View
