HTCDatasheet (PDF)

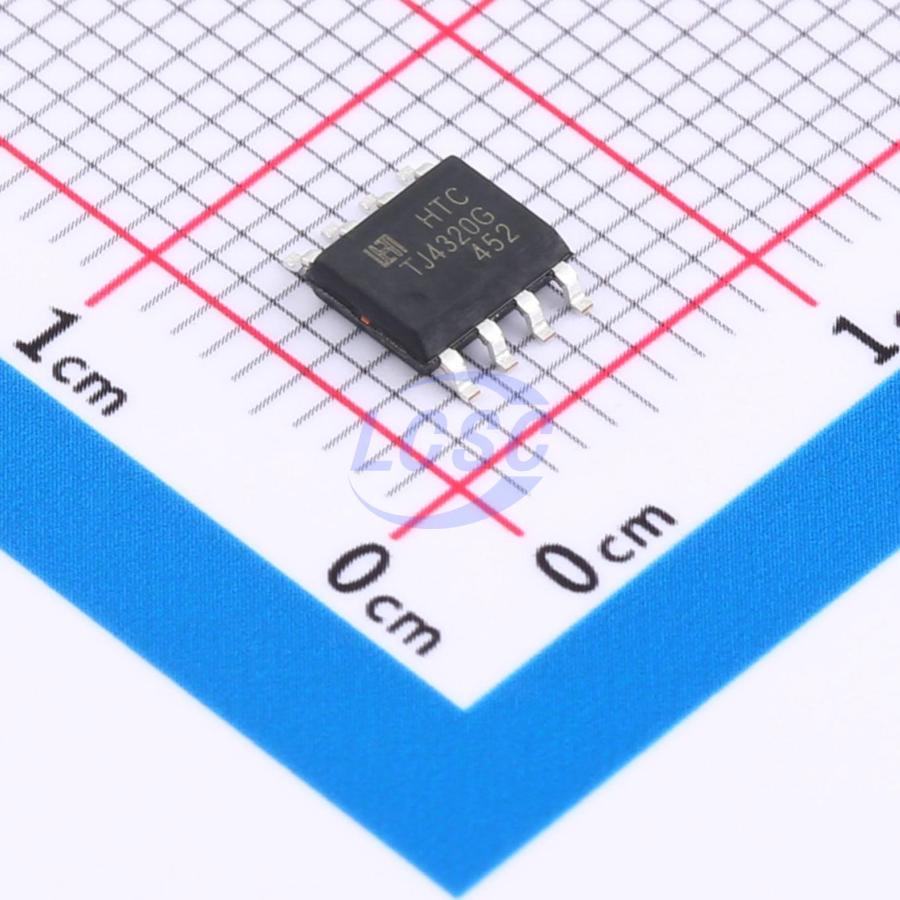

TJ4320GDP-ADJ
1V~5V Positive Adjustable SOP-8-EP Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOP-8-EPROHS CompliantActive
2A Ultra Low Dropout Linear Regulator
- Manufacturer
- HTC
- Manufacturer part #
- TJ4320GDP-ADJ
- Store part #
- C126089
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,13,630 in stock
#C126089
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.14 | ₹180.70 |
| 50+ | ₹28.47 | ₹1,423.50 |
| 150+ | ₹25.18 | ₹3,777.00 |
| 500+ | ₹21.08 | ₹10,540.00 |
| 2,500+ | ₹19.25 | ₹48,125.00 |
| 5,000+ | ₹18.15 | ₹90,750.00 |
5 × ₹36.14
₹180.70
excl. GST
₹213.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TJ4320GDP-ADJ
₹180.70 for 5 + GST
Specifications
- Output Voltage
- 1V~5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 400uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 2A
- Features
- Enable control;Adjustable soft-start;Operating status indication;Output discharge;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The TJ4320 series of high performance ultra-low dropout linear regulators operates from 2.5V to 5.5V input supply and provides ultra-low dropout voltage, high output current with low ground current. Wide range of preset output voltage options are available. These ultra-low dropout linear regulators respond fast to step changes in load which makes them suitable for low voltage micro-processor applications. The TJ4320 is developed on a CMOS process technology which allows low quiescent current operation independent of output load current. This CMOS process also allows the TJ4320 to operate under extremely low dropout conditions.
Applications
- LCD TVs and SETTOP Boxes
- Battery Powered Equipment
- Motherboards and Graphic Cards
- Microprocessor Power Supplies
- Peripheral Cards
- High Efficiency Linear Regulators
- Battery Chargers
Key features
- Ultra Low Dropout Voltage
- Compatible with low ESR MLCC as Input / Output Capacitor
- Good Line and Load Regulation
- Guaranteed Output Current of 2A
- Available in SOP8, SOP8-PP, TO-252-5L Packages
- Fixed Output: 1.0V, 1.2V, 1.5V, 1.8V, 2.5V, and 3.3V
- VOUT Power OK Signal
- Programmable Soft-Start Function
- Output Auto Discharge Function
- Over-Temperature/Over-Current Protection
