STDatasheet (PDF)

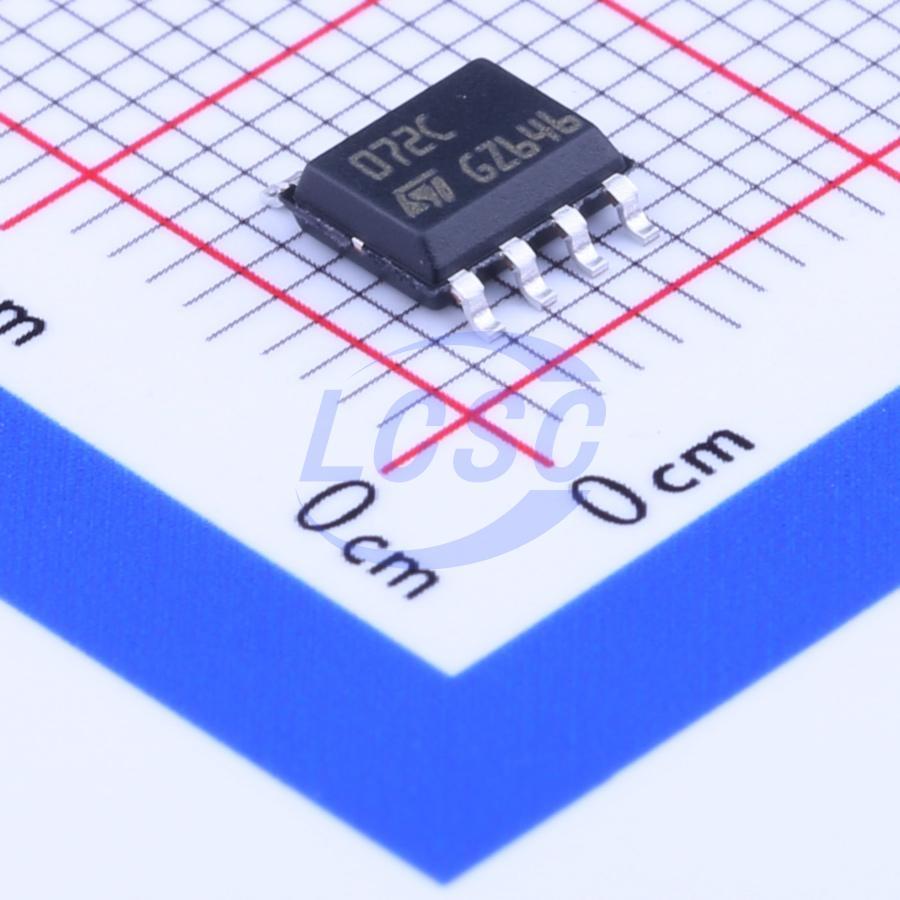

TL072CDT
40mA 2 3mV 16V/us 86dB 20pA 1.4mA 4MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Low noise JFET dual operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TL072CDT
- Store part #
- C6961
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,490 in stock
#C6961
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.54 | ₹107.70 |
| 50+ | ₹16.87 | ₹843.50 |
| 150+ | ₹14.59 | ₹2,188.50 |
| 500+ | ₹12.56 | ₹6,280.00 |
| 2,500+ | ₹10.86 | ₹27,150.00 |
| 5,000+ | ₹10.52 | ₹52,600.00 |
5 × ₹21.54
₹107.70
excl. GST
₹127.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL072CDT
₹107.70 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 16V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 4MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Single Supply
- 6V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.298 g
Overview
The TL072, TL072A and TL072B are high speed JFET input dual operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
Key features
- Wide common-mode (up to V_CC+) and differential voltage range
- Low input bias and offset current
- Low noise e_n = 15 nV/√Hz (typ)
- Output short-circuit protection
- High input impedance JFET input stage
- Low harmonic distortion: 0.01% (typical)
- Internal frequency compensation
- Latch-up free operation
- High slew rate: 16 V/μs (typ)
