UTCDatasheet (PDF)

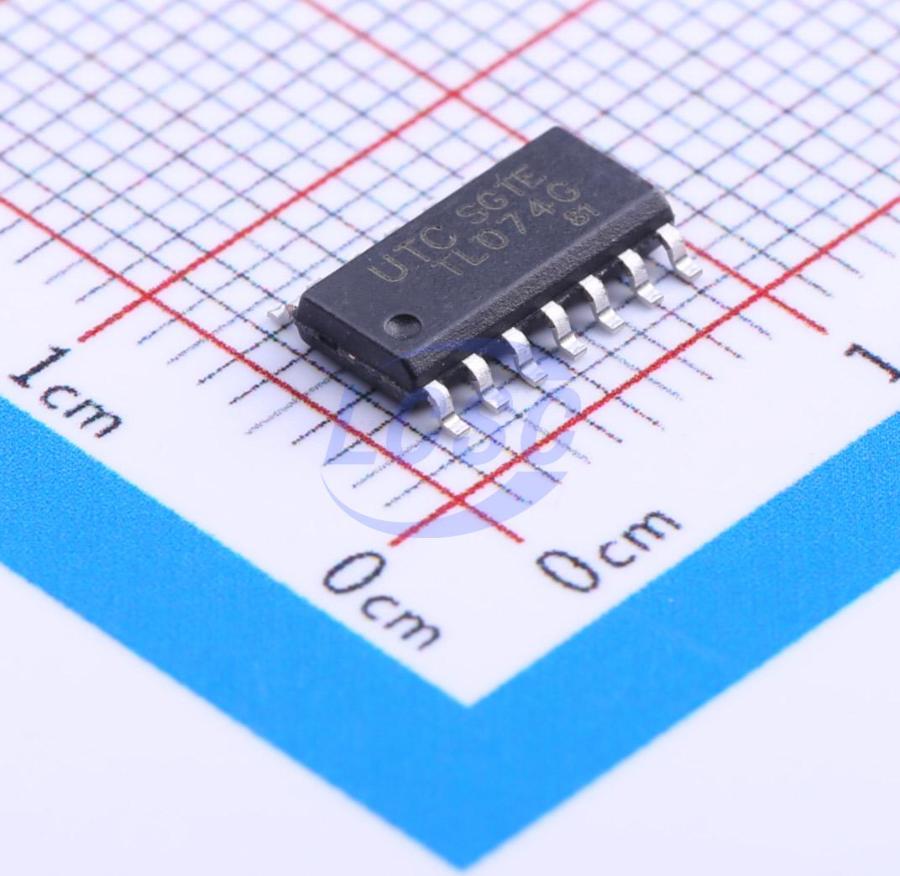

TL074G-S14-R
40mA Four channels 3mV 13V/us 20pA 86dB 1.4mA 3MHz SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
LOW NOISE QUAD J-FET OPERATIONAL AMPLIFIER
- Manufacturer
- UTC
- Manufacturer part #
- TL074G-S14-R
- Store part #
- C107255
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,195 in stock
#C107255
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.37 | ₹166.85 |
| 50+ | ₹26.14 | ₹1,307.00 |
| 150+ | ₹23.05 | ₹3,457.50 |
| 500+ | ₹19.17 | ₹9,585.00 |
| 2,500+ | ₹17.45 | ₹43,625.00 |
| 5,000+ | ₹16.42 | ₹82,100.00 |
5 × ₹33.37
₹166.85
excl. GST
₹196.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL074G-S14-R
₹166.85 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- 0℃~+70℃
- Ib - Input Bias Current
- 20pA
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
The UTC TL074 is a high speed J-FET input quad operational amplifier. It incorporates well matched, high voltage J-FET and bipolar transistors in a monolithic integrated circuit. The device features high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
Key features
- Low power consumption
- Wide common-mode (up to Vcc+) and differential voltage range
- Low input bias and offset current
- Low noise eN = 15nV / √Hz (typ)
- Output short-circuit protection
- High input impedance J-FET input stage
- Low harmonic distortion: 0.01% (typ)
- Internal frequency compensation
- Latch up free operation
- High slewrate: 13V/μs (typ)
