HGSEMIDatasheet (PDF)

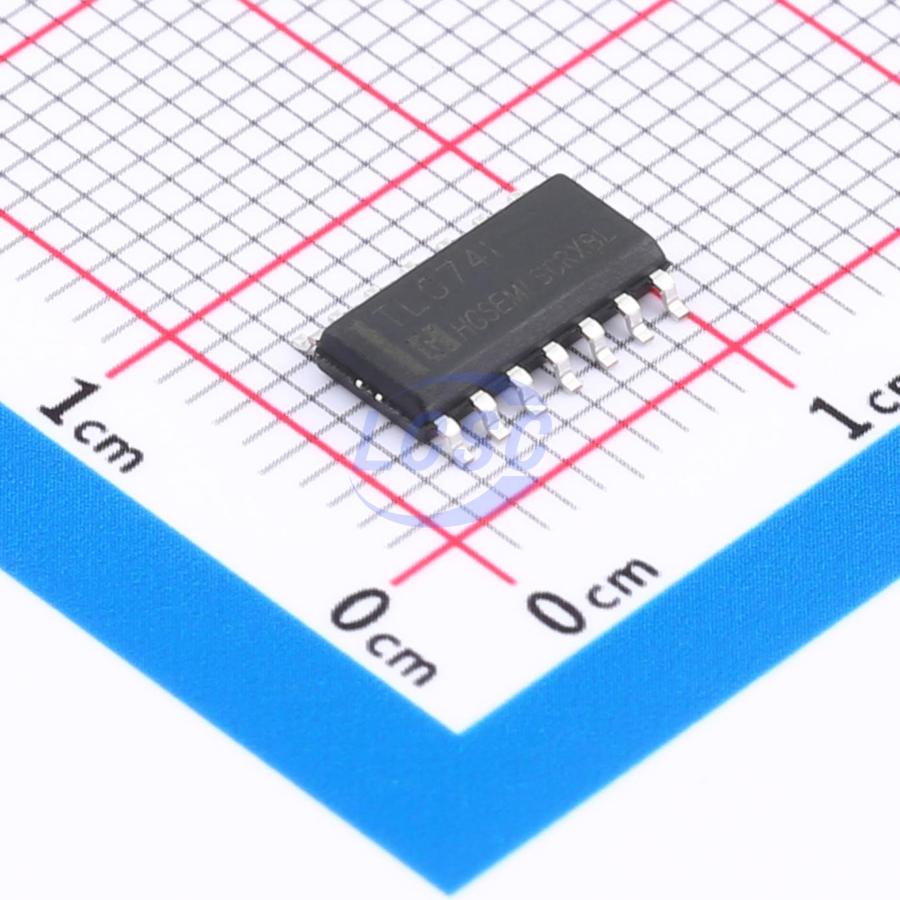

TL074IM/TR
Four channels 3mV 10V/us 85dB 2.5nA 1.4mA 3MHz SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
General-purpose J-FET input operational amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL074IM/TR
- Store part #
- C19193427
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,525 in stock
#C19193427
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.55 | ₹222.75 |
| 50+ | ₹35.11 | ₹1,755.50 |
| 150+ | ₹31.08 | ₹4,662.00 |
| 500+ | ₹26.04 | ₹13,020.00 |
| 2,500+ | ₹23.79 | ₹59,475.00 |
| 5,000+ | ₹22.44 | ₹1,12,200.00 |
5 × ₹44.55
₹222.75
excl. GST
₹262.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL074IM/TR
₹222.75 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 2.5nA
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.322 g
Overview
High-speed J-FET input quad operational amplifier constructed with high-voltage J-FETs and bipolar transistors. Features high slew rate, low input bias current and offset current, and very low offset voltage temperature coefficient. Operating temperature range: 0°C to 70°C for TL074C and -40°C to 85°C for TL074I. Available in DIP-14, SOP-14, and TSSOP-14 packages.
Key features
- Low power consumption
- Wide common-mode and differential-mode input voltage range
- Low input bias current and offset current
- Output short-circuit current protection
- High input impedance, high slew rate, high gain-bandwidth product up to 4MHz
