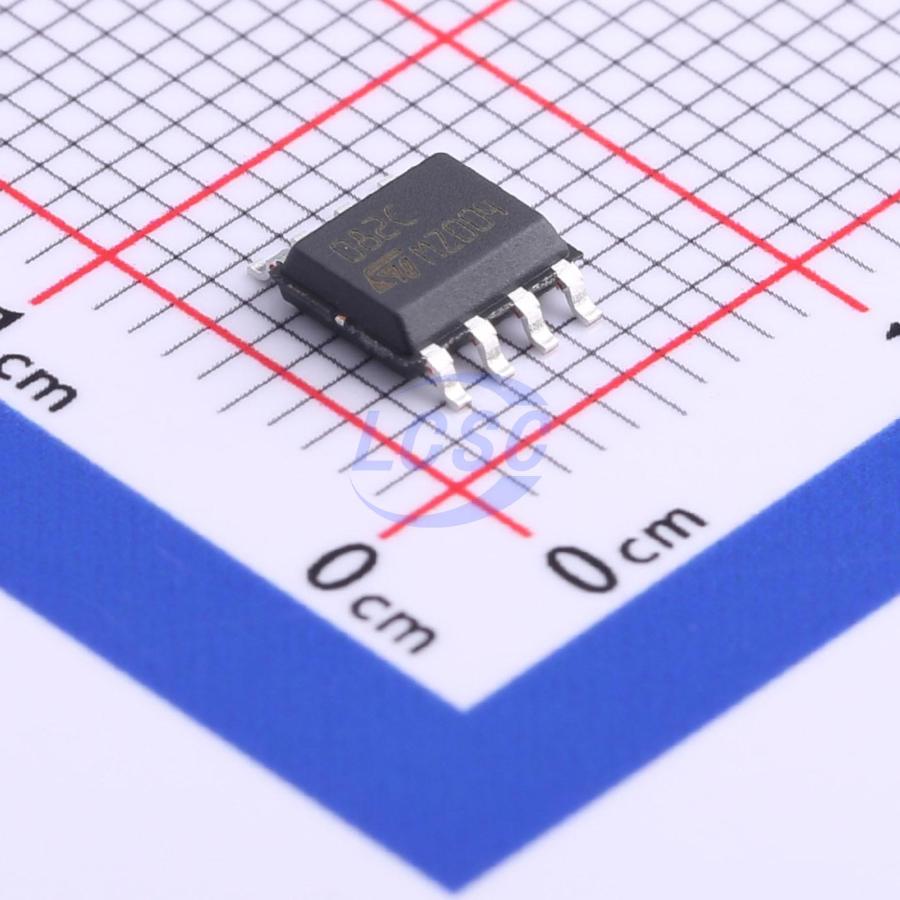

TL082CDT

40mA 2 3mV 16V/us 86dB 100pA 1.4mA 4MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS

SO-8ROHS3 CompliantActive

JFET dual operational amplifiers

Manufacturer: ST
Manufacturer part #: TL082CDT
Store part #: C13460
Package / case: SO-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,00,000 in stock

#C13460

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹16.22	₹81.10
50+	₹13.01	₹650.50
150+	₹11.39	₹1,708.50
500+	₹10.19	₹5,095.00
2,500+	₹9.22	₹23,050.00
5,000+	₹8.73	₹43,650.00

Quantity (min 5, multiples of 5)

5 × ₹16.22

₹81.10

excl. GST

₹95.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TL082CDT

₹81.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 3mV
Slew Rate: 16V/us
Input Offset Current(Ios): 5pA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 86dB
Ib - Input Bias Current: 100pA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 1.4mA
Gain Bandwidth Product: 4MHz
Features: Short-Circuit Protection;Built-in compensation;Latch-up suppression
Input Voltage Noise Density: 15nV/√Hz@1kHz
Single Supply: 6V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.303 g

Overview

The TL082, TL082A and TL082B are high speed JFET input dual operational amplifiers incorporating well matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
