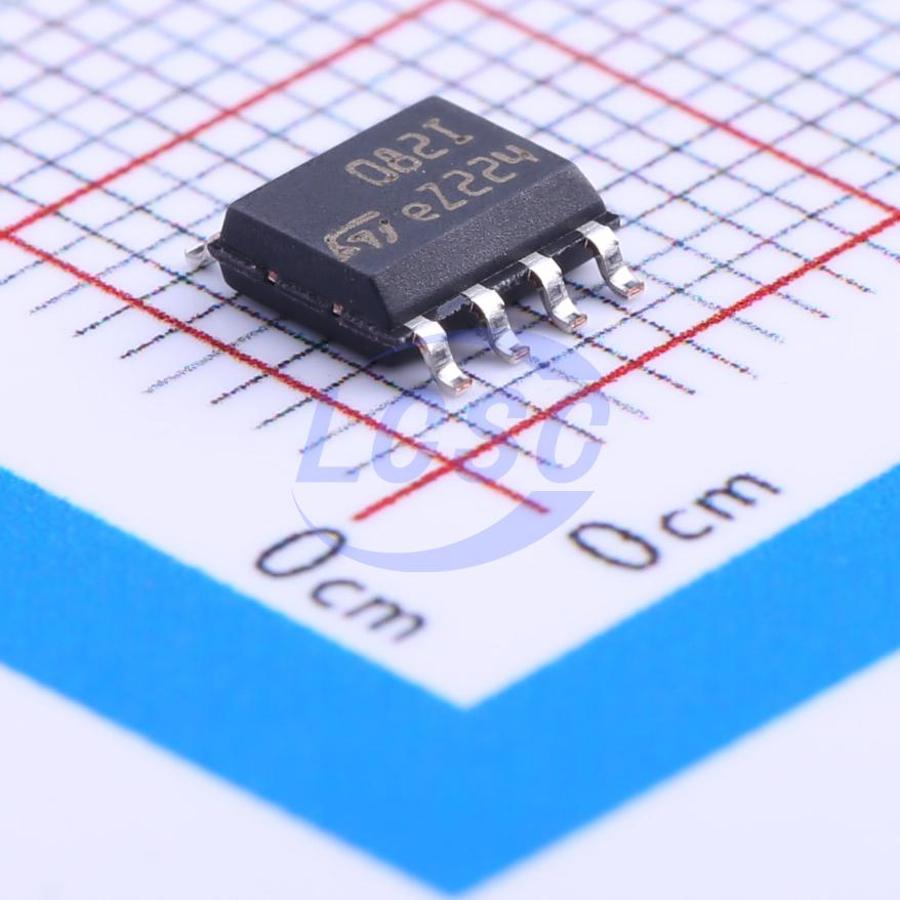

TL082IDT
40mA 2 3mV 16V/us 86dB 20pA 1.4mA 4MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
General purpose JFET dual operation amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TL082IDT
- Store part #
- C107647
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,00,000 in stock
#C107647
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.91 | ₹84.55 |
| 50+ | ₹13.47 | ₹673.50 |
| 150+ | ₹11.75 | ₹1,762.50 |
| 500+ | ₹9.47 | ₹4,735.00 |
| 2,500+ | ₹8.44 | ₹21,100.00 |
| 5,000+ | ₹7.92 | ₹39,600.00 |
5 × ₹16.91
₹84.55
excl. GST
₹99.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL082IDT
₹84.55 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 16V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 4MHz
- Features
- Built-in compensation;Short-Circuit Protection;Latch-up suppression
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- -18V~-6V;6V~18V
- Single Supply
- 6V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The TL082, TL082A and TL082B are high speed JFET input dual operational amplifiers incorporating well-matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset current, and low offset voltage temperature coefficient.
Key features
- Wide common-mode (up to Vcc+) and differential voltage range
- Low input bias and offset current
- Output short-circuit protection
- High input impedance JFET input stage
- Internal frequency compensation
- Latch up free operation
- High slew rate: 16 V/µs (typical)
