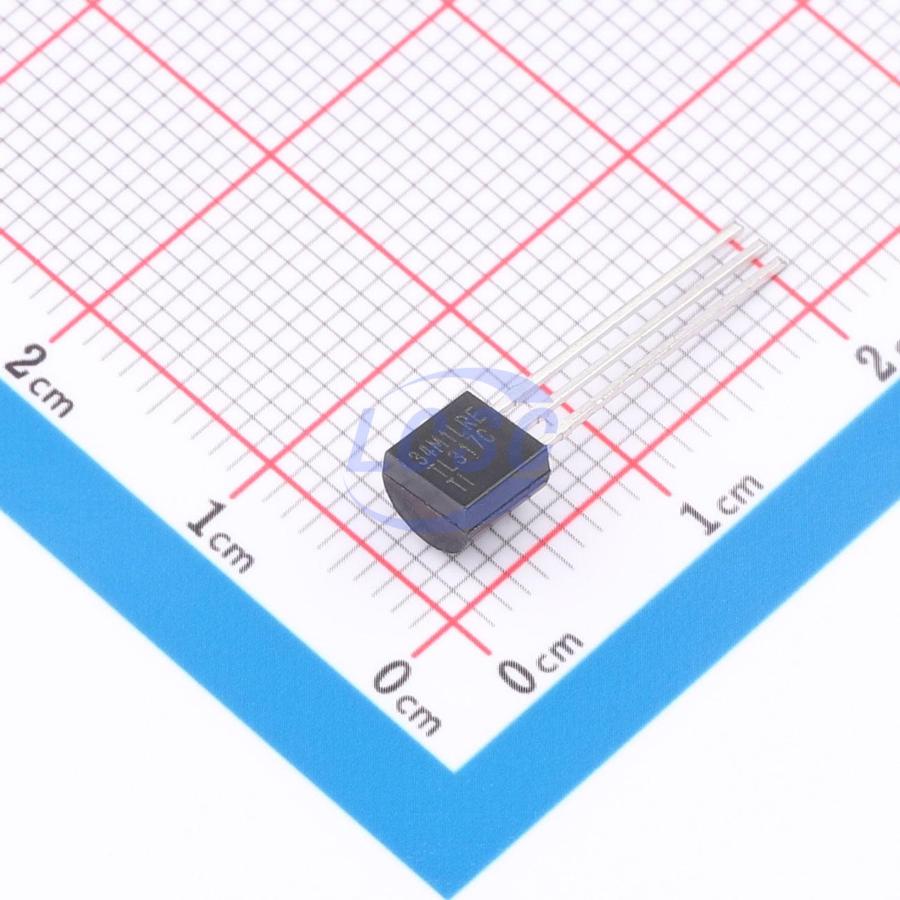

TL317CLP

The TL317 is an adjustable three-terminal positive-voltage regulator capable of supplying 100 mA over an output-voltage range of 1.25 V to 32 V. It is exceptionally easy to use and requires only two external resistors to set the output voltage. This regulator offers full overload protection available only in integrated circuits. Included on the chip are current-limiting and thermal-overload protection. All overload-protection circuitry remains fully functional, even when ADJUSTMENT is disconnected. Normally, no capacitors are required unless the device is situated far from the input filter capacitors, in which case an input bypass is required. An optional output capacitor can be added to improve transient response. ADJUSTMENT can be bypassed to achieve very high ripple rejection. In addition to replacing fixed regulators, the TL317 regulator is useful in a wide variety of other applications. Because the regulator is floating and sees only the input-to-output differential voltage, supplies of several hundred volts can be regulated as long as the maximum input-to-output differential is not exceeded. Its primary application is that of a programmable output regulator, but by connecting a fixed resistor between ADJUSTMENT and OUTPUT, this device can be used as a precision current regulator. Supplies with electronic shutdown can be achieved by clamping ADJUSTMENT to ground, programming the output to 1.25 V, where most loads draw little current.

Applications

• Power Supplies
• Portable Devices
• Computing and Servers
• Telecommunications
• HVAC: Heating, Ventilation, and Air Conditioning
• Desktop PC
• Digital Signage
• Programmable Logic Controller
• Appliances

Key features

• Output Voltage Range Adjustable From 1.25 V to 32 V When Used With an External Resistor Divider
• Output Current Capability of 100 mA
• Input Regulation Typically 0.01% Per Input-Voltage Change
• Output Regulation Typically 0.5%
• Ripple Rejection Typically 80 dB
