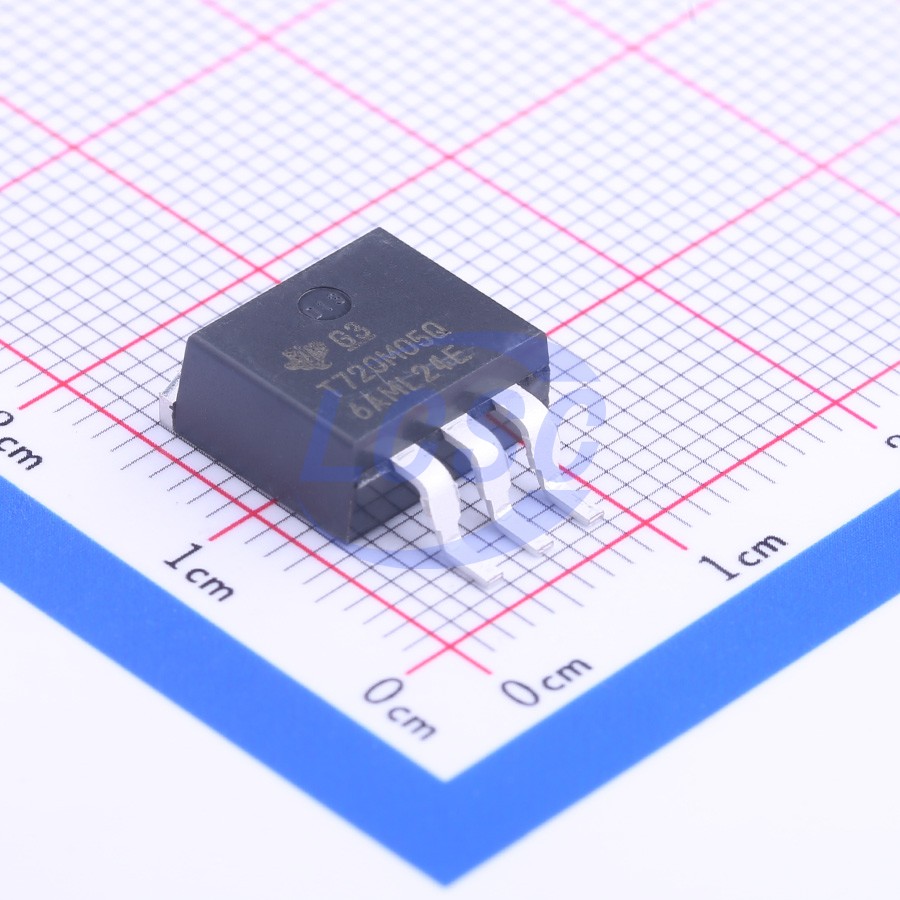

TL720M05QKTTRQ1

The TL720M05-Q1 devices are monolithic integrated low-dropout voltage regulators offered in 3-pin TO packages. They regulate an input voltage up to 45 V to VOUT of 5 V with 2% tolerance. The devices can drive loads up to 450 mA and are short-circuit proof. At overtemperature, the incorporated temperature protection turns off the TL720M05-Q1 devices. The input capacitor (CIN) compensates for line fluctuation. Using a resistor of approximately 1 Ω in series with CIN dampens the oscillation of input inductivity and input capacitance. The output capacitor (COUT) stabilizes the regulation circuit. Output is stable at COUT ≥ 22 μF and ESR ≤ 5 Ω, within the operating temperature range. The control amplifier compares a reference voltage to a voltage that is proportional to the output voltage and drives the base of the series transistor through a buffer. Saturation control as a function of the load current prevents any oversaturation of the power element. The device also incorporates a number of internal circuits for protection against: • Overload • Overtemperature • Reverse polarity

Applications

• Qualified for Automotive Applications
• Cluster
• Body Control Modules

Key features

• Qualified for Automotive Applications
• Output Voltage of 5 V ±2%
• Very Low Current Consumption
• Very Low Dropout Voltage
• Short-Circuit Protection
• Reverse-Polarity Protection
• ESD Protection >6 kV
