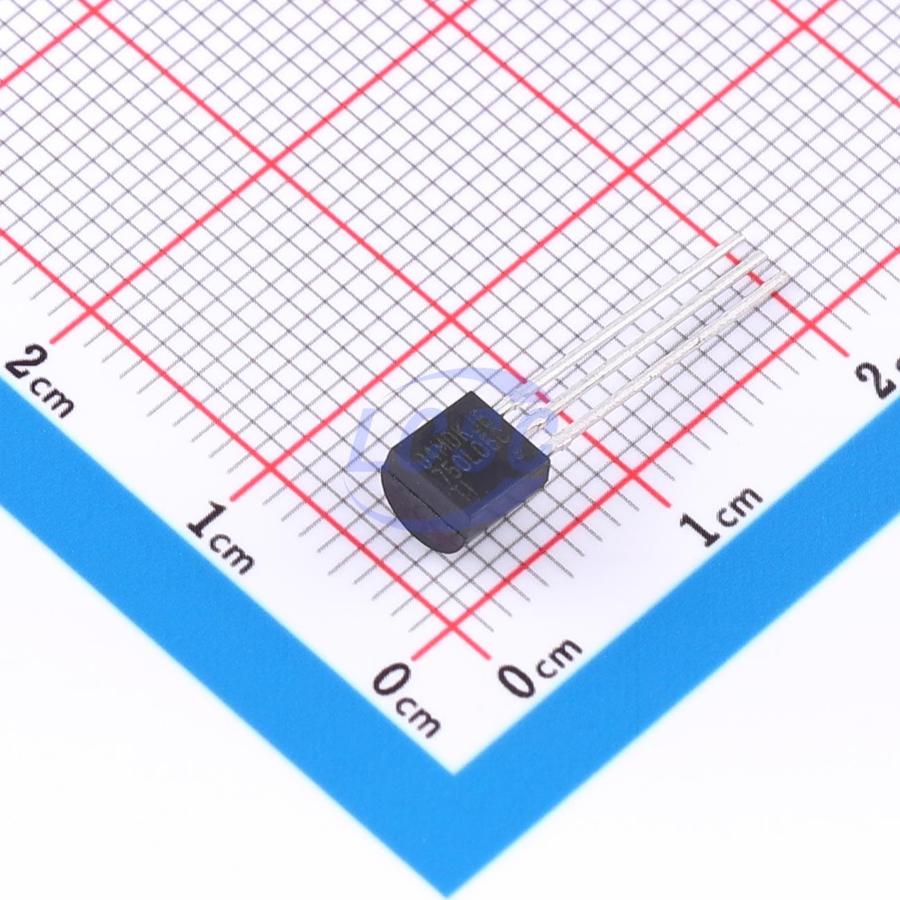

TL750L05CLP
5V Positive Fixed TO-92-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-3ROHS3 CompliantActive
150mA, 26V, Low Dropout Regulator
- Manufacturer
- TI
- Manufacturer part #
- TL750L05CLP
- Store part #
- C2868835
- Package / case
- TO-92-3
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C2868835
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹746.28 | ₹746.28 |
| 10+ | ₹727.20 | ₹7,272.00 |
| 30+ | ₹714.55 | ₹21,436.50 |
| 100+ | ₹701.90 | ₹70,190.00 |
1 × ₹746.28
₹746.28
excl. GST
₹880.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
TL750L05CLP
₹746.28 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Positive
- Operating Voltage
- 26V
- Output Current
- 150mA
- Features
- Input overvoltage protection;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.28 g
Overview
The TL750L and TL751L series of fixed-output voltage regulators offer 5-V, 8-V, 10-V, and 12-V options. The TL751L series also has an enable (ENABLE) input. When ENABLE is high, the regulator output is placed in the high-impedance state. This gives the designer complete control over power up, power down, or emergency shutdown. The TL750L and TL751L series are low-dropout positive-voltage regulators specifically designed for battery-powered systems. These devices incorporate overvoltage and current-limiting protection circuitry, along with internal reverse-battery protection circuitry to protect the devices and the regulated system. The series is fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current during full-load conditions makes these devices ideal for standby power systems.
Key features
- Very Low Dropout Voltage, Less Than 0.6 V at 150 mA
- Very Low Quiescent Current
- TTL- and CMOS-Compatible Enable on TL751L Series
- Reverse Transient Protection Down to –50 V
- Internal Thermal-Overload Protection
- Overvoltage Protection
- Internal Overcurrent-Limiting Circuitry
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP7381-50V-A#C3746499DIODES · TO-92 | DIODES | TO-92 | 2,330 | ₹21.72 · 2,330 in stock | View |
 | QN7550A-1#C45360138QNHCHIP · TO-92 | QNHCHIP | TO-92 | 280 | ₹8.45 · 280 in stock | View |
 | HT7550A-1Q#C47020955QNHCHIP · TO-92 | QNHCHIP | TO-92 | 540 | ₹8.44 · 540 in stock | View |
 | LT1121IZ-5#PBF#C661137ADI · TO-92 | ADI | TO-92 | 40 | ₹1,063.02 · 40 in stock | View |
 | TL750L05CLPR#C2863143TI · TO-92-3 | TI | TO-92-3 | On request | ₹75.87 · 0 in stock | View |
