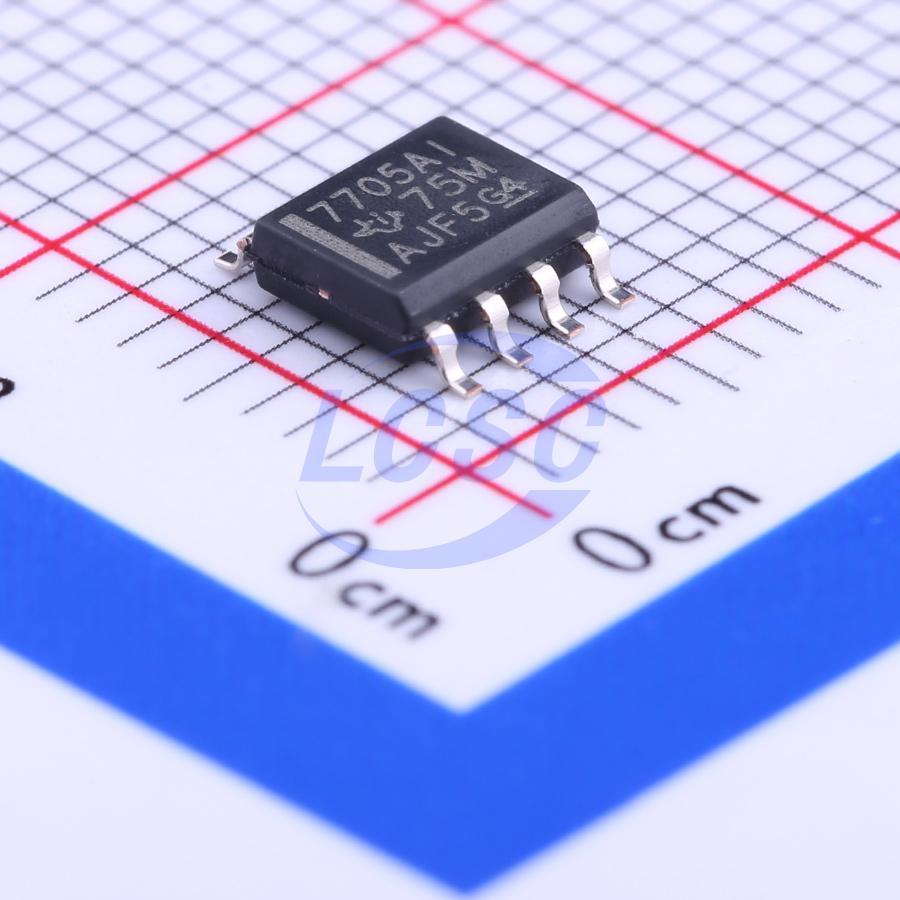

TL7705AIDR
1.2ms Manual reset input Active Low 3.5V~18V 1 SOIC-8 Supervisors RoHS
Supply-Voltage Supervisors
- Manufacturer
- TI
- Manufacturer part #
- TL7705AIDR
- Store part #
- C53106
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
878 in stock
#C53106
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹189.67 | ₹189.67 |
| 10+ | ₹150.73 | ₹1,507.30 |
| 30+ | ₹129.20 | ₹3,876.00 |
| 100+ | ₹93.96 | ₹9,396.00 |
| 500+ | ₹83.31 | ₹41,655.00 |
| 1,000+ | ₹78.31 | ₹78,310.00 |
1 × ₹189.67
₹189.67
excl. GST
₹223.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL7705AIDR
₹189.67 for 1 + GST
Specifications
- Reset Timeout
- 1.2ms
- output type
- Open-drain
- Operating Temperature
- -40℃~+85℃
- Function
- Manual reset input
- Reset Active Level
- Active Low
- Voltage - Supply
- 3.5V~18V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.55V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The TL77xxA family of integrated-circuit supply-voltage supervisors is designed specifically for use as reset controllers in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which outputs RESET and RESET go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, RESET and RESET go active.
Applications
- Computers
- Tablets
- Smart Phones
- Servers
- Music Players
Key features
- Power-On Reset Generator
- Automatic Reset Generation After Voltage Drop
- Wide Supply-Voltage Range
- Precision Voltage Sensor
- Temperature-Compensated Voltage Reference
- Externally Adjustable Pulse Duration
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL7705ACDR#C350569TI · SOIC-8 | TI | SOIC-8 | 3,062 | ₹220.99 · 3,062 in stock | View |
