TIDatasheet (PDF)

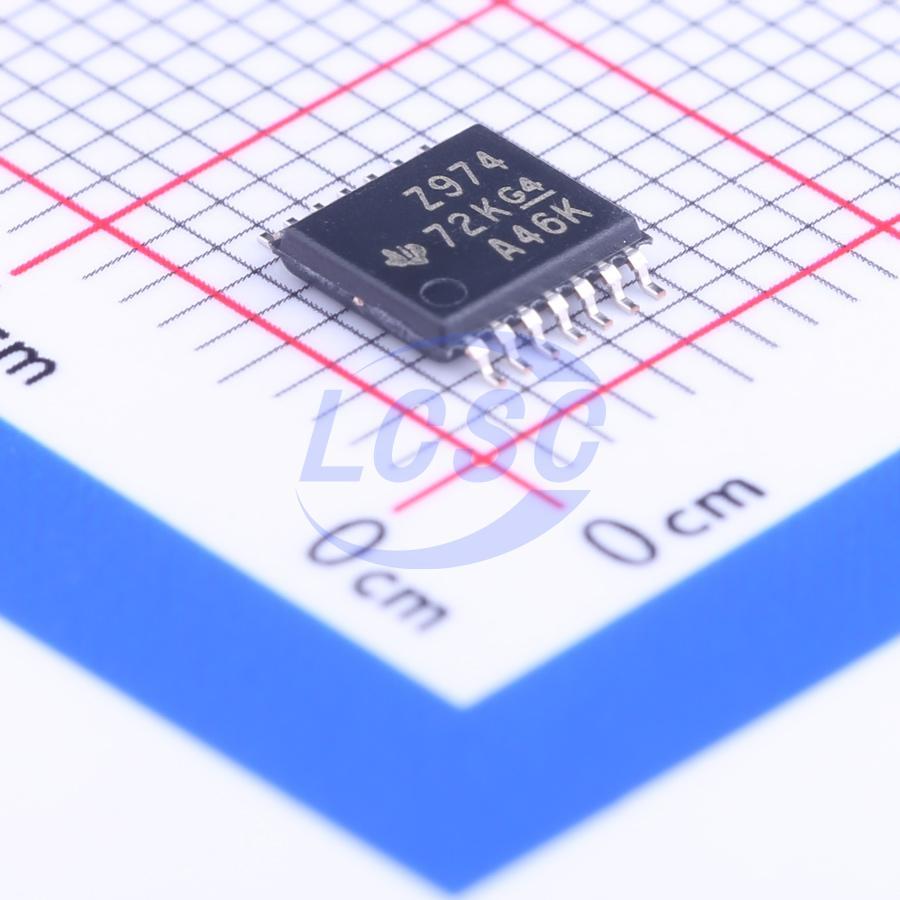

TL974IPWR
1.4mA 4 4mV 5V/us 85dB 750nA 2.8mA 12MHz Rail-to-rail output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
Low-Noise Rail-to-Rail Output Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL974IPWR
- Store part #
- C128406
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,052 in stock
#C128406
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹127.13 | ₹127.13 |
| 10+ | ₹102.35 | ₹1,023.50 |
| 30+ | ₹89.96 | ₹2,698.80 |
| 100+ | ₹77.58 | ₹7,758.00 |
| 500+ | ₹70.20 | ₹35,100.00 |
| 1,000+ | ₹66.28 | ₹66,280.00 |
1 × ₹127.13
₹127.13
excl. GST
₹150.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TL974IPWR
₹127.13 for 1 + GST
Specifications
- Output Current
- 1.4mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 150nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 750nA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 2.8mA
- Gain Bandwidth Product
- 12MHz
- Input Voltage Noise Density
- 4nV/√Hz@100kHz
- Dual Supply
- -6V~-1.35V;1.35V~6V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 2.7V~12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
The TL97x family of single, dual, and quad operational amplifiers operates at voltages as low as ±1.35 V and features output rail-to-rail signal swing. The TL97x boast characteristics that make them particularly well suited for portable and battery-supplied equipment. Very low noise and low distortion characteristics make them ideal for audio preamplification. The TL971 is housed in the space-saving 5-pin SOT23 package, which simplifies board design because of the ability to be placed anywhere (outside dimensions are 2.8 mm × 2.9 mm).
Applications
- Portable Equipment
- Music Players
- Tablets
- Cell Phones
- Instrumentation and Sensors
- Professional Audio Circuits
Key features
- Rail-to-Rail Output Voltage Swing: ±2.4 V at VCC = ±2.5 V
- Very Low Noise Level: 4 nV/√Hz
- Ultra-Low Distortion: 0.003%
- High Dynamic Features: 12 MHz, 5 V/μs
- Operating Range: 2.7 V to 12 V
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22 – 2000-V Human-Body Model, 1500-V Charged-Device Model
