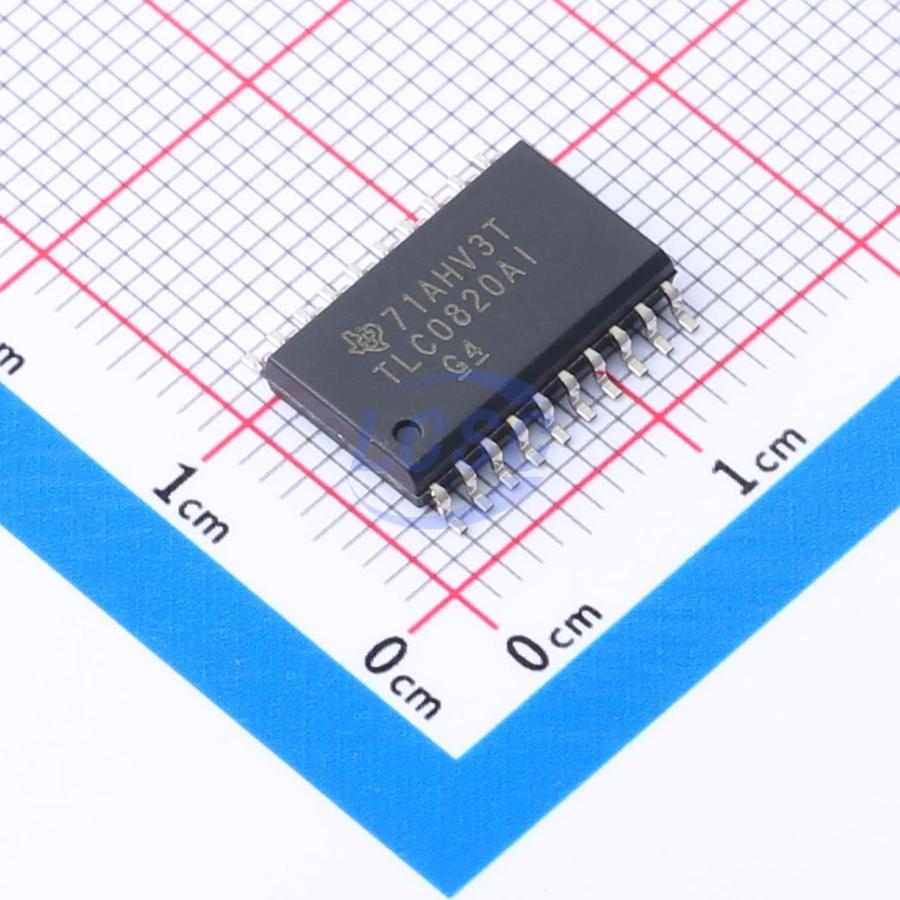

TLC0820AIDWR

Parallel port 4.5V~5.5V SOIC-20-300mil Analog to Digital Converters (ADC) RoHS

SOIC-20-300milROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TLC0820AIDWR
Store part #: C2670327
Package / case: SOIC-20-300mil
Category: Analog to Digital Converters (ADC)
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,848 in stock

#C2670327

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹1,617.27	₹1,617.27
10+	₹1,472.16	₹14,721.60
30+	₹1,379.51	₹41,385.30
100+	₹1,289.67	₹1,28,967.00

Quantity (min 1)

1 × ₹1,617.27

₹1,617.27

excl. GST

₹1,908.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TLC0820AIDWR

₹1,617.27 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Interface: Parallel port
Voltage - Supply: 4.5V~5.5V
Number of Channels: 1
Integral non - linearity: 1LSB
Voltage Reference: External
Clock/Oscillator: Built-in
Resolution(Bits): -;8
ADC architecture: Flash

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.62 g

Overview

The TLC0820AC and the TLC0820AI are Advanced LinCMOS 8-bit analog-to-digital converters each consisting of two 4-bit flash converters, a 4-bit digital-to-analog converter, a summing (error) amplifier, control logic, and a result latch circuit. The modified flash technique allows low-power integrated circuitry to complete an 8-bit conversion in 1.18 μs over temperature. The on-chip track-and-hold circuit has a 100-ns sample window and allows these devices to convert continuous analog signals having slew rates of up to 100 mV/μs without external sampling components. TTL-compatible 3-state output drivers and two modes of operation allow interfacing to a variety of microprocessors.
