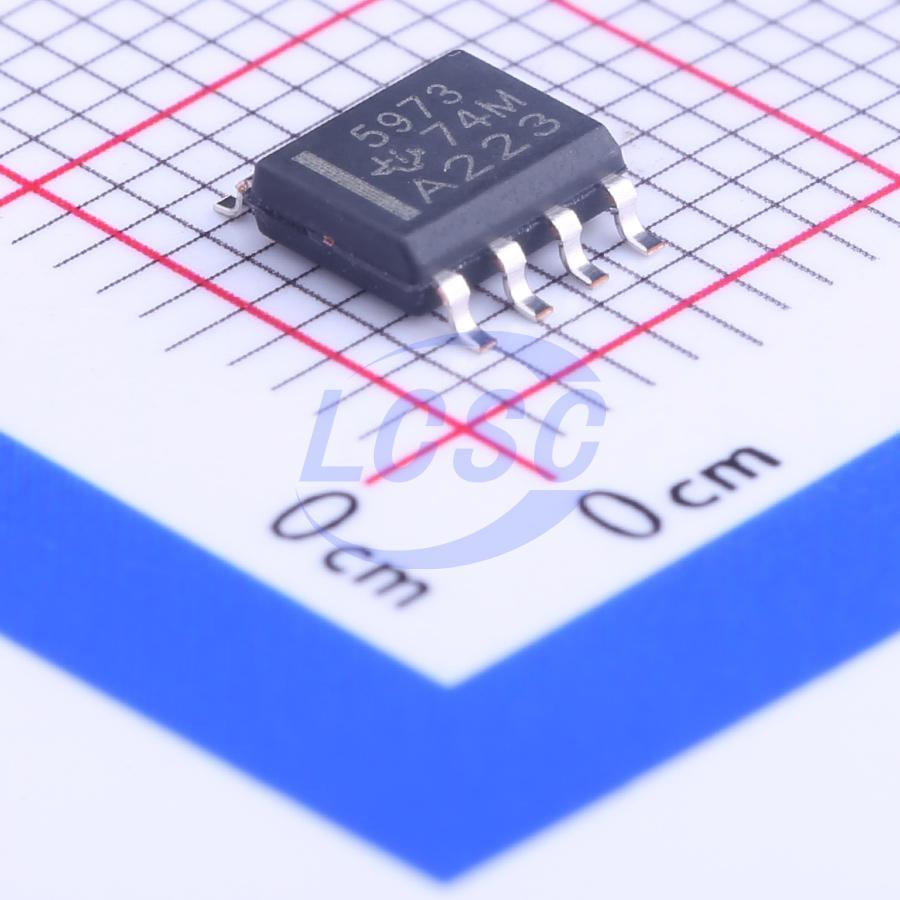

TLC5973DR
50mA 12MHz PWM 3 DC-DC 21V 3V~6V SOIC-8 LED Drivers RoHS
3-channel, 12-bit, Pulse Width Modulation (PWM) constant-current Light Emitting Diode (LED) driver with single-wire interface (EasySet)
- Manufacturer
- TI
- Manufacturer part #
- TLC5973DR
- Store part #
- C122567
- Package / case
- SOIC-8
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,160 in stock
#C122567
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.27 | ₹75.27 |
| 10+ | ₹58.74 | ₹587.40 |
| 30+ | ₹51.78 | ₹1,553.40 |
| 100+ | ₹43.08 | ₹4,308.00 |
| 500+ | ₹39.16 | ₹19,580.00 |
| 1,000+ | ₹36.77 | ₹36,770.00 |
1 × ₹75.27
₹75.27
excl. GST
₹88.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLC5973DR
₹75.27 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 50mA
- Frequency - Switching
- 12MHz
- Dimming
- PWM
- Number of Channels
- 3
- Type
- DC-DC
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 21V
- Constant Current Accuracy
- 3%
- Voltage - Input(DC)
- 3V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The TLC5973 is an easy-to-use, 3-channel, 50mA constant sink LED driver. This single-wire, 3Mbps serial interface (EasySet) provides a solution that minimizes wiring costs. The LED driver offers 12-bit pulse width modulation (PWM) resolution. The display repetition rate is achieved at 2.9kHz (typical) using an integrated 12MHz grayscale (GS) clock oscillator. This driver also provides unlimited cascading capability. All output constant sink currents can be set by an external resistor. The TLC5973 has an internal shunt regulator that can be used for applications with higher VCC supply voltages.
Applications
- RGB LED cluster display
Key features
- 3 constant current sink channels
- Current handling capability: 2mA to 35mA per channel (VCC ≤ 4.0V); 2mA to 50mA per channel (VCC > 4.0V)
- PWM grayscale (GS) control: 12-bit (4096 steps)
- Single-wire interface (EasySet)
- Supply (VCC) voltage range: 3V to 6V
- OUT pin maximum voltage: up to 21V
- Integrated shunt regulator
- Maximum data transfer rate: 3Mbps
- Internal GS clock oscillator: 12MHz (typical)
- Display refresh rate: 2.9kHz (typical)
- Output delay switching to prevent inrush current
- Unlimited device cascading
- Operating temperature: -40°C to 85°C
