InfineonDatasheet (PDF)

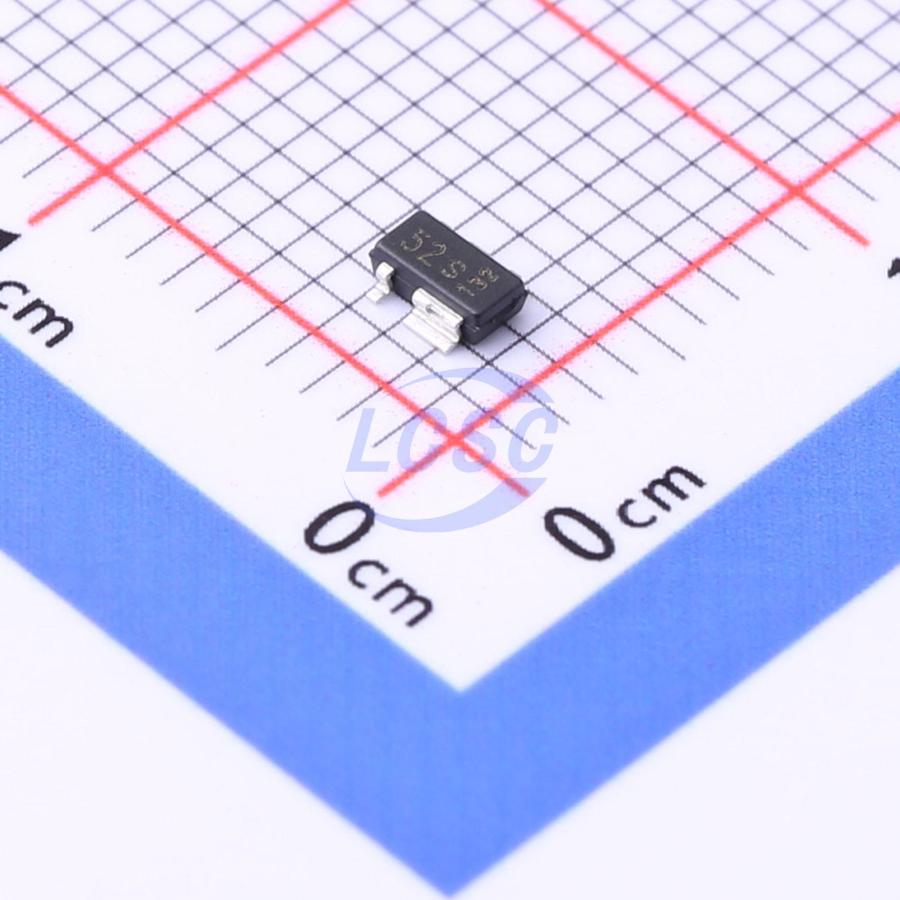

TLE4250-2G
2.5V~36V Positive Adjustable SCT595-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SCT595-5RoHSActive
Low Dropout Voltage Tracking Regulator
- Manufacturer
- Infineon
- Manufacturer part #
- TLE4250-2G
- Store part #
- C976300
- Package / case
- SCT595-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,060 in stock
#C976300
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.86 | ₹77.86 |
| 10+ | ₹62.67 | ₹626.70 |
| 30+ | ₹56.25 | ₹1,687.50 |
| 100+ | ₹48.34 | ₹4,834.00 |
| 500+ | ₹38.71 | ₹19,355.00 |
| 1,000+ | ₹36.37 | ₹36,370.00 |
1 × ₹77.86
₹77.86
excl. GST
₹91.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLE4250-2G
₹77.86 for 1 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 50mA
- Features
- Enable control;Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
The TLE4250-2 is a monolithic integrated low dropout voltage tracker in a tiny SMD package PG-SCT595-5 with excellent thermal resistance. It is designed to supply off-board loads (e.g. sensors) in automotive environment. The IC protects itself in case of overload, overtemperature, reverse polarity as well as output short circuit to battery and ground. Supply voltages up to V₁ = 45 V are regulated to a reference voltage applied at the adjust input “ADJ” with high accuracy. The output is able to drive loads up to 50 mA. In order to reduce the quiescent current to a minimum, the TLE4250-2 can be switched to stand-by mode by setting the adjust/enable input “ADJ/EN” to “low”.
Key features
- 50 mA Output Current Capability
- Tiny SMD-Package PG-SCT595-5 with lowest thermal resistance
- Low Output Tracking Tolerance
- Stable with Small Ceramic Output Capacitor
- Low Dropout Voltage
- Combined Reference / Enable Input
- Low Current Consumption in Stand-by Mode
- Maximum Input Voltage -42 V ≤ V₁ ≤ +45 V
- Reverse Polarity Protection
- Output Short Circuit Proof to Ground and Supply
- Overtemperature Protection
- Temperature Range -40 °C ≤ Tj ≤ 150 °C
- Green Product (RoHS compliant)
- AEC Qualified
