InfineonDatasheet (PDF)

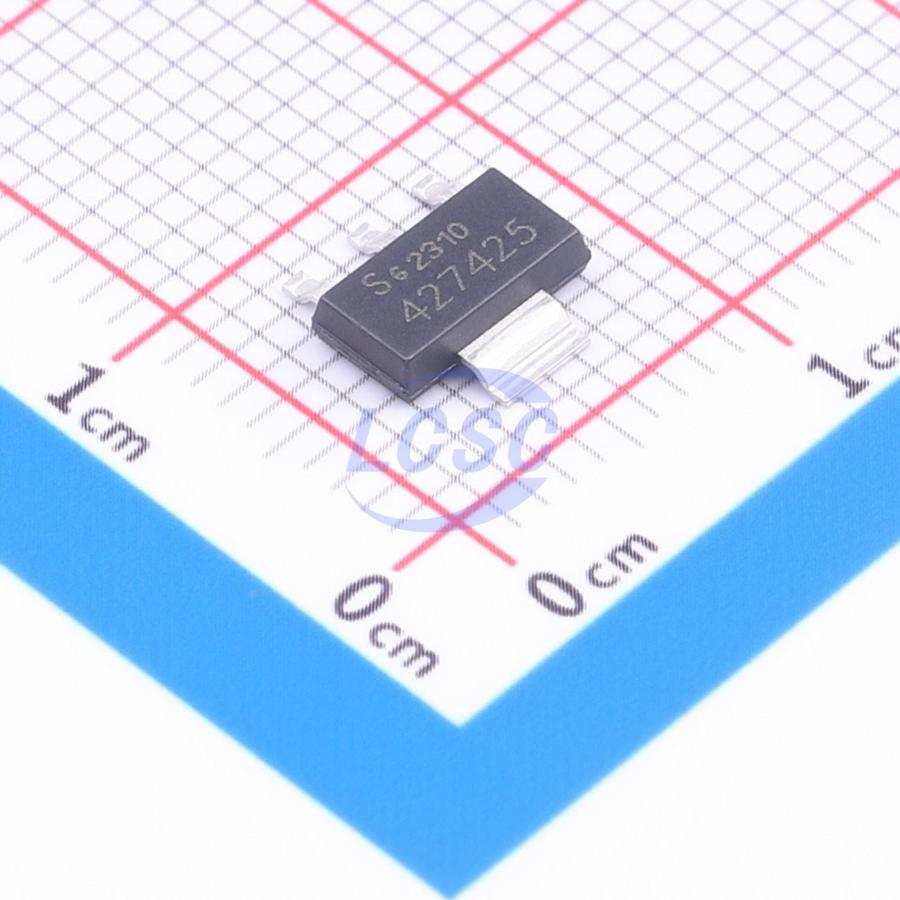

TLE4274GSV25HTMA1
2.5V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- TLE4274GSV25HTMA1
- Store part #
- C3752095
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C3752095
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹257.54 | ₹257.54 |
| 10+ | ₹251.71 | ₹2,517.10 |
| 30+ | ₹247.76 | ₹7,432.80 |
| 100+ | ₹243.60 | ₹24,360.00 |
1 × ₹257.54
₹257.54
excl. GST
₹303.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TLE4274GSV25HTMA1
₹257.54 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 100uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 400mA
- Features
- Short Circuit Protection;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.308 g
Overview
The TLE 4274 / 3.3V;2.5V is a voltage regulator available in a SOT223 and TO252 package. The IC regulates an input voltage up to 40 V to V_Orated = 3.3 V/2.5 V. The maximum output current is 400 mA. The IC is shortcircuit proof and has a shutdown circuit protecting it against overtemperature. The TLE 4274 is also available as 5 V, 8.5 V and 10 V version.
Key features
- Output voltage: 3.3 V/2.5 V ±4%
- Current capability 400 mA
- Very low current consumption
- Short-circuit proof
- Reverse polarity proof
- Suitable for use in automotive electronics
- Green Product (RoHS compliant)
- AEC Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IFX25001MEV25#C3747809Infineon · SOT-223-4 | Infineon | SOT-223-4 | On request | ₹39.43 · 0 in stock | View | |
