InfineonDatasheet (PDF)

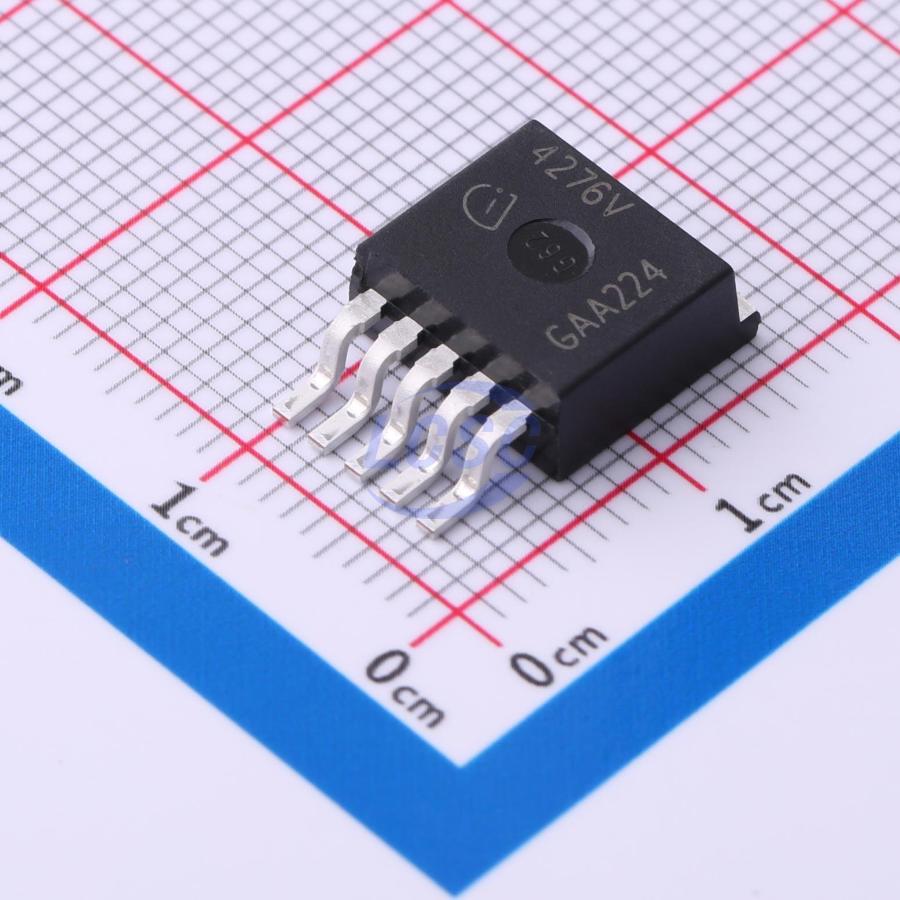

TLE4276GV
2.5V~20V Positive Adjustable TO-263-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-263-5RoHSActive
Low Dropout Voltage Regulator
- Manufacturer
- Infineon
- Manufacturer part #
- TLE4276GV
- Store part #
- C539727
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C539727
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹490.08 | ₹490.08 |
| 10+ | ₹421.83 | ₹4,218.30 |
| 30+ | ₹365.62 | ₹10,968.60 |
| 100+ | ₹324.49 | ₹32,449.00 |
| 500+ | ₹305.55 | ₹1,52,775.00 |
| 1,000+ | ₹297.15 | ₹2,97,150.00 |
1 × ₹490.08
₹490.08
excl. GST
₹578.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
TLE4276GV
₹490.08 for 1 + GST
Specifications
- Output Voltage
- 2.5V~20V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 220uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 400mA
- Features
- Enable control;Short Circuit Protection;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.8 g
Overview
The OPTIREG Linear TLE4276 is a low-drop voltage regulator in a TO package. The IC regulates an input voltage up to 40 V to VQ,nom = 5.0 V (V50), and adjustable voltage (V). The maximum output current is 400 mA. The IC can be switched off via the inhibit input, which causes the current consumption to drop below 10 μA. The IC is short-circuit-proof and includes temperature protection which turns off the device at overtemperature.
Applications
- Automotive applications especially with tight space constraints.
Key features
- 5 V, and variable output voltage
- Output voltage tolerance ≤±4%
- 400 mA current capability
- Low-drop voltage
- Inhibit input
- Very low current consumption
- Short-circuit-proof
- Reverse polarity proof
- Suitable for use in automotive electronics
- Green Product (RoHS compliant)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42764GVATMA1#C5310865Infineon · TO-263-5 | Infineon | TO-263-5 | 11 | ₹299.45 · 11 in stock | View |
 | NCV4276BDSADJR4G#C89269onsemi · D2PAK-5 | onsemi | D2PAK-5 | 607 | ₹223.16 · 607 in stock | View |
| IFX25401TBV#C3750347Infineon · TO-263-5 | Infineon | TO-263-5 | On request | ₹68.78 · 0 in stock | View | |
