InfineonDatasheet (PDF)

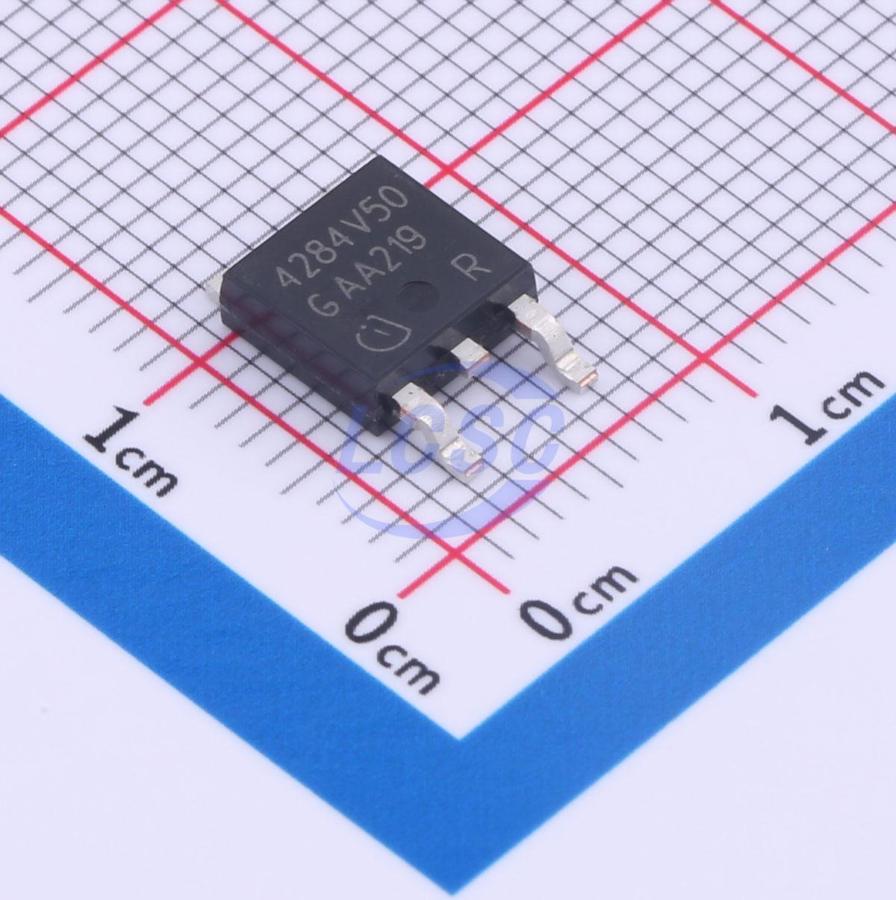

TLE4284D V50
5V Positive Fixed TO-252-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-3RoHSActive
Voltage Regulator
- Manufacturer
- Infineon
- Manufacturer part #
- TLE4284D V50
- Store part #
- C539738
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34 in stock
#C539738
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹328.30 | ₹328.30 |
| 10+ | ₹279.30 | ₹2,793.00 |
| 30+ | ₹248.72 | ₹7,461.60 |
| 100+ | ₹207.53 | ₹20,753.00 |
| 500+ | ₹193.21 | ₹96,605.00 |
| 1,000+ | ₹187.14 | ₹1,87,140.00 |
1 × ₹328.30
₹328.30
excl. GST
₹387.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLE4284D V50
₹328.30 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 800uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.47 g
Overview
A monolithic integrated NPN type voltage regulator that can supply loads up to 1.0 A. The chip is housed in a surface mounted PG - TO252 - 3 - 11 package (DPAK). It is designed to supply microprocessor systems or other loads under the severe conditions of automotive applications and therefore it is equipped with additional protection against overload, short circuit and overtemperature. An input voltage V₁ in the range of (V₀ + VDR) < V₁ < 40 V is regulated to V₀. The dropout voltage VDR ranges from 1.1 V to 1.4 V depending on the load current level. The device operates in the temperature range of Tj = -40 to 150 °C.
Key features
- Adjustable output voltage or 1.5V, 1.8V, 2.6V, 3.3V, 5.0V output voltage
- 1.0 A output current
- Low dropout voltage, typ. 1 V
- Short circuit protection
- Overtemperature protection
- Wide operating range up to 40 V
- Wide temperature range of Tj = -40 to 150 °C
- Suitable for use in automotive electronics
- Green Product (RoHS compliant)
- AEC Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD7612D50UA2#C2978419Mingda Microelectronics · TO-252-2L | Mingda Microelectronics | TO-252-2L | 1,485 | ₹46.68 · 1,485 in stock | View |
 | JTD78M05#C42443421JTD · TO-252-3 | JTD | TO-252-3 | 2,145 | ₹12.30 · 2,145 in stock | View |
 | HR78M05B#C55349164R+O · TO-252 | R+O | TO-252 | 19,520 | ₹17.32 · 19,520 in stock | View |
 | SSP7903P50JR#C5199837Siproin · TO-252 | Siproin | TO-252 | 3,970 | ₹34.25 · 3,970 in stock | View |
 | MC7805BDTG#C83632onsemi · DPAK | onsemi | DPAK | 6,615 | ₹40.59 · 6,615 in stock | View |
