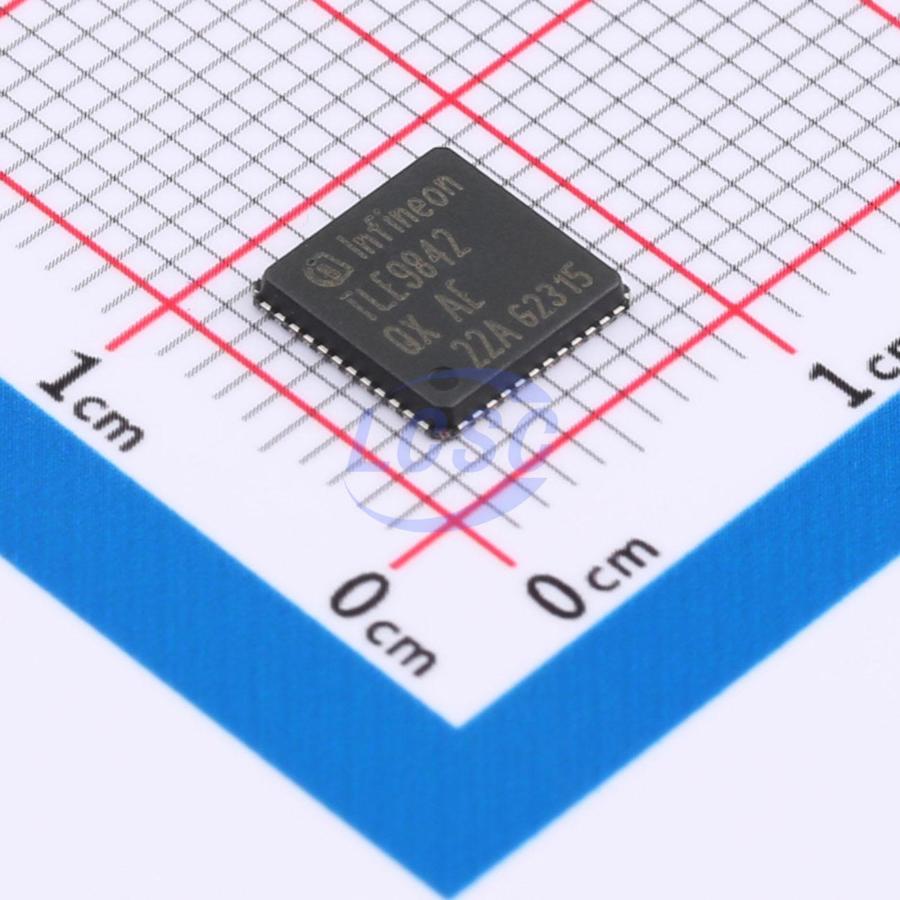

TLE9842QX
ARM Cortex-M0 32 Bit 25MHz VQFN-48-EP(7x7) Application Specific Microcontrollers RoHS
VQFN-48-EP(7x7)ROHS3 CompliantActive
Microcontroller with LiN and Power Switches for Automotive Applications
- Manufacturer
- Infineon
- Manufacturer part #
- TLE9842QX
- Store part #
- C540171
- Package / case
- VQFN-48-EP(7x7)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C540171
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹413.24 | ₹413.24 |
| 10+ | ₹352.41 | ₹3,524.10 |
| 30+ | ₹314.16 | ₹9,424.80 |
| 100+ | ₹275.28 | ₹27,528.00 |
| 500+ | ₹257.68 | ₹1,28,840.00 |
| 1,000+ | ₹249.86 | ₹2,49,860.00 |
1 × ₹413.24
₹413.24
excl. GST
₹487.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLE9842QX
₹413.24 for 1 + GST
Specifications
- Voltage - Supply
- 5.5V~28V
- ADC (Bit)
- 10bit;8bit
- Operating Temperature
- -40℃~+150℃
- EEPROM
- 4KB
- Program Storage Size
- 36KB
- CPU Core
- ARM Cortex-M0
- Core Size
- 32 Bit
- CPU Maximum Speed
- 25MHz
- Oscillator Type
- Built-in+External
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- 3A991A2
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Key features
- 32-bit ARM Cortex-M0 Core – up to 25 MHz clock frequency – one clock per machine cycle architecture – single cycle multiplier
- On-chip memory – 36 KB Flash (including EEPROM) – 4 KB EEPROM (emulated in Flash) VQFN-48-31 – 768 bytes 100 Time Programmable Memory (100TP) – 2 KB RAM – Boot ROM for startup firmware and Flash routines
- On-chip OSC
- 2 Low-Side Switches incl. PWM functionality, can be used e.g. as relay driver
- 1 High-Side Switch with cyclic sense option and PWM functionality, e.g. for supplying LEDs or switch panels (min. 150 mA)
- 4 High Voltage Monitor Input pins for wake-up and with cyclic sense with analog measurement option
- 10 General-purpose I/O Ports (GPIO)
- 6 Analog input Ports
- 10-Bit A/D Converter with 6 analog inputs + VBAT_SENSE + VS + 4 high voltage monitoring inputs
