InfineonDatasheet (PDF)

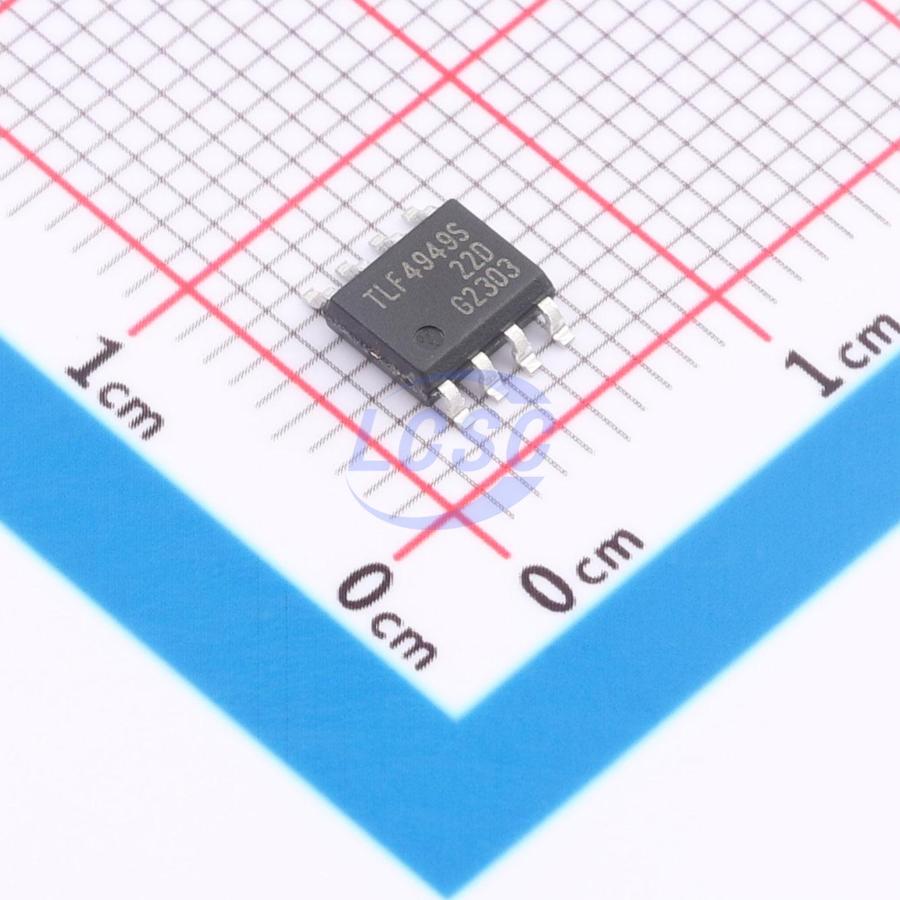

TLF4949SJ
5V Positive Fixed DSO-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DSO-8ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- TLF4949SJ
- Store part #
- C540210
- Package / case
- DSO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C540210
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.38 | ₹48.38 |
| 10+ | ₹47.10 | ₹471.00 |
| 30+ | ₹46.24 | ₹1,387.20 |
| 100+ | ₹45.59 | ₹4,559.00 |
1 × ₹48.38
₹48.38
excl. GST
₹57.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLF4949SJ
₹48.38 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 300uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 28V
- Features
- Reset function;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.159 g
Overview
The TLF4949 is a monolithic integrated 5V voltage regulator with a very low dropout output and additional functions as undervoltage reset with power-on reset delay and input voltage sense. It is designed to supply microcontroller controlled systems especially in automotive applications.
Key features
- Operating DC Supply Voltage Range 5 V to 28 V
- Transient Supply Voltage up to 40 V
- Extremely low Quiescent Current in Standby Mode
- High Precision Standby Output Voltage 5 V ±1 %
- Output Current Capability up to 100 mA
- Very low Dropout Voltage less than 0.5 V
- Reset Circuit sensing the Output Voltage
- Programmable Reset Pulse Delay with External Capacitor
- Voltage Sense Comparator
- Thermal Shutdown and Short Circuit Protections
- Suitable for Use in Automotive Electronics
- Green Product (RoHS)
- AEC Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L4979D013TR#C361018ST · SO-8 | ST | SO-8 | 2,416 | ₹229.70 · 2,416 in stock | View |
 | NCV8501D50R2G#C904683onsemi · SOIC-8 | onsemi | SOIC-8 | 104 | ₹370.15 · 104 in stock | View |
 | MIC5239-5.0YM-TR#C628183MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 10 | ₹696.71 · 10 in stock | View |
 | L4949EDTR-E#C262890ST · SO-8 | ST | SO-8 | On request | ₹99.53 · 0 in stock | View |
| MG78L05P8#C54279841Megain · SOP8 | Megain | SOP8 | 7,900 | ₹4.04 · 7,900 in stock | View | |
