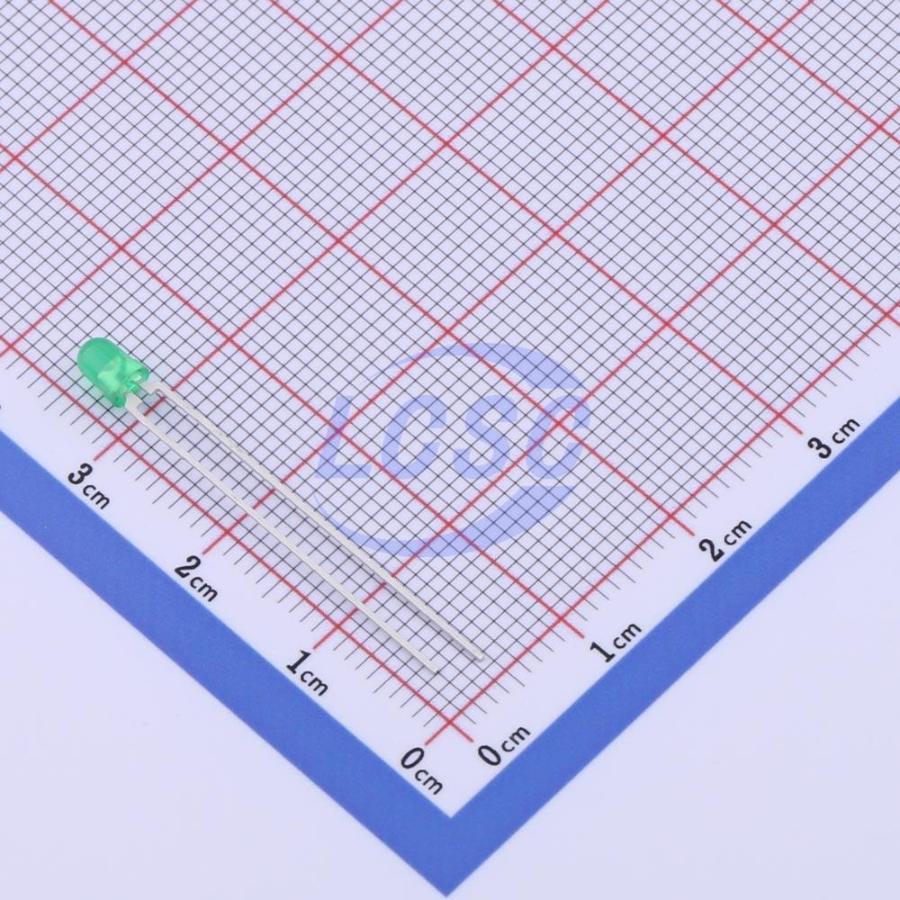

TLHG4405
Green 565nm LED Indication - Discrete 3V Through Hole,D=3.2mm
LED GREEN TH
- Manufacturer
- VISHAY
- Manufacturer part #
- TLHG4405
- Store part #
- C3001653
- Package / case
- Through Hole,D=3.2mm
- Category
- LED Indication - Discrete
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
815 in stock
#C3001653
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.68 | ₹193.40 |
| 50+ | ₹29.93 | ₹1,496.50 |
| 150+ | ₹26.17 | ₹3,925.50 |
| 1,000+ | ₹21.50 | ₹21,500.00 |
| 2,000+ | ₹19.41 | ₹38,820.00 |
| 5,000+ | ₹18.15 | ₹90,750.00 |
5 × ₹38.68
₹193.40
excl. GST
₹228.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
TLHG4405
₹193.40 for 5 + GST
Specifications
- Peak Wavelength
- 565nm
- Luminous Intensity
- 15mcd
- Viewing Angle
- 60°
- Illumination Color
- Yellow Green
- Forward Current
- 20mA
- Operating Temperature
- -40℃~+100℃
- Voltage - Forward(Vf)
- 3V
- Lamp Holder Type
- 3.2mm Round Lens
- Diode Configuration
- Discrete Diode
- Wavelength
- 562nm~575nm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
The TLH.44.. series was developed for standard applications like general indicating and lighting purposes. It is housed in a 3mm tinted diffused plastic package. The wide viewing angle of these devices provides a high on- off contrast. Several selection types with different luminous intensities are offered. All LEDs are categorized in luminous intensity groups. The green and yellow LEDs are categorized additionally in wavelength groups. That allows users to assemble LEDs with uniform appearance.
Applications
- Status lights
- Off / on indicator
- Background illumination
- Readout lights
- Maintenance lights
- Legend light
Key features
- Standard Ø 3 mm (T-1) package
- Small mechanical tolerances
- Suitable for DC and high peak current
- Wide viewing angle
- Luminous intensity categorized
- Yellow and green color categorized
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLHG4400#C3001646VISHAY · Through Hole,D=3.2mm | VISHAY | Through Hole,D=3.2mm | 1,140 | ₹37.71 · 1,140 in stock | View |
 | TLLG4401#C511368VISHAY · Through Hole,D=3.2mm | VISHAY | Through Hole,D=3.2mm | 40 | ₹56.72 · 40 in stock | View |
 | TJ-L234SSXHKMCGSFLC7K-A5#C331043TOGIALED · Through Hole,D=3.2mm | TOGIALED | Through Hole,D=3.2mm | 390 | ₹4.95 · 390 in stock | View |
 | TJ-L234FGHKMCGSFLC7K-A5#C440397TOGIALED · Through Hole,D=3.2mm | TOGIALED | Through Hole,D=3.2mm | 6,490 | ₹5.69 · 6,490 in stock | View |
 | DY-514YGD/SN(HF)#C459131TONYU · Through Hole,D=3.2mm | TONYU | Through Hole,D=3.2mm | 140 | ₹5.04 · 140 in stock | View |
