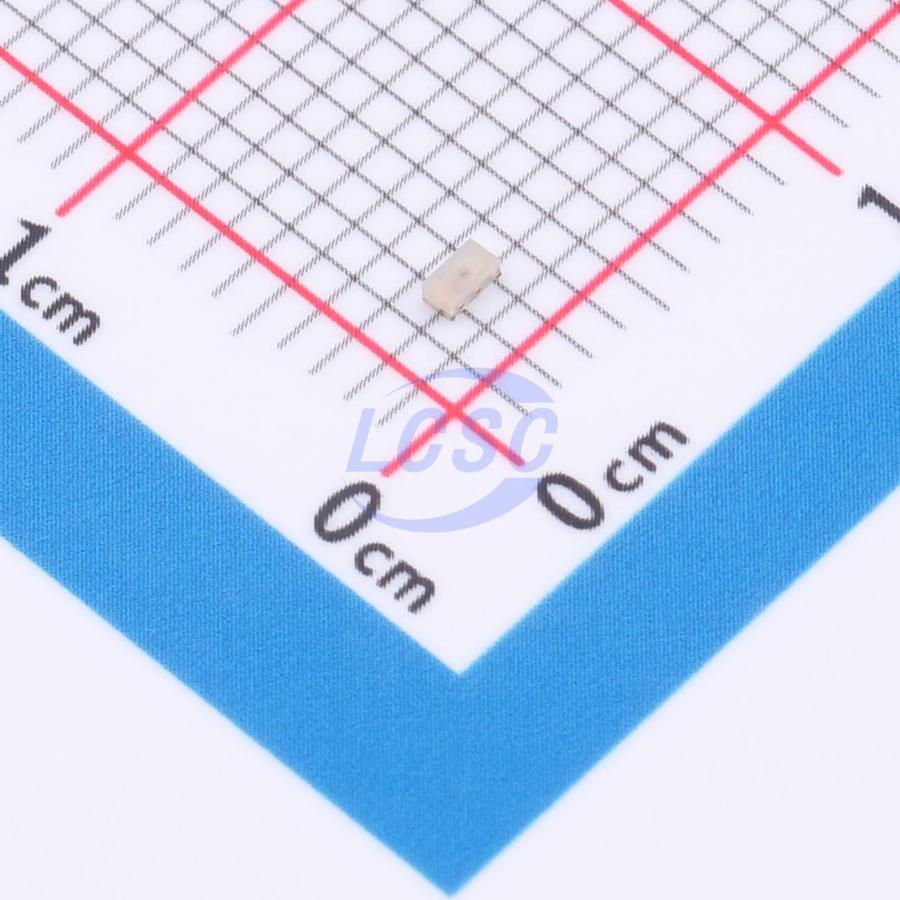

TLMO1000-GS15
Orange 610nm LED Indication - Discrete 1.8V 0603
LED ORANGE 0603 SMD
- Manufacturer
- VISHAY
- Manufacturer part #
- TLMO1000-GS15
- Store part #
- C20430900
- Package / case
- 0603
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,117 in stock
#C20430900
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.61 | ₹63.61 |
| 10+ | ₹51.24 | ₹512.40 |
| 30+ | ₹46.03 | ₹1,380.90 |
| 100+ | ₹39.31 | ₹3,931.00 |
| 500+ | ₹36.26 | ₹18,130.00 |
| 1,000+ | ₹34.53 | ₹34,530.00 |
1 × ₹63.61
₹63.61
excl. GST
₹75.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TLMO1000-GS15
₹63.61 for 1 + GST
Specifications
- Forward Current
- 2mA
- Operating Temperature
- -40℃~+100℃
- Voltage - Forward(Vf)
- 1.8V
- Diode Configuration
- Discrete Diode
- ESD Withstand Voltage
- 2000V
- Peak Wavelength
- 610nm
- Luminous Intensity
- 7.5mcd
- Viewing Angle
- 160°
- Illumination Color
- Orange
- Lamp Holder Type
- 1.6mm x 0.8mm square LED
- Wavelength
- 600nm~609nm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The new 0603 LED series have been designed in the smallest SMD package. This innovative 0603 LED technology opens the way to - Smaller products of higher performance - More design in flexibility - Enhanced applications The 0603 LED is an obvious solution for small-scale, high power products that are expected to work reliability in an arduous environment.
Applications
- Backlight keypads
- Navigation systems
- Cellular phone displays
- Displays for industrial control systems
- Automotive features
- Miniaturized color effects
- Traffic displays
Key features
- Smallest SMD package 0603 with exceptional GRADE brightness 1.6 mm x 0.8 mm x 0.6 mm (L x W x H) Pb-free
- High reliability lead frame based
- Temperature range -40 °C to +100 °C
- Footprint compatible to 0603 chipled RoHS
- Wavelength 633 nm (red), 606 nm (orange), 587 nm (yellow)
- AllnGaP technology
- Compatible to IR reflow soldering [5-2008]
- Viewing angle: Extremely wide 160°
- Grouping parameter: luminous intensity, wavelength
- Available in 8 mm tape
- Preconditioning according to JEDEC level 2
- AEC-Q101 qualified
