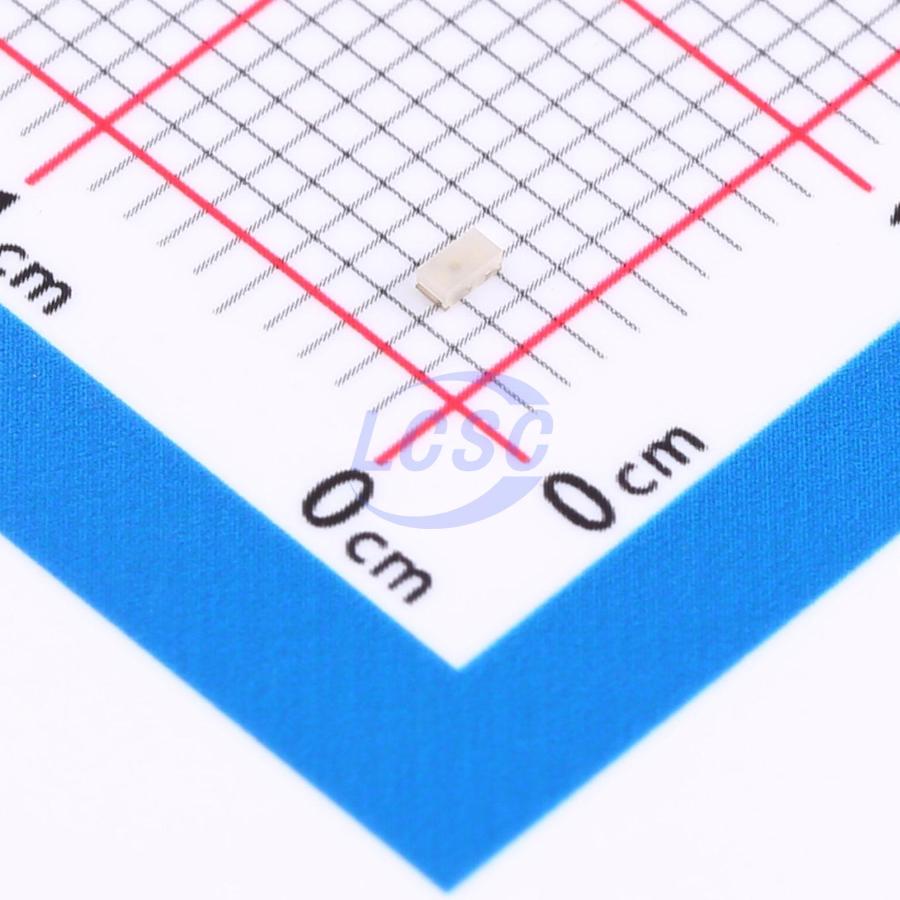

TLMY1000-GS15
Yellow 591nm LED Indication - Discrete 1.8V~2.6V 0603
LED YELLOW 0603 SMD
- Manufacturer
- VISHAY
- Manufacturer part #
- TLMY1000-GS15
- Store part #
- C20433348
- Package / case
- 0603
- Category
- LED Indication - Discrete
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,330 in stock
#C20433348
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.77 | ₹138.85 |
| 50+ | ₹21.63 | ₹1,081.50 |
| 150+ | ₹19.01 | ₹2,851.50 |
| 500+ | ₹15.73 | ₹7,865.00 |
| 2,500+ | ₹14.26 | ₹35,650.00 |
| 5,000+ | ₹13.39 | ₹66,950.00 |
5 × ₹27.77
₹138.85
excl. GST
₹163.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TLMY1000-GS15
₹138.85 for 5 + GST
Specifications
- Peak Wavelength
- 591nm
- Luminous Intensity
- 7.5mcd
- Viewing Angle
- 160°
- Forward Current
- 2mA
- Illumination Color
- Yellow
- Lamp Holder Type
- 1.6mm x 0.8mm square LED
- Operating Temperature
- -40℃~+100℃
- Voltage - Forward(Vf)
- 1.8V~2.6V
- Diode Configuration
- Discrete Diode
- Wavelength
- 580nm~595nm
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
The new 0603 LED series have been designed in the smallest SMD package. This innovative 0603 LED technology opens the way to • Smaller products of higher performance • More design in flexibility • Enhanced applications The 0603 LED is an obvious solution for small-scale, high power products that are expected to work reliability in an arduous environment.
Applications
- Backlight keypads
- Navigation systems
- Cellular phone displays
- Displays for industrial control systems
- Automotive features
- Miniaturized color effects
- Traffic displays
Key features
- Smallest SMD package 0603 with exceptional GRADE brightness 1.6 mm x 0.8 mm x 0.6 mm (L×W×H) Pb-free
- High reliability lead frame based
- Temperature range -40 °C to +100 °C
- Footprint compatible to 0603 chipled RoHS
- Wavelength 633 nm (red), 606 nm (orange), 587 nm (yellow) HALOGEN FREE
- AllnGaP technology GREEN
- Compatible to IR reflow soldering [5-2008)
- Viewing angle: Extremely wide 160°
- Grouping parameter: luminous intensity, wavelength
- Available in 8 mm tape
- Preconditioning according to JEDEC level 2
- AEC-Q101 qualified
