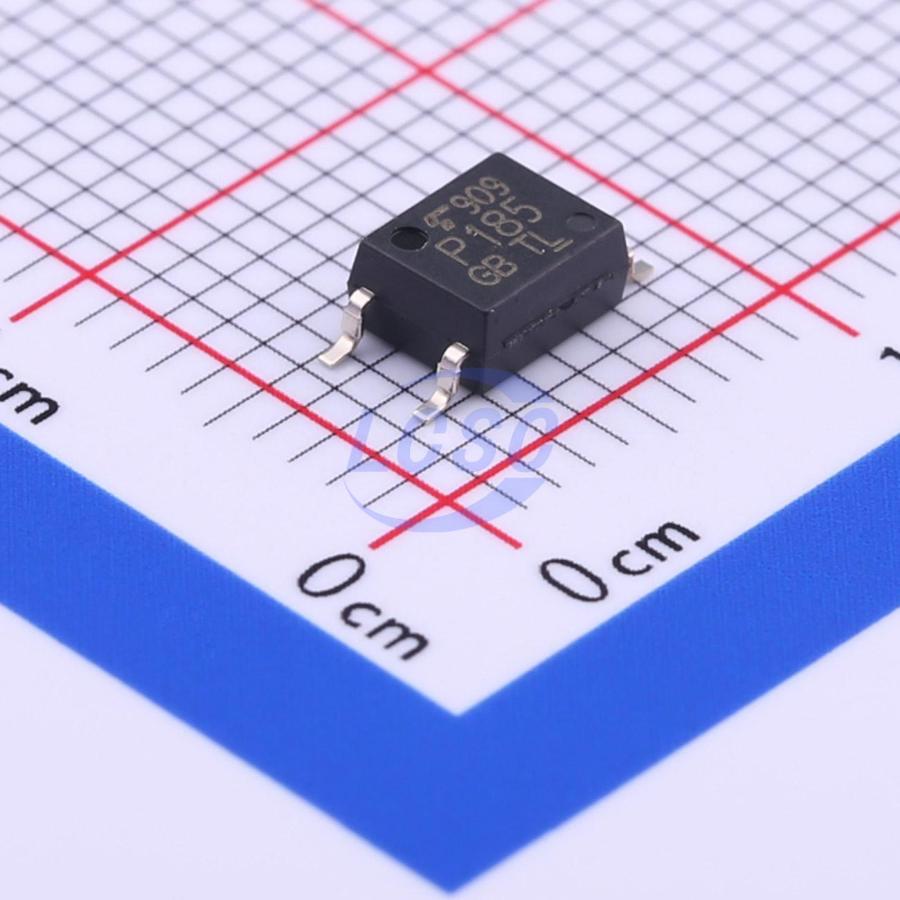

TLP185(GB-TPL,SE
50mA 300mV@2.4mA,8mA 80V 5V 1.25V DC SOP-4-2.54mm Transistor, Photovoltaic Output Optoisolators RoHS
Photocouplers GaAs Infrared LED & Photo Transistor
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TLP185(GB-TPL,SE
- Store part #
- C7240
- Package / case
- SOP-4-2.54mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,24,460 in stock
#C7240
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.61 | ₹73.05 |
| 50+ | ₹11.54 | ₹577.00 |
| 150+ | ₹9.95 | ₹1,492.50 |
| 500+ | ₹8.65 | ₹4,325.00 |
| 3,000+ | ₹8.26 | ₹24,780.00 |
| 6,000+ | ₹7.95 | ₹47,700.00 |
5 × ₹14.61
₹73.05
excl. GST
₹86.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLP185(GB-TPL,SE
₹73.05 for 5 + GST
Specifications
- Rise time
- 2us
- Output Current
- 50mA
- Fall time
- 3us
- Vce Saturation(VCE(sat))
- 300mV@2.4mA,8mA
- Operating Temperature
- -55℃~+110℃
- Load Voltage
- 80V
- Reverse Voltage
- 5V
- Current transfer ratio
- 600%;50%
- Voltage - Forward(Vf)
- 1.25V
- Forward Current(If)
- 50mA
- Number of Channels
- 1
- Total Power Dissipation(Pd)
- 200mW
- Output Type
- Phototransistor
- Input type
- DC
- Isolation Voltage(Vrms)
- 3.75kV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2a
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The TLP185(SE consist of a photo transistor optically coupled to gallium arsenide infrared emitting diode. The TLP185(SE photocoupler is housed in the very small and thin SO6 package. Since TLP185(SE is smaller than DIP package, it's suitable for high-density surface mounting application such as programmable controllers.
Applications
- Office Equipment
- Programmable Logic Controllers (PLCs)
- AC Adapters
- I/O Interface Boards
Key features
- Collector-emitter voltage: 80 V (min)
- Current transfer ratio: 50% (min) Rank GB: 100% (min)
- Isolation voltage: 3750 Vrms (min)
- Operating temperature: -55 to 110 °C
- Safety standards UL-approved: UL1577, File No.E67349 cUL-approved: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN60747-5-5 CQC-approved: GB4943.1, GB8898 Thailand Factory
