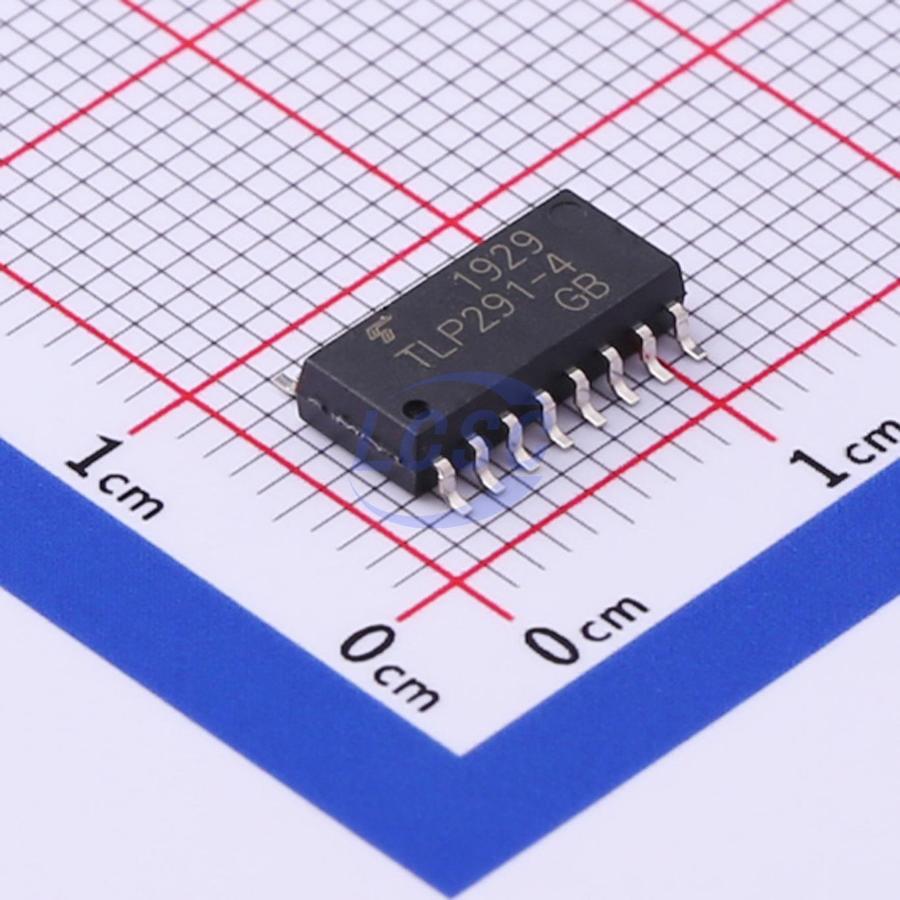

TLP291-4(GB-TP,E)
50mA 400mV@2.4mA,8mA 80V 5V 1.2V DC SOP-16-4.4mm Transistor, Photovoltaic Output Optoisolators RoHS
Photocouplers GaAs Infrared LED & PhotoTransistor
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TLP291-4(GB-TP,E)
- Store part #
- C60900
- Package / case
- SOP-16-4.4mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,000 in stock
#C60900
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.53 | ₹83.53 |
| 10+ | ₹72.22 | ₹722.20 |
| 30+ | ₹64.18 | ₹1,925.40 |
| 100+ | ₹57.43 | ₹5,743.00 |
| 500+ | ₹39.81 | ₹19,905.00 |
| 1,000+ | ₹38.51 | ₹38,510.00 |
1 × ₹83.53
₹83.53
excl. GST
₹98.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TLP291-4(GB-TP,E)
₹83.53 for 1 + GST
Specifications
- Rise time
- 2us
- Output Current
- 50mA
- Fall time
- 3us
- Vce Saturation(VCE(sat))
- 400mV@2.4mA,8mA
- Operating Temperature
- -55℃~+110℃
- Load Voltage
- 80V
- Reverse Voltage
- 5V
- Current transfer ratio
- 400%;50%
- Voltage - Forward(Vf)
- 1.2V
- Forward Current(If)
- 50mA
- Number of Channels
- 4
- Total Power Dissipation(Pd)
- 170mW
- Output Type
- Phototransistor
- Input type
- DC
- Isolation Voltage(Vrms)
- 2.5kV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2a
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.403 g
Overview
The TLP291-4 consists of phototransistors optically coupled to gallium arsenide infrared emitting diodes. The TLP291-4 Photocoupler is housed in the very small and thin SO16 package. Since the TLP291-4 is guaranteed over a wide operating temperature range (Ta = -55 to 110°C), it is suitable for high-density surface mount applications such as programmable controllers.
Applications
- Programmable Logic Controllers (PLCs)
- Switching Power Supplies
- Simplex/Multiplex Data Transmission
Key features
- Collector-emitter voltage: 80 V (min)
- Current transfer ratio: 50% (min) GB Rank: 100% (min)
- Isolation voltage: 2500 Vrms (min)
- Operating temperature: -55 to 110°C
- Safety standards UL-approved UL1577 File No.E67349 cUL-approved CSA Component Acceptance Service No.5A File No.E67349 VDE approved EN60747-5-5 Certificate No. 40009347
