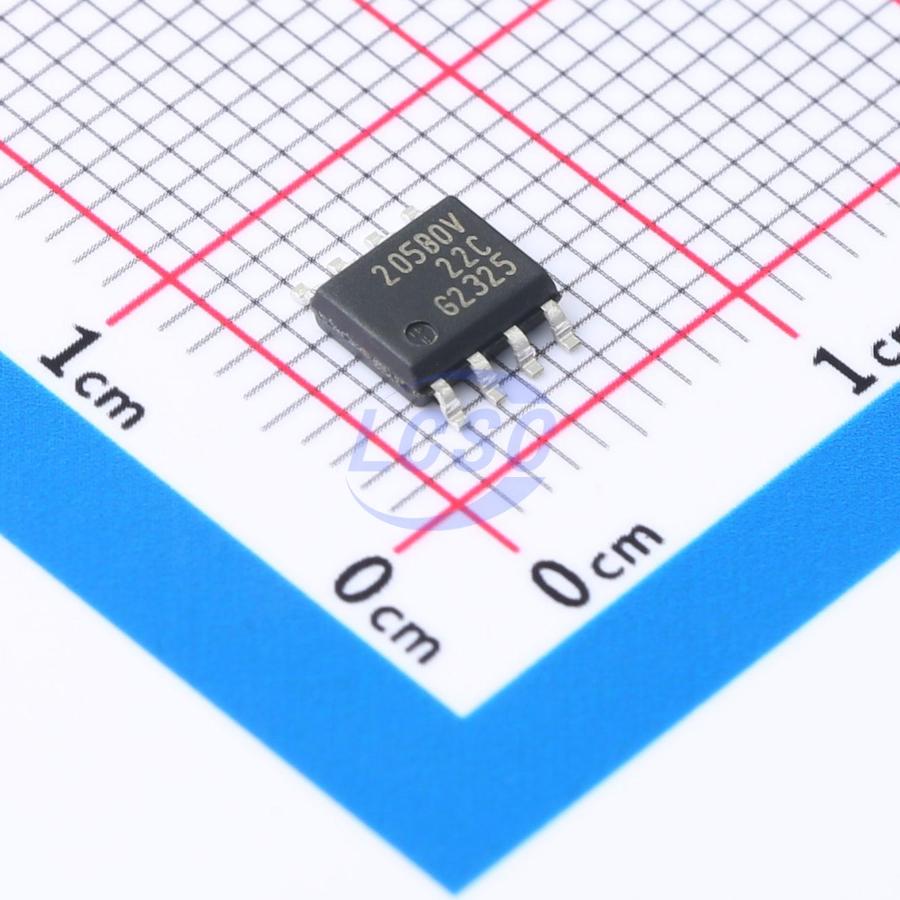

TLS205B0EJVXUMA1
1.22V~20V Positive Adjustable DSO-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DSO-8ROHS3 CompliantActive
Linear Voltage Post Regulator, Low Dropout, Low Noise, Adjustable, 500 mA
- Manufacturer
- Infineon
- Manufacturer part #
- TLS205B0EJVXUMA1
- Store part #
- C3751320
- Package / case
- DSO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C3751320
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹213.06 | ₹213.06 |
| 10+ | ₹180.13 | ₹1,801.30 |
| 30+ | ₹159.63 | ₹4,788.90 |
| 100+ | ₹138.70 | ₹13,870.00 |
| 500+ | ₹129.10 | ₹64,550.00 |
| 1,000+ | ₹124.96 | ₹1,24,960.00 |
1 × ₹213.06
₹213.06
excl. GST
₹251.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLS205B0EJVXUMA1
₹213.06 for 1 + GST
Specifications
- Output Voltage
- 1.22V~20V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Output Type
- Adjustable
- Features
- Enable control;Reverse polarity voltage protection;Reverse-polarity current protection;Over Current Protection;Thermal shutdown;Noise bypass terminal
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
The TLS205B0 is a micropower, low noise, low dropout voltage regulator. The device is capable of supplying an output current of 500 mA with a dropout voltage of 320 mV. Designed for use in battery-powered systems, the low quiescent current of 30 μA makes it an ideal choice.
Key features
- Low Noise down to 24 μV_RMS (BW = 10 Hz to 100 kHz)
- 500 mA Current Capability
- Low Quiescent Current: 30 μA
- Wide Input Voltage Range up to 20 V
- Internal circuitry working down to 2.3 V
- 2.5% Output Voltage Accuracy (over full temperature and load range)
- Low Dropout Voltage: 320 mV
- Very low Shutdown Current: <1 μA
- No Protection Diodes Needed
- Fixed Output Voltage: 3.3 V
- Adjustable Version with Output from 1.22 V to 20 V
- Stable with ≥3.3 μF Output Capacitor
- Stable with Aluminium, Tantalum or Ceramic Output Capacitors
- Reverse Polarity Protection
- No Reverse Current
- Overcurrent and Overtemperature Protected
- PG-DSO-8 Exposed Pad and PG-TSON-10 Exposed Pad Package
- Suitable for Use in Automotive Electronics as Post Regulator
- Green Product (RoHS compliant)
- AEC Qualified
