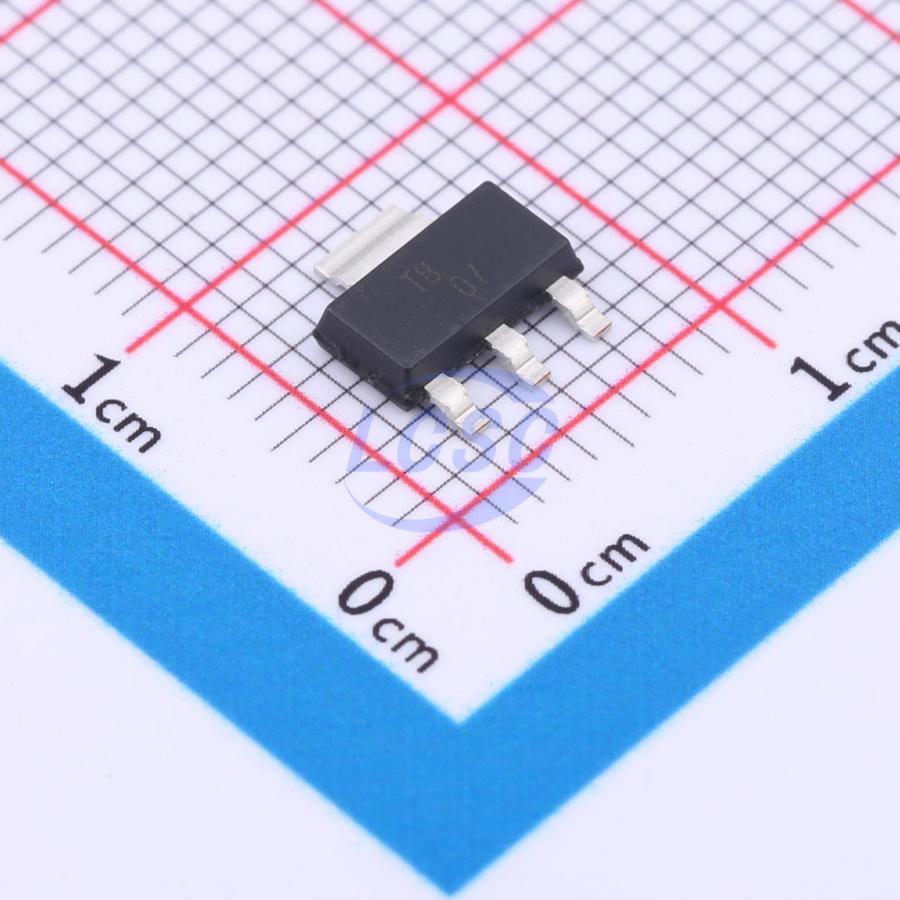

TLV1117-25IDCYR
Linear Voltage Regulator IC Positive Fixed 1 Output 800mA SOT-223-4
SOT-223-4ROHS3 CompliantActive
800mA 15V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- TLV1117-25IDCYR
- Store part #
- C544572
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
242 in stock
#C544572
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.63 | ₹60.63 |
| 10+ | ₹48.02 | ₹480.20 |
| 30+ | ₹41.73 | ₹1,251.90 |
| 100+ | ₹36.29 | ₹3,629.00 |
| 500+ | ₹34.77 | ₹17,385.00 |
| 1,000+ | ₹33.91 | ₹33,910.00 |
1 × ₹60.63
₹60.63
excl. GST
₹71.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV1117-25IDCYR
₹60.63 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 65uA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 800mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.167 g
Overview
TLV1117 is a positive low-dropout regulator capable of providing up to 800 mA of output current. The device is available in 1.5V, 1.8V, 2.5V, 3.3V, 5V, and adjustable output voltage options. All internal circuitry is designed to operate with an input/output differential as low as 1V. The maximum rated dropout voltage is 1.3V at 800 mA, which decreases at lower load currents.
Applications
- Electronic point-of-sale terminals
- Medical, healthcare, and fitness applications
- Printers
- Appliances and white goods
- TV set-top boxes
Key features
- Output voltage options: 1.5V, 1.8V, 2.5V, 3.3V, 5V, and adjustable
- Output current: 800mA
- Dropout voltage specified at multiple current levels
- Line regulation (max): 0.2%
- Load regulation (max): 0.4%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TLV1117-25IDCY#C2866219TI · SOT-223-4 | TI | SOT-223-4 | 100 | ₹73.72 · 100 in stock | View | |
 | LD1117AG-25-AA3-A-R#C71123UTC · SOT-223-4 | UTC | SOT-223-4 | 1,570 | ₹9.58 · 1,570 in stock | View |
 | JTD1117C(1A)-2.5V#C42443436JTD · SOT-223 | JTD | SOT-223 | 2,400 | ₹4.86 · 2,400 in stock | View |
 | AMS1117-2.5#C347221UMW · SOT-223 | UMW | SOT-223 | 43,270 | ₹6.52 · 43,270 in stock | View |
 | LD1117-2.5#C347228UMW · SOT-223 | UMW | SOT-223 | 11,020 | ₹6.69 · 11,020 in stock | View |
